23.8 Inch 4K 3840x2160 LCD Display eDP IPS LCD Module

23.8 Inch 4k Display Overview

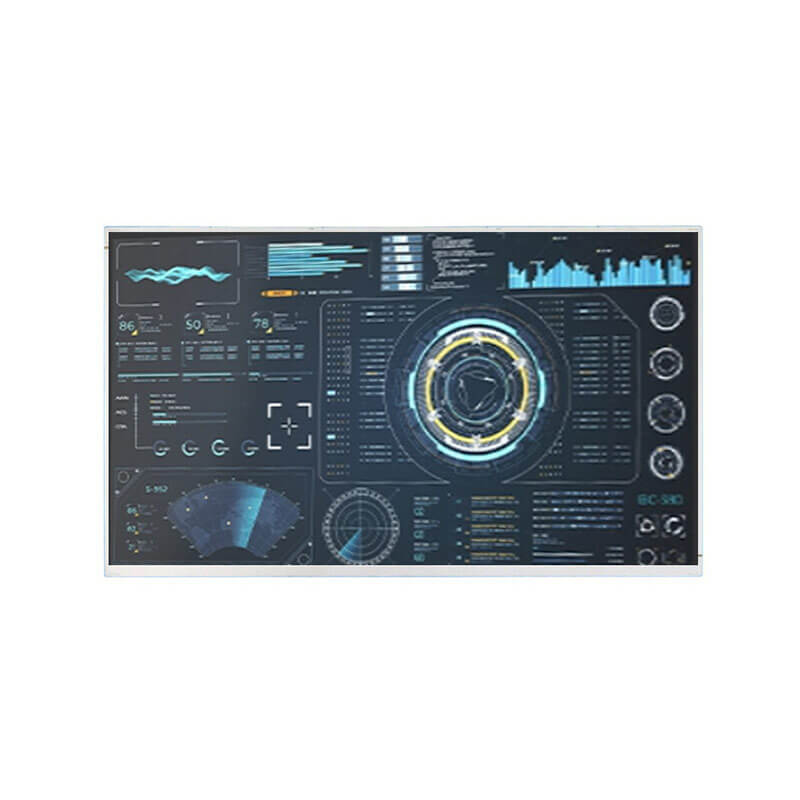

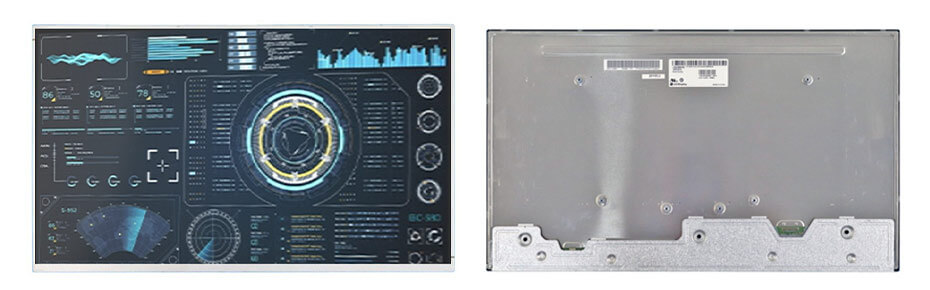

LM238WR2-SPD1 is a 23.8 inch diagonal a-Si TFT-LCD display screen product, with an incorporated WLED lighting system, without backlight driver, without touch screen.LM238WR2-SPD1 supports display 3840(RGB)×2160 (UHD) with aspect ratio of 16:9 (W:H), whose pixels are arranged in RGB Vertical Stripe. As for mechanical detail, it features active area of 527.04(W)×296.46(H) mm, outline size of 545(W)×317.4(H)×12.7(D) mm, viewing area size of 530.2(W)×299.6(H) mm, with surface treament of Antiglare, Hard coating (3H), net weight of 1.73/1.82Kgs (Typ./Max.). As a IPS, Normally Black, Transmissive LCM product, LM238WR2-SPD1 can provides 250 cd/m² display brightness 1000:1 transimissive contrast ratio, 89/89/89/89 (Typ.)(CR≥10) (L/R/U/D) viewing angle, best view direction on Symmetry , and response time of 14 (Typ.)(G to G) ms. Gray scale or the brightness of the sub-pixel is determined with a 8-bit + Hi-FRC gray scale signal for each dot, thus presenting a palette of 1.07B colors, also with performance of color gamut 100% (sRGB). This product adopted 16S4P WLED as it's backlight systerm which was placed as Edge light type and have a working life time of 30K hours, external backlight driver is additionally needed. LM238WR2-SPD1 utilizes eDP (4 Lanes) as it's signal inputting systerm, which connected by 30 pins Connector with power supply voltage of 10.0V (Typ.). It's typical vertical frame rate (Fv) is 60Hz.

More 23.8 Inch 4k Display For Reference
LM238WR2-SPD1 (LCM, 3840x2160, eDP, 250nits, 0~50°C, 545x317.4mm)
LM238WR2-SPE1 (LCM, 3840x2160, eDP, 540nits, 0~50°C, 544.7x328.2mm)
ET238UH01-X (LCM, 3840x2160, eDP, 600nits, -40~50°C, 545x323.4mm)
LM238WR2-SPE2 (LCM, 3840x2160, eDP, 540nits, 0~50°C, 544.7x328.2mm)
ET238UH02-R (LCM, 3840x2160, eDP, 1200nits, 0~50°C, 550.46x325.04mm)
P2380UHF1MA00 (LCM, 3840x2160, eDP, 1300nits, -20~70°C, 549x323.4mm)
