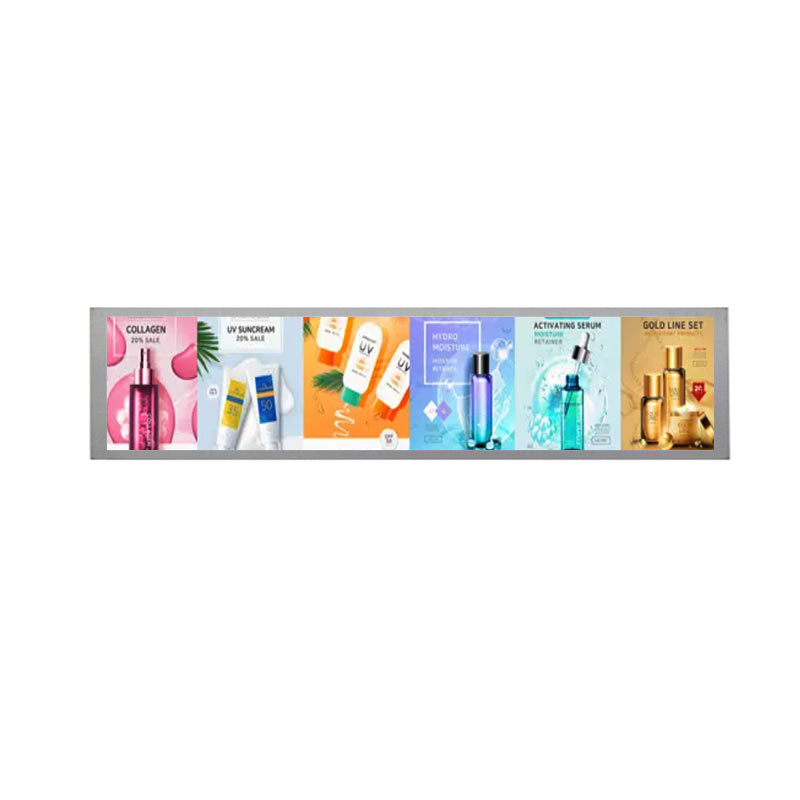

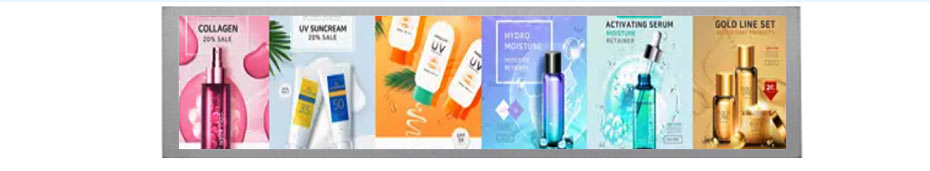

23.8 Inch Stretched Bar Display Overview

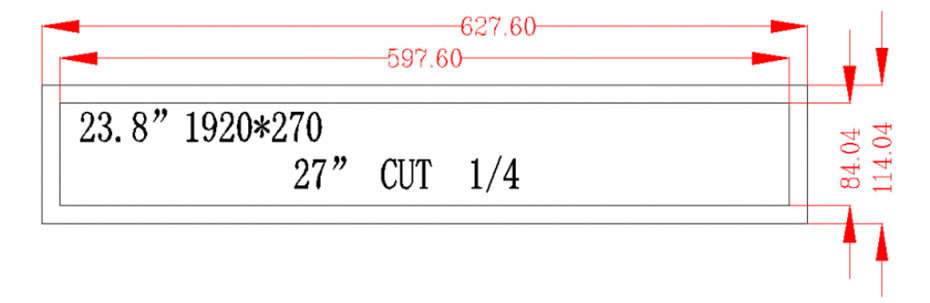

ET238BA01-HT is a 23.8-inch diagonal stretched bar TFT-LCD display with a transmissive IPS panel, designed for high-brightness wide-format applications. It features a 1920 × 270 resolution, providing crisp visuals across its elongated screen. The display has an active area of 597.6 (W) × 84.04 (H) mm and an outline dimension of 627.6 (W) × 114.04 (H) mm, ideal for digital signage, industrial dashboards, and information bars. ET238BA01-HT uses an LVDS interface and delivers a typical brightness of 500 cd/m². With wide viewing angles of 89° in all directions (L/R/U/D), it ensures consistent color and contrast. The display operates from 0 to 50°C and can be stored between –20 to 70°C, and it supports touch functionality for interactive use.
YOURITECH. Comprehensive Manufacturing of Touchscreen, Driver Board Options
Youritech Driver Board
Youritech's R&D team provides experienced display panel motherboard solutions including industrial-grade and military-grade driver boards,manufacturing and designing industry-standard TTL/LVDS interface/CON driver boards, LCD driver boards/LCD inverters/EDP driver boards/4K driver boards,industrial displays solutions.
Production and Manufacturing
At Youritech, we design and manufacture standard, semi-custom and full custom LCD/OLED display modules,touch screen,driver board,open frame. Contact us today,let our engineering team quickly and accurately feedback you with details.
