23.6 Inch 4K 3840x720 LCD Display 1000nits High Brightness FPD-Link III Wide Temperature IPS LCD Module

23.6 Inch 4k Display Overview

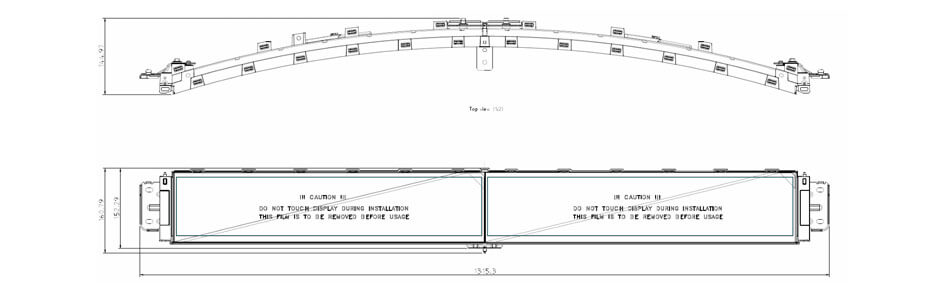

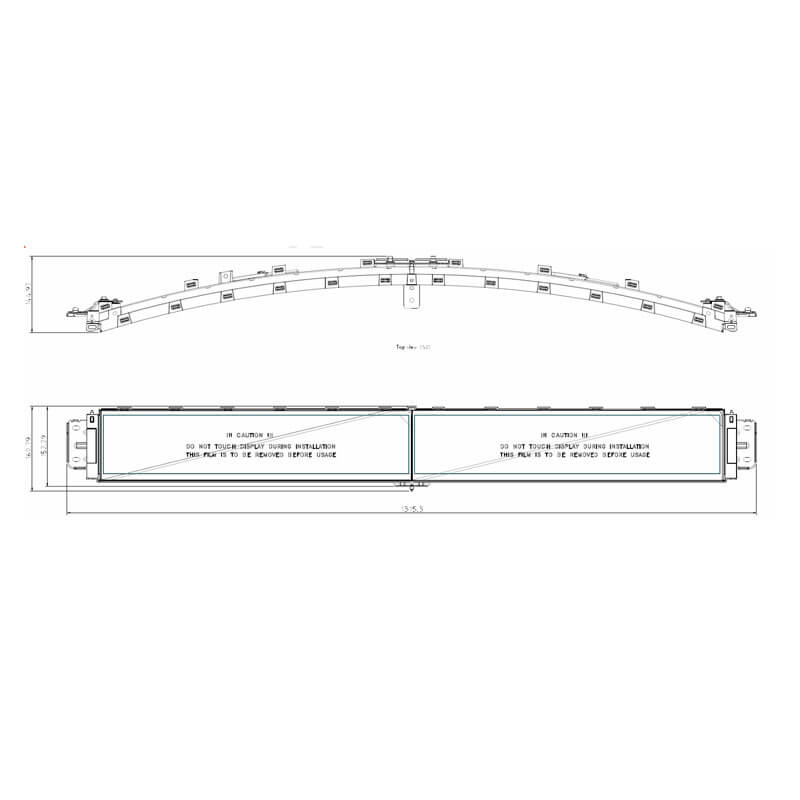

CP49ACM01.0 supports display 3840(RGB)×720 with aspect ratio of >3:1 (W:H), whose pixels are arranged in RGB Vertical Stripe. It features active area of 590.4(W)×110.7(H) mm, outline size of 1315.3(W)×160.79(H) mm, with surface treament of Anti Fingerprint, Reflection 3.5% (Max.), net weight of 5.20Kgs (Typ.). As a AHVA, Normally Black, Transmissive Dual product, CP49ACM01.0 can provides 1000 cd/m² display brightness 10000:1 transimissive contrast ratio, 85/85/85/85 (Typ.)(CR≥10) (L/R/U/D) viewing angle, best view direction on Symmetry , and response time of 25 (Max.)(Tr+Td) ms. Gray scale or the brightness of the sub-pixel is determined with a 8-bit gray scale signal for each dot, thus presenting a palette of 16.7M colors, also with performance of color gamut 91% (DCI-P3). This product adopted WLED as it's backlight systerm. CP49ACM01.0 utilizes FPD-Link III as it's signal inputting systerm, which connected by 20 pins Connector with power supply voltage of 6/13.5/18V (Typ.)(Min./Typ./Max.)(AII IN ONE). It's typical vertical frame rate (Fv) is 60Hz.
