LCD above 17.3" (23.8")

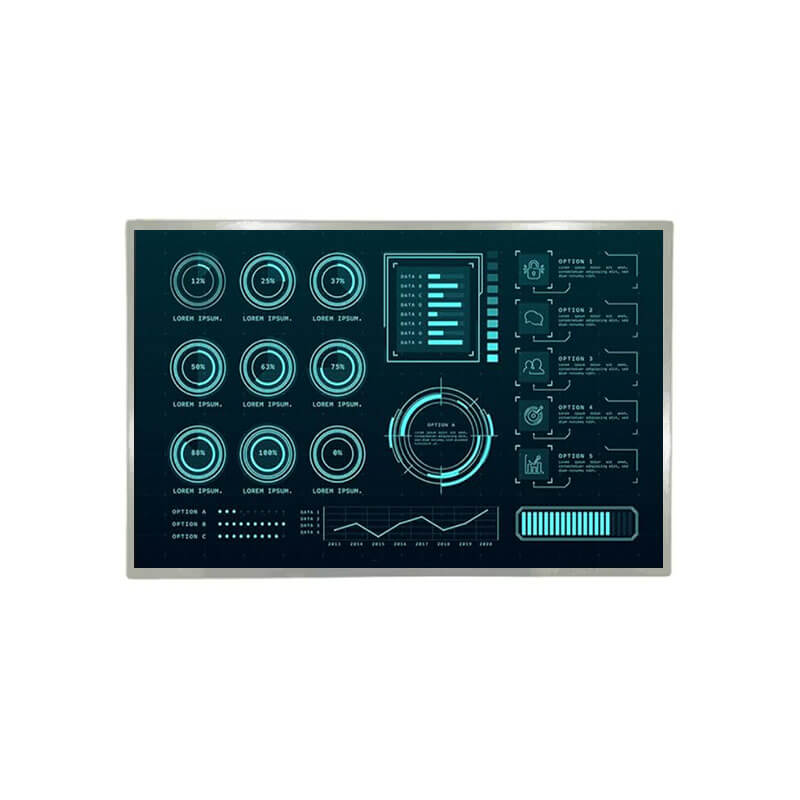

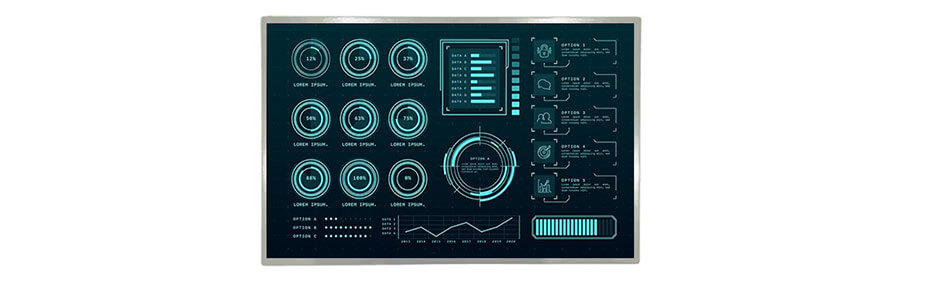

23.8 Inch 4K 3840x2160 LCD Display 600nits High Brightness eDP IPS LCD Module

Part No.:ET238UH01-X
Size:23.8″ inch
Resolution:3840x2160
Panel Interface:eDP
Display mode:Transmissive
Outline Dimension:545x323.4mm
Active Area:527.04x296.46mm
Viewing Angle L/R/U/D:89/89/89/89
Brightness（cd/m2）:600(Typ.)
Operation / Storage Temp:-40~50°C / -40~60°C
Touch:no

23.8 Inch 4k Display Overview
ET238UH01-X is a 23.8-inch IPS LCD display module with 3840 × 2160 (4K) resolution in transmissive mode. It features an eDP interface, 600 cd/m² typical brightness, and wide 89° viewing angles in all directions. The display offers an active area of 527.04 × 296.46 mm, an outline size of 545 × 323.4 mm, operates from –40 to 50 °C (storage –40 to 60 °C), and is provided without touch functionality.

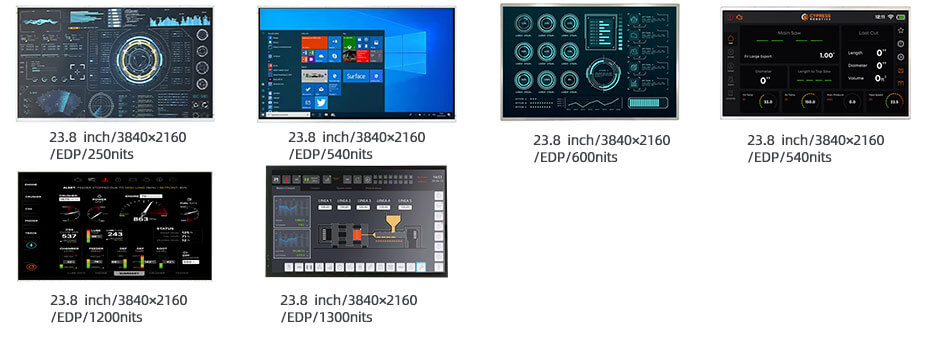

More 23.8 Inch 4k Display For Reference
LM238WR2-SPD1 (LCM, 3840x2160, eDP, 250nits, 0~50°C, 545x317.4mm)
LM238WR2-SPE1 (LCM, 3840x2160, eDP, 540nits, 0~50°C, 544.7x328.2mm)
ET238UH01-X (LCM, 3840x2160, eDP, 600nits, -40~50°C, 545x323.4mm)
LM238WR2-SPE2 (LCM, 3840x2160, eDP, 540nits, 0~50°C, 544.7x328.2mm)
ET238UH02-R (LCM, 3840x2160, eDP, 1200nits, 0~50°C, 550.46x325.04mm)
P2380UHF1MA00 (LCM, 3840x2160, eDP, 1300nits, -20~70°C, 549x323.4mm)
