23.8 Inch 4K 3840x2160 LCD Display 1300nits High Brightness eDP (4 Lanes) IPS LCD Module

23.8 Inch 4k Display Overview

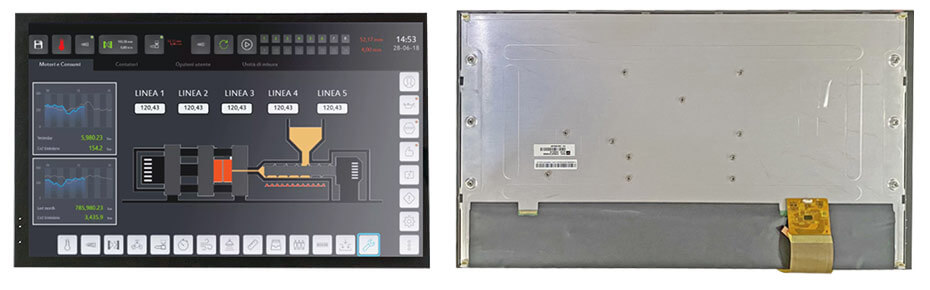

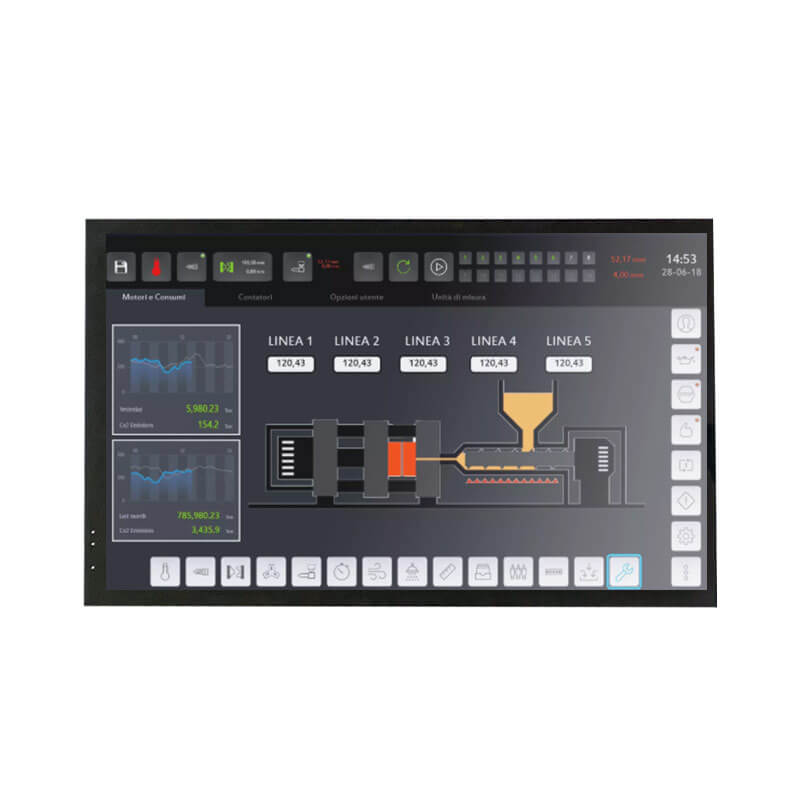

P2380UHF1MA00 supports display 3840(RGB)×2160 (UHD) with aspect ratio of 16:9 (W:H), whose pixels are arranged in RGB Vertical Stripe. As for mechanical detail, it features active area of 527.04(W)×296.46(H) mm, outline size of 549(W)×323.4(H)×17.02(D) mm, viewing area size of 531(W)×300.46(H) mm, net weight of TBD. As a SFT, Normally Black, Transmissive LCM product, P2380UHF1MA00 can provides 1300 cd/m² display brightness 1200:1 transimissive contrast ratio, 88/88/88/88 (Typ.)(CR≥10) (L/R/U/D) viewing angle, best view direction on Symmetry , and response time of 35 (Max.)(Tr+Td) ms. Gray scale or the brightness of the sub-pixel is determined with a 8-bit gray scale signal for each dot, thus presenting a palette of 16.7M colors, also with performance of color gamut 70% (NTSC). This product adopted WLED as it's backlight systerm which was placed as Edge light type and have a working life time of 70K hours, external backlight driver is additionally needed. P2380UHF1MA00 utilizes eDP (4 Lanes) as it's signal inputting systerm, which connected by 30 pins Connector with power supply voltage of 12.0V (Typ.). It's typical vertical frame rate (Fv) is 60Hz.

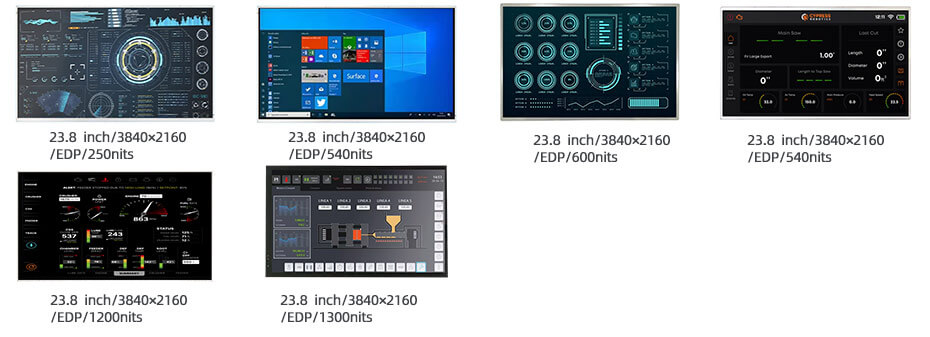

More 23.8 Inch 4k Display For Reference
LM238WR2-SPD1 (LCM, 3840x2160, eDP, 250nits, 0~50°C, 545x317.4mm)
LM238WR2-SPE1 (LCM, 3840x2160, eDP, 540nits, 0~50°C, 544.7x328.2mm)
ET238UH01-X (LCM, 3840x2160, eDP, 600nits, -40~50°C, 545x323.4mm)
LM238WR2-SPE2 (LCM, 3840x2160, eDP, 540nits, 0~50°C, 544.7x328.2mm)
ET238UH02-R (LCM, 3840x2160, eDP, 1200nits, 0~50°C, 550.46x325.04mm)
P2380UHF1MA00 (LCM, 3840x2160, eDP, 1300nits, -20~70°C, 549x323.4mm)
