0.48"-5" LCD Display (1.8")

1.8 Inch High Brightness Display 500nits 1920x1080 MIPI TFT LCD Display For Handheld PDA

Part No.:ET018FH01-G
Size:1.8″ inch
Resolution:1920x1080
Panel Interface:MIPI
Display mode:Transmissive

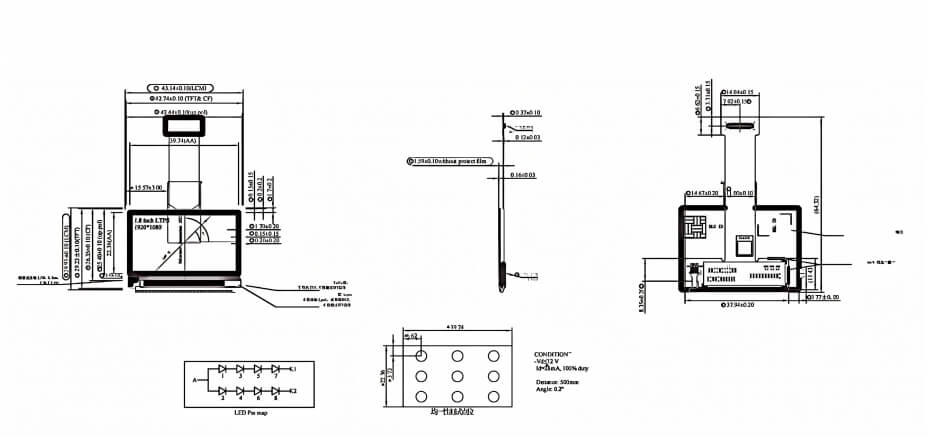

Outline Dimension:43.14x29.93x1.59mm
Active Area:39.74x22.36mm
Viewing Angle L/R/U/D:/
Brightness（cd/m2）:500nits
Operation / Storage Temp:-20~70°C / -30~80°C
Touch:no

1.8 Inch High Brightness LCD Display Overview

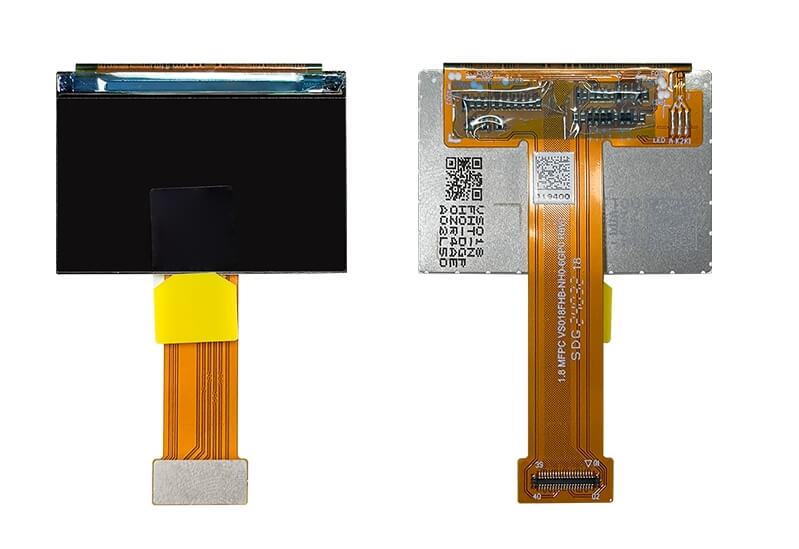

ET018FH01-G is a 1.8-inch TFT LCD display module featuring a 1920 × 1080 resolution in transmissive mode. It uses a MIPI interface, delivers 500 cd/m² brightness, and is designed for compact handheld applications. The module has an active area of 39.74 × 22.36 mm, an outline size of 43.14 × 29.93 × 1.59 mm, supports –20 to 70 °C operation (–30 to 80 °C storage), and is supplied without touch.

Outdoor High Brightness Displays Technology

YOURITECH. Comprehensive Manufacturing of Touchscreen, Driver Board Options

Youritech Driver Board
Youritech's R&D team provides experienced display panel motherboard solutions including industrial-grade and military-grade driver boards,manufacturing and designing industry-standard TTL/LVDS interface/CON driver boards, LCD driver boards/LCD inverters/EDP driver boards/4K driver boards,industrial displays solutions.
