23.7 Inch Stretched Bar Display Overview

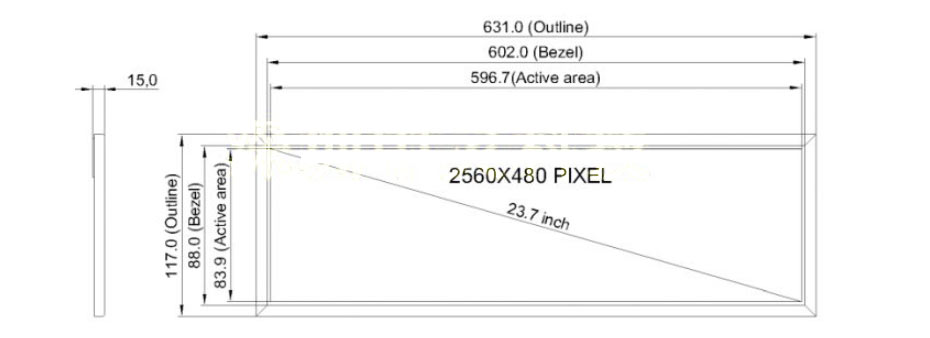

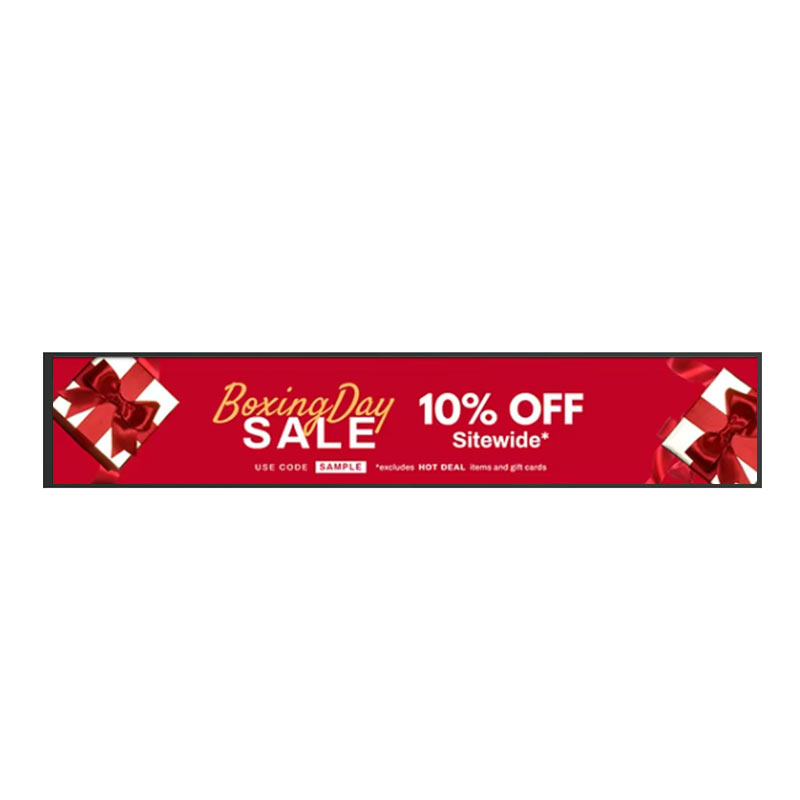

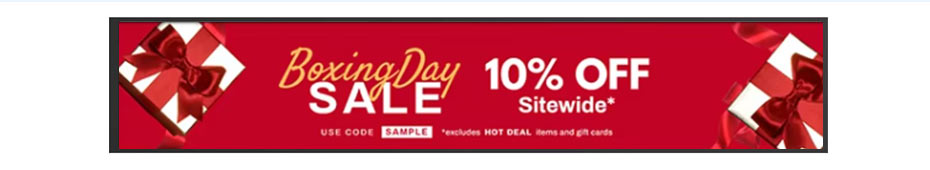

ET237BA01-IL is a 23.7-inch diagonal stretched bar TFT-LCD display featuring a transmissive IPS panel. It supports a 2560 × 480 resolution, delivering high-definition wide-format visuals with a narrow-height design. The display has an active area of 596.7 (W) × 83.9 (H) mm and an outline dimension of 631 (W) × 117 (H) mm, making it ideal for digital signage, information bars, and industrial display applications. ET237BA01-IL uses an LVDS interface and provides a typical brightness of 500 cd/m² for clear visibility in various lighting conditions. With wide viewing angles of 89° in all directions (L/R/U/D), it ensures consistent color and contrast from multiple perspectives. The module operates within 0 to 50°C and can be stored between –20 to 60°C, and it supports touch functionality for interactive applications.
More 23.7 Inch Bar Displays For Reference

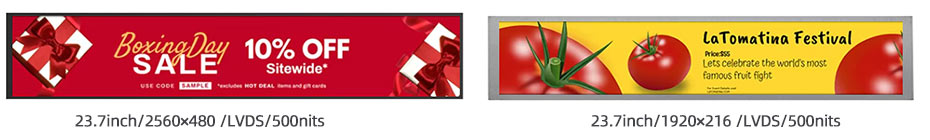

ET237BA01-IL (2560x480, LVDS, IPS, 500nits, 0~50°C, 631x117mm)
ET237BA01-HD (1920x216,LVDS, IPS, 500nits, 0~50°C, 627.6x97.23mm)
YOURITECH. Comprehensive Manufacturing of Touchscreen, Driver Board Options
Youritech Driver Board
Youritech's R&D team provides experienced display panel motherboard solutions including industrial-grade and military-grade driver boards,manufacturing and designing industry-standard TTL/LVDS interface/CON driver boards, LCD driver boards/LCD inverters/EDP driver boards/4K driver boards,industrial displays solutions.
Production and Manufacturing
At Youritech, we design and manufacture standard, semi-custom and full custom LCD/OLED display modules,touch screen,driver board,open frame. Contact us today,let our engineering team quickly and accurately feedback you with details.
