21.5 Inch TFT LCD Display 1920×1080 LVDS High Brightness 1500nits Wide Temperature LCD Display For Automotive

21.5 Inch Automotive Display Overview

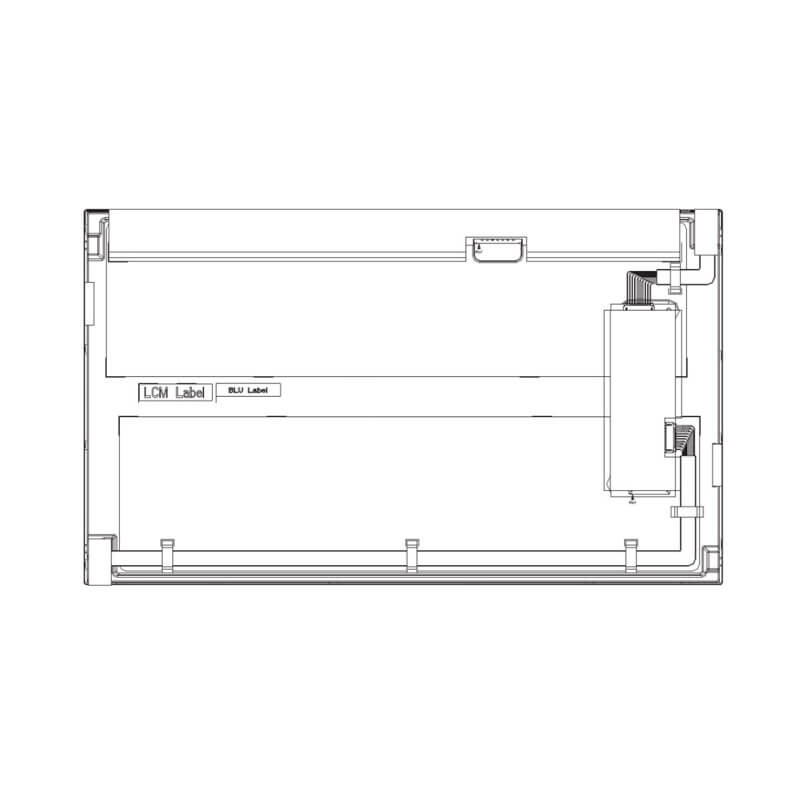

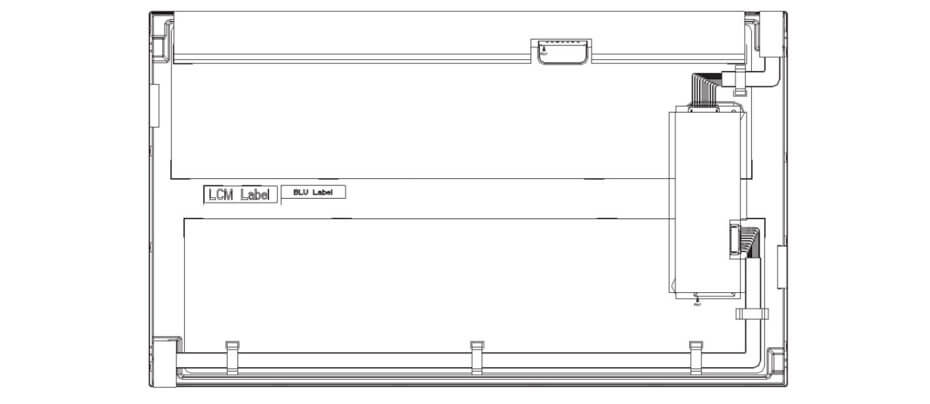

M215GWW1 R0 is a 21.5 inch diagonal a-Si TFT-LCD display screen product from IVO, with a built-in WLED backlight, With LED Driver, without touch screen. M215GWW1 R0 supports display 1920(RGB)×1080 (FHD) with aspect ratio of 16:9 (W:H), whose pixels are arranged in RGB Vertical Stripe. As for mechanical detail, it features active area of 476.64(W)×268.11(H) mm, outline size of 495.6(W)×292.2(H)×20.5(D) mm, viewing area size of 479.84(W)×271.31(H) mm, with surface treament of Antiglare, Hard coating (3H), net weight of 1.60/1.76Kgs (Typ./Max.). As a IPS, Normally Black, Transmissive LCM product, M215GWW1 R0 can provides 1500 cd/m² display brightness 1500:1 transimissive contrast ratio, 85/85/85/85 (Typ.)(CR≥10) (L/R/U/D) viewing angle, best view direction on Symmetry , and response time of 35 (Max.)(Tr+Td) ms. Gray scale or the brightness of the sub-pixel is determined with a 8-bit gray scale signal for each dot, thus presenting a palette of 16.7M colors, also with performance of color gamut 72% (NTSC). This product adopted WLED as it's backlight systerm which was placed as Edge light type and have a working life time of 50K hours, With LED Driver. M215GWW1 R0 utilizes LVDS (2 ch, 8-bit) as it's signal inputting systerm, which connected by 30 pins Connector with power supply voltage of 5.0V (Typ.). It's typical vertical frame rate (Fv) is 60Hz.
