33.8 Inch Automotive Display Overview

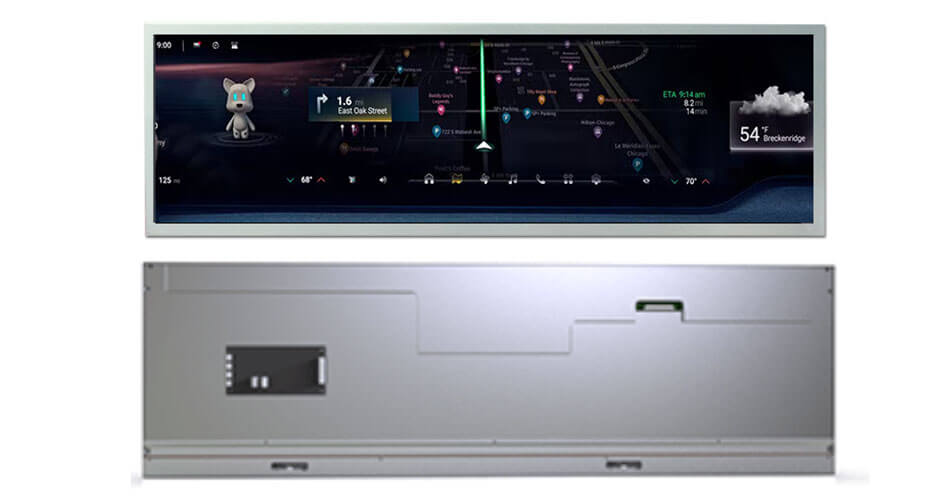

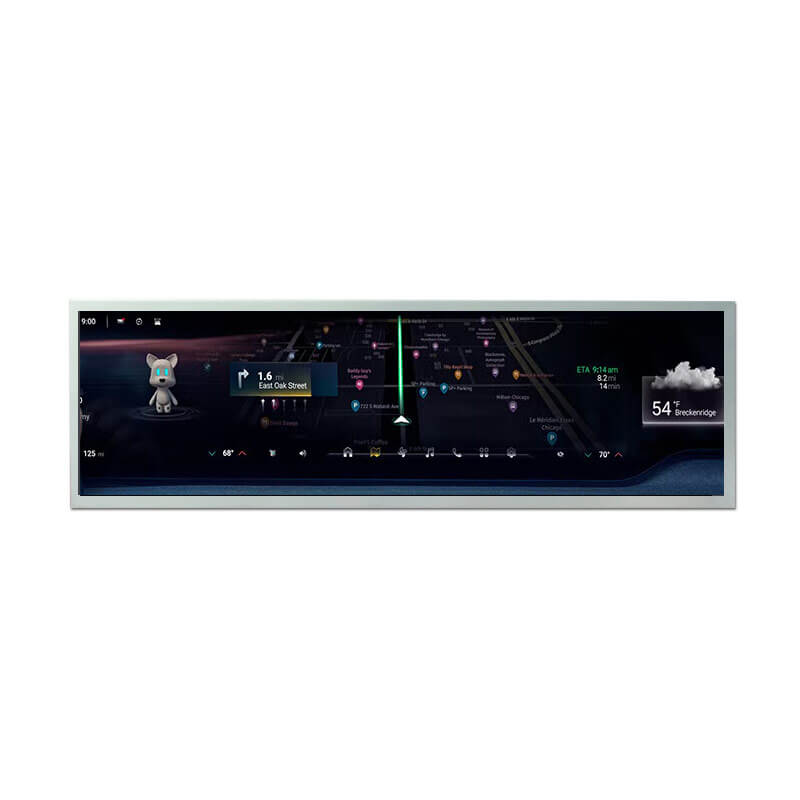

ET330BA01-KB is a 33.8-inch diagonal TFT-LCD display product with a transmissive display mode. It supports a resolution of 2560×720, delivering a wide-format viewing experience, and utilizes an LVDS interface for signal transmission. The display features an active area of 825.6(W)×232.2(H) mm and an outline dimension of 856.2(W)×262.8(H) mm. It provides a typical brightness of 700 cd/m², suitable for high-brightness automotive applications, and offers wide viewing angles of 89/89/89/89 (L/R/U/D). The module operates within a temperature range of 0 to 50°C and can be stored at -20 to 70°C. This model does not include a touch function.
Automotive Display Solution
At Youritech, we design and manufacture standard, semi-custom and full custom LCD/OLED display modules,touch screen,driver board,open frame. Contact us today,let our engineering team quickly and accurately feedback you with details.
