7 Inch Square Display Overview

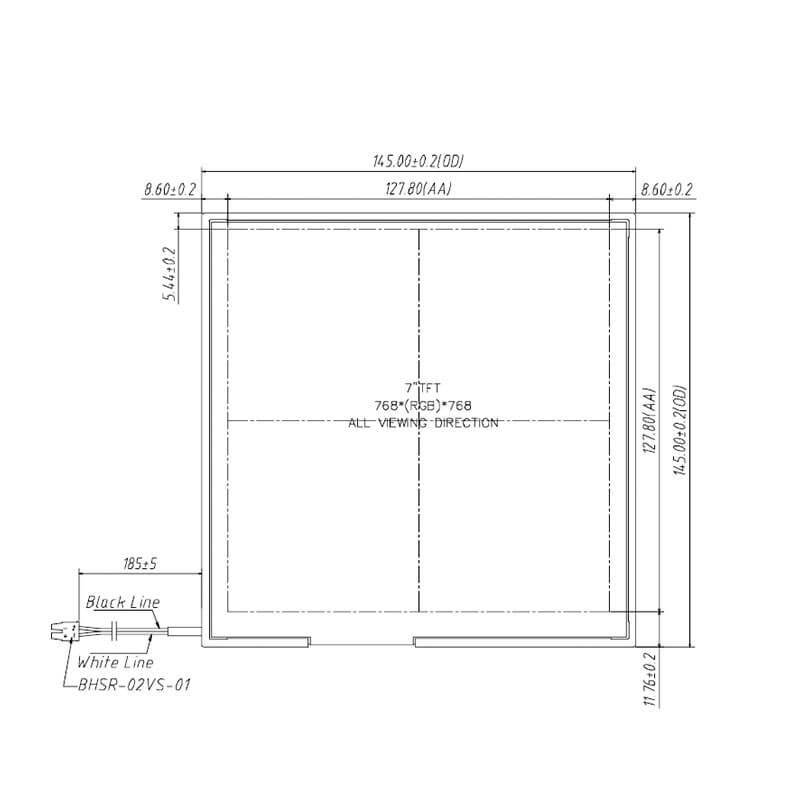

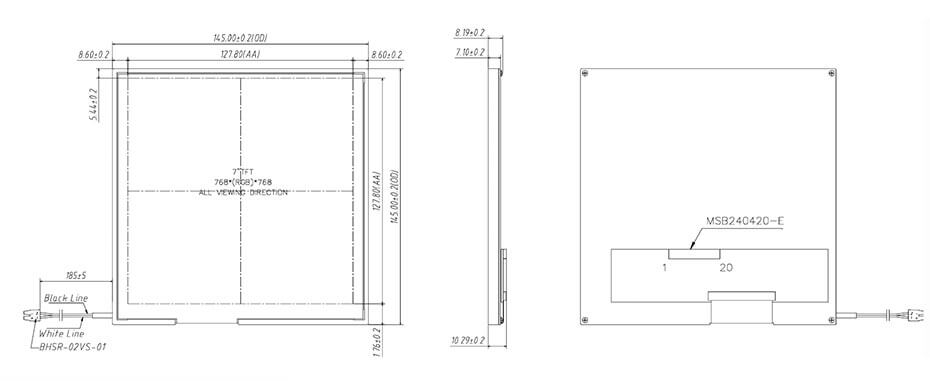

ET070SQ02-AP is a 7-inch diagonal square TFT LCD display featuring a 768×768 resolution and an LVDS interface. The display operates in transmissive mode and offers an active area of 127.8(W)×127.8(H) mm, with an outline size of 145(W)×145(H) mm. ET070SQ02-AP provides a typical brightness of 1000 cd/m² and wide viewing angles of 89° in all directions (L/R/U/D). It supports operation over a temperature range of –20 °C to 70 °C and storage from –30 °C to 80 °C. This model does not include touch functionality.
More 7 Inch Square Display For Reference
ET070SQ01-AP (720x720, LVDS, 1000nits, -20~70°C, 150x150mm)
ET070SQ02-AP (768x768, LVDS, 1000nits, -20~70°C, 145x145mm)
ET070SQ03-KN (600x600, LVDS, 430nits, -30~70°C, 144x124mm)
