2 Inch Wide Temperature LCD Display Overview

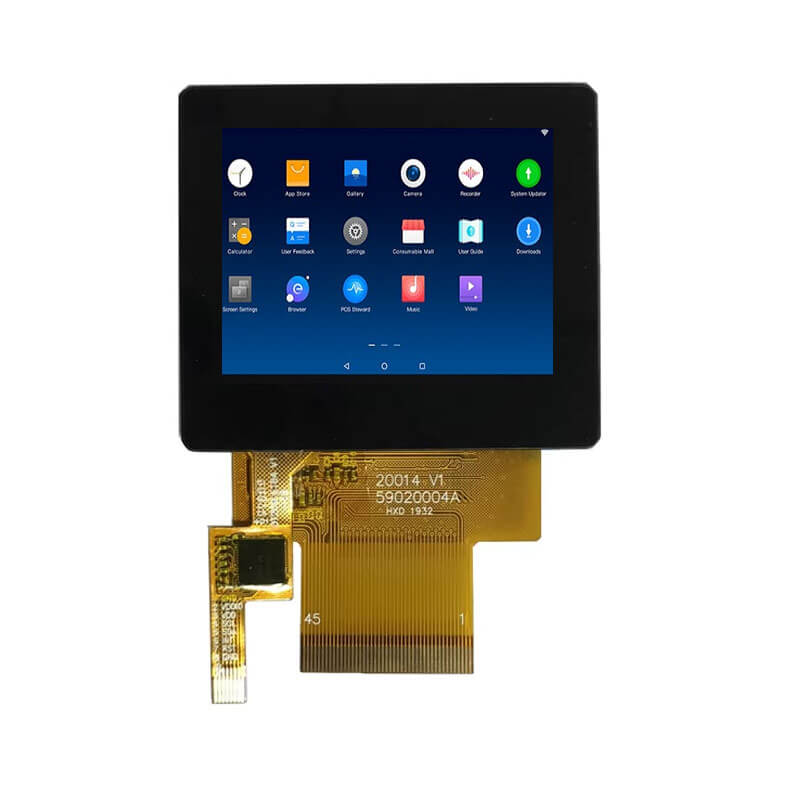

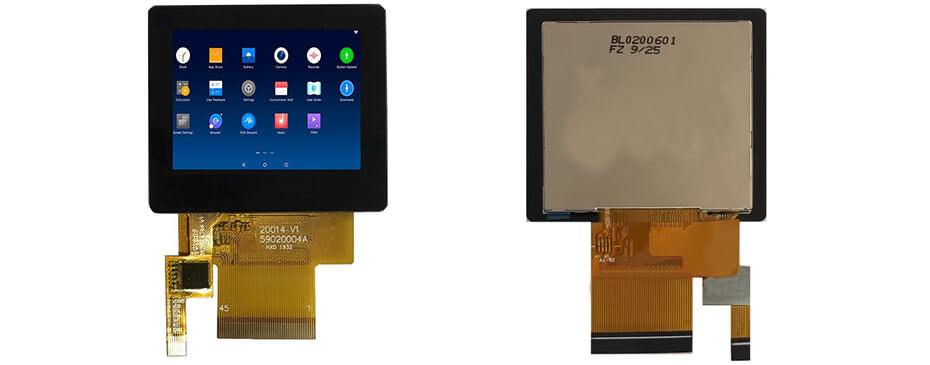

ET020WQ20-KT is a 2 inch diagonal TFT-LCD display screen product. ET020WQ20-KT supports a display resolution of 480×360, whose pixels are arranged in a standard RGB stripe configuration. It features an active area of 40.824(W) × 30.6(H) mm and an outline dimension of 54.5(W) × 47.56(H) mm. The module adopts a transmissive display mode and supports a TTL interface for communication. ET020WQ20-KT provides a high brightness of 820 cd/m² and offers a wide viewing angle of 80/80/80/80 (L/R/U/D) for clear visibility from multiple directions. Designed for wide temperature applications, it supports an operating temperature range of -30°C to 85°C and a storage temperature range of -30°C to 85°C. This display module integrates a capacitive touch panel, enabling responsive and accurate touch input.
More 2 Inch Wide Temperature Displays For Reference
ET020WQ30-K (LCD, 480×360, MIPI, IPS, 900nits, -30~85°C, 46.5×41.56mm)
ET020WQ30-KT (LCD, 480×360, MIPI, IPS, 820nits, -30~85°C, 54.5×47.56mm, CTP)
ET020WQ20-K (LCD, 480×360, TTL, IPS, 900nits, -30~85°C, 46.5×41.56mm)
ET020WQ20-KT (LCD, 480×360, TTL, IPS, 820nits, -30~85°C, 54.5×47.56mm, CTP)
Wide Temperature Displays Technology
YOURITECH. Comprehensive Manufacturing of Touchscreen, Driver Board Options
Youritech Driver Board
Youritech's R&D team provides experienced display panel motherboard solutions including industrial-grade and military-grade driver boards,manufacturing and designing industry-standard TTL/LVDS interface/CON driver boards, LCD driver boards/LCD inverters/EDP driver boards/4K driver boards,industrial displays solutions.
Youritech Production and Manufacturing
At Youritech, we design and manufacture standard, semi-custom and full custom LCD/OLED display modules,touch screen,driver board,open frame. Contact us today,let our engineering team quickly and accurately feedback you with details.
