2 Inch Wide Temperature LCD Display 480×360 MIPI -30°C to 85°C High Brightness 820nits TFT LCD Display With Capacitive Touch

2 Inch Wide Temperature LCD Display Overview

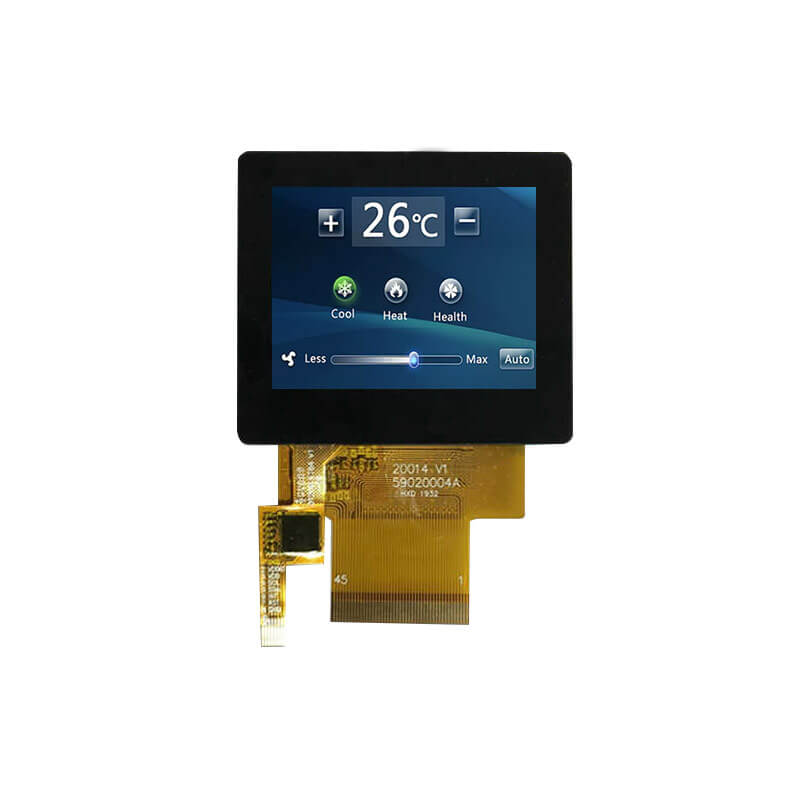

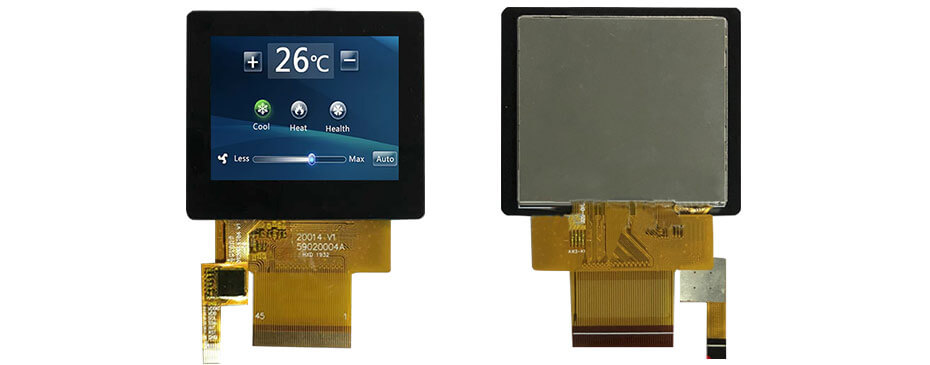

ET020WQ30-KT is a 2 inch diagonal TFT-LCD display screen product. ET020WQ30-KT supports a display resolution of 480×360, whose pixels are arranged in a standard RGB stripe configuration. It features an active area of 40.824(W) × 30.618(H) mm and an outline dimension of 54.5(W) × 47.56(H) mm. The module adopts a transmissive display mode and supports a high-speed MIPI interface for communication. ET020WQ30-KT provides a high brightness of 820 cd/m² and offers a wide viewing angle of 80/80/80/80 (L/R/U/D) for clear visibility from multiple directions. Designed for wide temperature applications, it supports an operating temperature range of -30°C to 85°C and a storage temperature range of -30°C to 85°C. This display module integrates a capacitive touch panel, enabling responsive and accurate touch input.

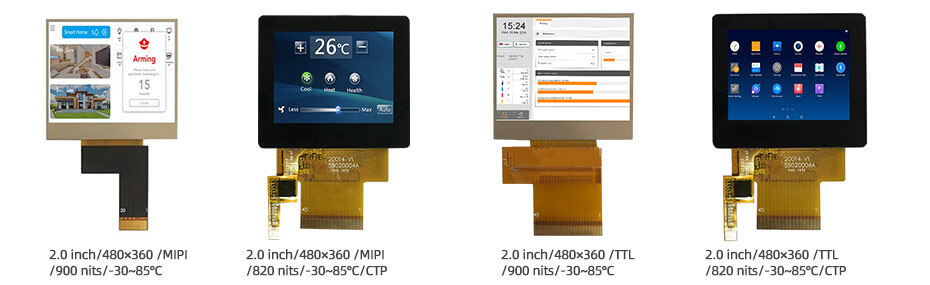

More 2 Inch Wide Temperature Displays For Reference
ET020WQ30-K (LCD, 480×360, MIPI, IPS, 900nits, -30~85°C, 46.5×41.56mm)
ET020WQ30-KT (LCD, 480×360, MIPI, IPS, 820nits, -30~85°C, 54.5×47.56mm, CTP)
ET020WQ20-K (LCD, 480×360, TTL, IPS, 900nits, -30~85°C, 46.5×41.56mm)
ET020WQ20-KT (LCD, 480×360, TTL, IPS, 820nits, -30~85°C, 54.5×47.56mm, CTP)

Wide Temperature Displays Technology

YOURITECH. Comprehensive Manufacturing of  Touchscreen, Driver Board Options

Youritech Driver Board
Youritech's R&D team provides experienced display panel motherboard solutions including industrial-grade and military-grade driver boards,manufacturing and designing industry-standard TTL/LVDS interface/CON driver boards, LCD driver boards/LCD inverters/EDP driver boards/4K driver boards,industrial displays solutions.
