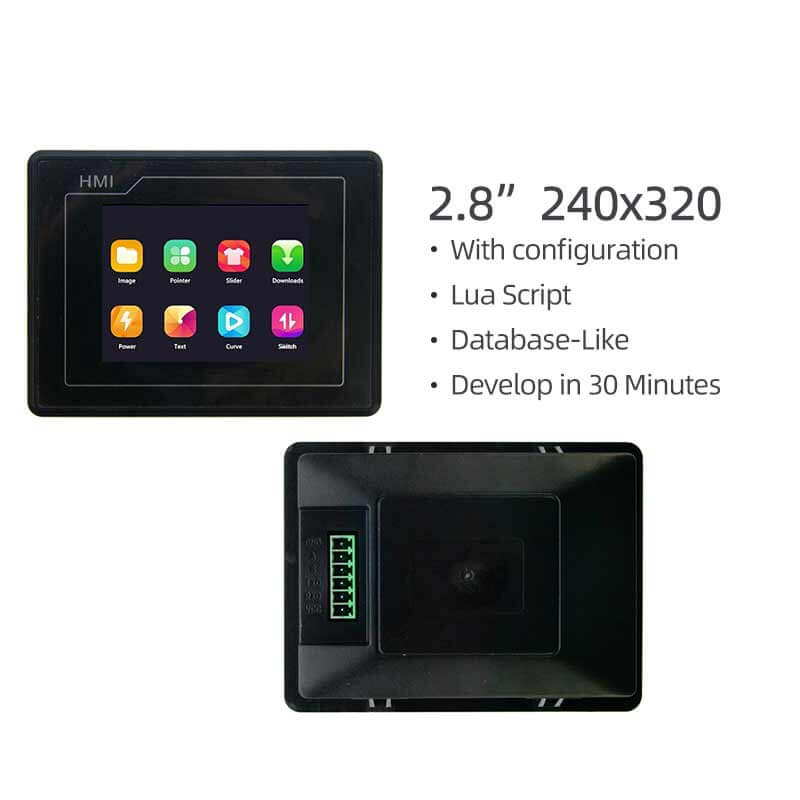

2.8 Inch HMI Human-machine Interface Inverter Servo LUA Configuration 240x320 HMI Display With Capacitive Touch/Resistive Touch

2.8 Inch HMI Display Overview
2.8 Inch HMI Human-machine Interface Inverter Servo LUA Configuration 240x320 HMI Display With Capacitive Touch/Resistive Touch.
Product Model

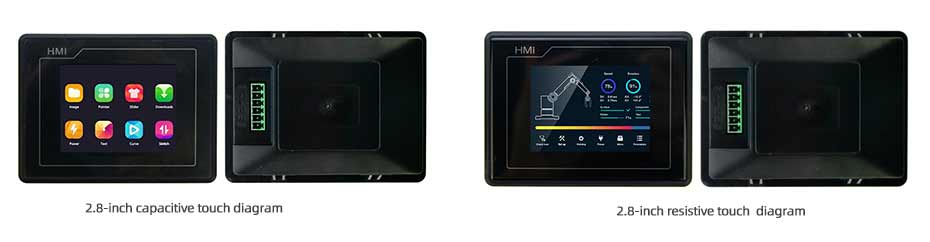

ET028HMI2432-DCC(Capacitive touch)
ET028HMI2432-DCT(Resistive touch)

2.8 Inch HMI Display Product Parameters
Core processing: 400M SOC processor.
Operating system: No operating system, it can run after power on, startup time: about 1 second.
Protocol type: Support MODBUS RTU, FX2N, FX3U, DELTA(DVP), XINJIE(XC), XINJIE(XD), FATEK(FB), HAIWELL(N/S), SAMKOON, EMERSON, DCBUS, XGUS and other protocols.
Scripting language: Version 5.3 LUA script, the screen can run user-written logic, protocols and algorithm functions.
Size: 2.8 inches
Resolution:240x320
Installation direction: supports 0, 90, 180 and 270 degree rotation installation display.
Storage space: 128Mbit
Font library: Built-in vector fonts, edge anti-aliasing processing, supports any size ASCII, GBK, GB2312, UNICODE (global language) font library, and can also customize any computer font display.
Image storage: Supports JPEG, PNG (semi-transparent/fully transparent) compression, and supports image storage of any size. It can store about 600 full-screen pictures in total (based on the size of 25KB/picture, BMP format is not recommended). Depending on the image compression ratio, this value will fluctuate up and down.
Color: 65K colors, 16-bit RGB
Voltage:5-28V
Power consumption: darkest backlight: 0.4W: brightest backlight: 0.7W
Communication method: RS232/TTL (factory default 232 level, short J5 for TTL level), RS485
Communication baud rate: RS232/TTL: 1200~921600bps, typical baud rate: 115200bps
RS485: 1200~115200bps, typical baud rate: 19200bps
Communication connector specifications: 2EDGV3.81-6P vertical
Picture local download: SD card, serial port
Firmware local/remote upgrade: Insert SD card for local upgrade/support user motherboard remote serial port upgrade screen firmware.
Remote image upgrade: Support users to remotely use their own motherboard serial port to upgrade screen-related image projects, fonts, configuration files, etc.
Real-time clock: supports clock, timer, countdown and other functions

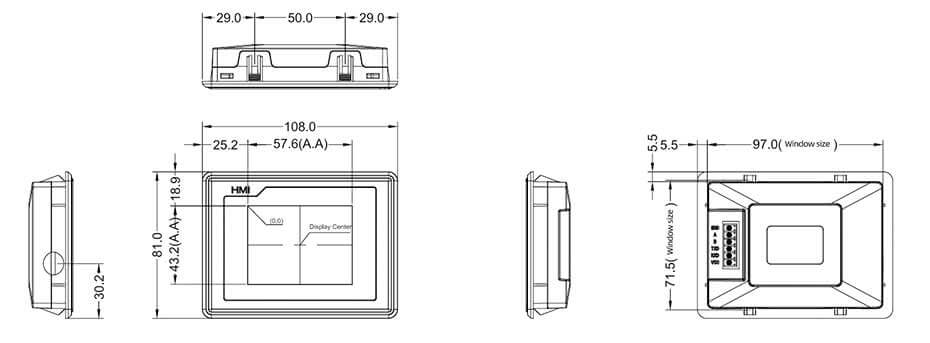

Screen effective display area: 57.6mmx43.2mm
Product size:108.0mmx81.0mmx24.4mm
Product window size: 97.0mmx71.5mm (it is recommended that the customer’s cabinet window be 98.0mmx72.5mm)
Supporting host computer software: VisualHMI®

Reliability parameters
Operating Temperature: 20~+70°C
Storage Temperature: 30~+80°C
ESD test: Test standard: IEC 61000-4-2 Air: +11/-14KV
EFT test: Test standard: IEC 61000-4-4 national standard 4 (voltage: ±4KV; frequency: 100/5KHZ; time: 120S), no restart, no display abnormality, no touch abnormality and other phenomena, the test function is normal.
Radiation test: Test standard: EN55022 ClassB margin -6dB Test environment: three-meter dark wave room.

Core competitiveness of products
Learning cycle: 30 minutes to familiarize yourself with the development environment, 3 days to complete human-computer interaction design.
Program debugging: The host computer integrates a "virtual serial port screen," eliminating the need for hardware connection and allowing direct Keil debugging. IDE-bound debugging
Startup Time: Runs instantly upon power-up, eliminating system loading time
Configuration Controls: Features a variety of configuration controls, including multi-language controls, buttons, text, drop-down menus, progress bars, sliders, meters, animations, QR codes, curves, data loggers, circular progress bars, and sub-screen slide controls.
System Keyboard: Built-in virtual numeric and character keyboards, supporting Chinese and English input methods, and customizable keyboards.
Data Logging: Supports exporting data logger content to an SD card.
Layer Technology: Multiple display layers are built into the system for faster switching.
Multilingual Capability: Factory-preset up to 15 global languages, enabling one-click switching without the need for multiple UIs.
Logical Operation Processing: The host computer has an embedded LUA script parser, allowing users to customize complex logic relationships and protocols within the screen, meeting 99.9% of customer product requirements.
Remote Upgrade: Supports remote serial port upgrades of display firmware, project files, specified images, configuration files, and fonts.
Lifecycle: Utilizes a traditional, leading-edge processor, ensuring long-term supply.

2.8 Inch Serial Port Screen
Display Type: TFT LCD
Backlight: LED
Brightness (cd/m²): 400
Backlight Lifespan (hours): >20,000
Contrast Ratio: 500:1
Viewing Angles (L/R/T): 70/70/70/45

Touch panel (resistance and capacitance optional)
Touch type: capacitive touch screen (IC: TW3118)
Capacitive screen touch mode: single point, sliding touch
Capacitive screen transmittance: more than 90%
Capacitive screen touch times: The number of capacitive screen touch times is theoretically unlimited, and the touch life is related to the working environment (dust, humidity).
Capacitive cover customization: "Glass cover + capacitive touch" integrated fitting service can be customized according to user drawing size.
Touch type: Resistive touch screen
Resistive screen touch mode: single point, sliding touch
Resistive screen transmittance: more than 80%
Resistive screen touch times: the same pixel, single touch times more than 1 million times

Customized services
Customization Fees: For orders of 1,000 units, some customization fees may be waived.
Hardware Circuits: Customizable PCB size, circuit thickness, custom circuitry, military-grade temperature display, and more.
Software Customization: Customizable instructions or controls based on user needs, reducing development effort.
Design Services: Graphic design and product structure design services available.
Other: Customizable on demand to meet all user needs.

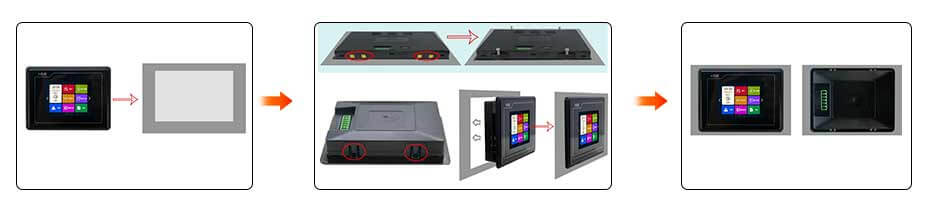

Human machine interface HMI series shell product installation diagram

Step 1: Open a slot in the cabinet and put the product in from the front;
Step 2: Directly embed the human-machine interface into the cabinet without screw hooks;
Step 3: Installation completed.
