13.3 Inch PCAP Touch Display Control G/G Mechanism EETI IC COF Type USB/I2C Touch Display

Part No.:ET133CTP01
Size:13.3″ inch
Resolution:Optional
Panel Interface:I2C,USB
Display mode:PCAP
Outline Dimension:330.76x214.24mm
Active Area:294.36x165.94mm
Viewing Angle L/R/U/D:Full view
Brightness（cd/m2）:Optional
Operation / Storage Temp:-10~60°C / -20~70°C
Touch:yes

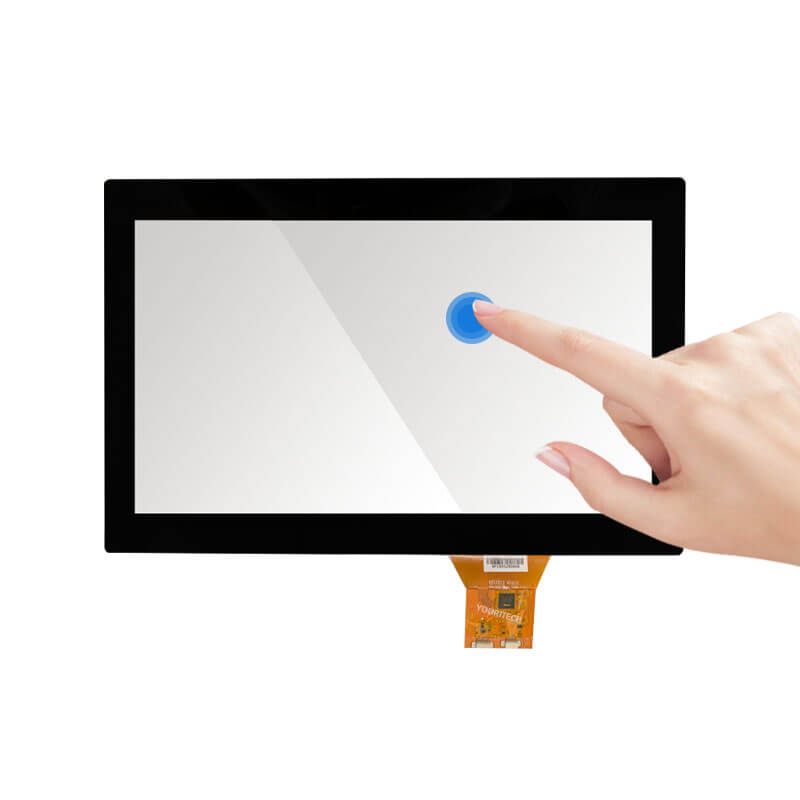

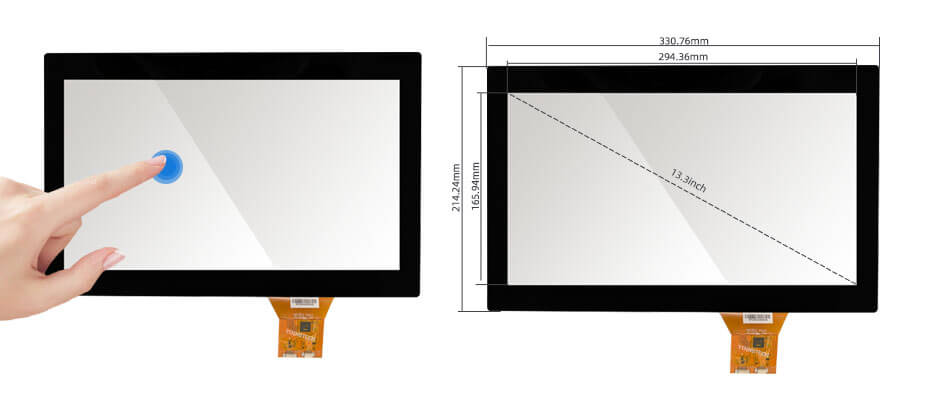

13.3 Inch Capacitive Touch Screen
Product structure: Glass/Glass
Appearance thickness: 1.6 mm
Touch Points: Multi-touch
Interface Type: USB,I2C
Display Area: 294.36x165.94 mm
Outline Dim.: 330.76x214.24 mm
Operation Temperature: -10 ~ 60°C
Storage Temperature: -20 ~ 70°C

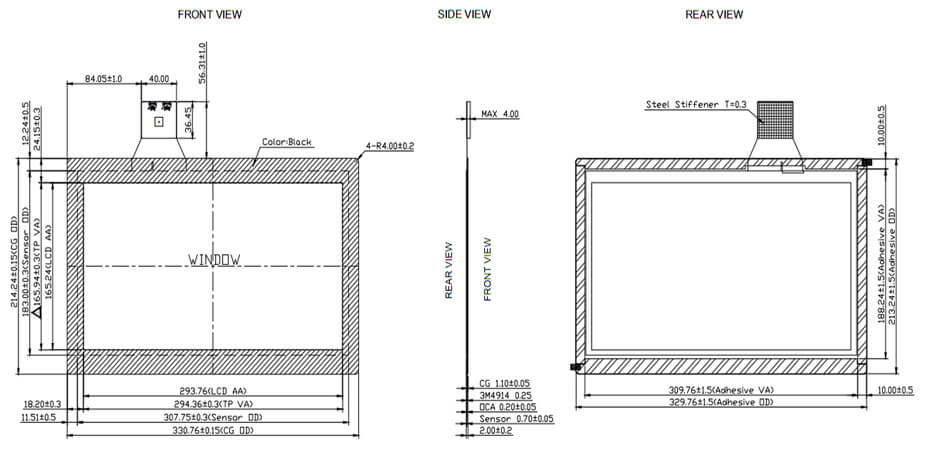

13.3 Inch Capacitive Touch Screen Drawing

The touch screens can be matched and integrated by all kinds of display panels

SPECIALTREATMENT
SUPPORT AG / AR / AF GLASS(ANTI-GLARE, ANT-REFLECTIVE, ANT-FINGERPRINT)

PRODUCTION AND MANUFACTURING
