2.8 Inch High Brightness LCD Display Overview

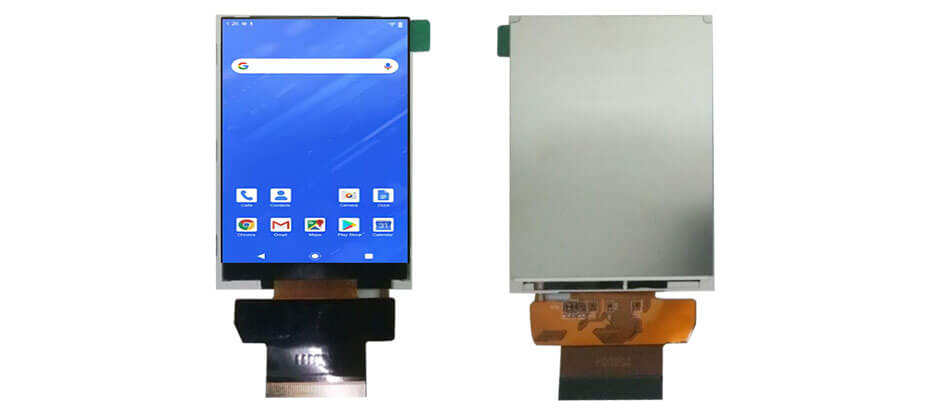

ET028VG01-C is a 2.8-inch diagonal high-brightness TFT LCD display designed for handheld PDAs. It features a 240×320 resolution with CPU/RGB/SPI interface and transmissive display mode. The active area measures 43.2(W)×57.6(H) mm, with an outline dimension of 50.2×69.2 mm. ET028VG01-C provides a typical brightness of 850 cd/m², viewing angles of 70° left/right, 60° up, and 70° down, and operates between –20 °C and 70 °C, with storage from –30 °C to 80 °C. Touch functionality is not supported.

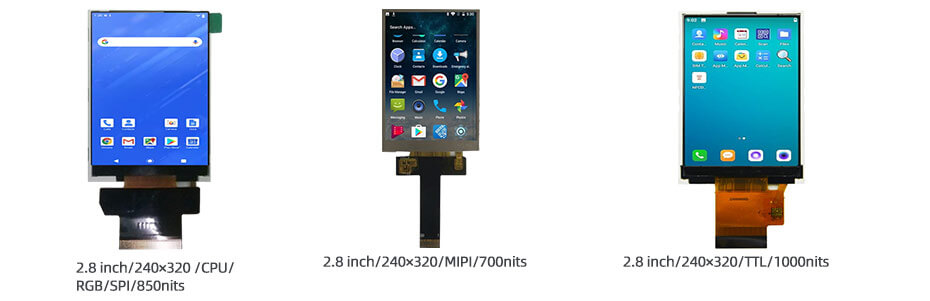

More 2.8 Inch High Brightness LCD Display For Reference
ET028VG01-C (240x320, CPU/RGB/SPI ,850nits, -20~70°C, 50.2x69.2mm)
ET028VG20-K (240x320, MIPI ,700nits, -20~70°C, 50.5x69.7mm)
ET028VG02-C (240x320, TTL ,1000nits, -20~70°C, 50.5x69.7mm)
Outdoor High Brightness Displays Technology
YOURITECH. Comprehensive Manufacturing of Touchscreen, Driver Board Options
Youritech Driver Board
Youritech's R&D team provides experienced display panel motherboard solutions including industrial-grade and military-grade driver boards,manufacturing and designing industry-standard TTL/LVDS interface/CON driver boards, LCD driver boards/LCD inverters/EDP driver boards/4K driver boards,industrial displays solutions.
Production and Manufacturing
At Youritech, we design and manufacture standard, semi-custom and full custom LCD/OLED display modules,touch screen,driver board,open frame. Contact us today,let our engineering team quickly and accurately feedback you with details.
