2.4 Inch OLED Display 450×600 MIPI CPU SPI 800nits High Brightness Wide Temperature AMOLED Display With On-Cell Touch For Cycling Computer Bike Display

Part No.:ET024AM02-H
Size:2.4″ inch
Resolution:450x600
Panel Interface:MIPI/CPU/SPI
Display mode:AM-OLED
Outline Dimension:38.72x51.56mm
Active Area:36.72x48.96mm
Viewing Angle L/R/U/D:80/80/80/80
Brightness（cd/m2）:800cd/m²
Operation / Storage Temp:-30~80°C / -40~80°C
Touch:yes

2.4 Inch OLED Display 450×600 MIPI CPU SPI 800nits High Brightness Wide Temperature AMOLED Display With On-Cell Touch For Cycling Computer Bike Display Video

2.4 Inch OLED Display 450×600 MIPI CPU SPI 800nits High Brightness Wide Temperature AMOLED Display With On-Cell Touch For Cycling Computer Bike Display Overview

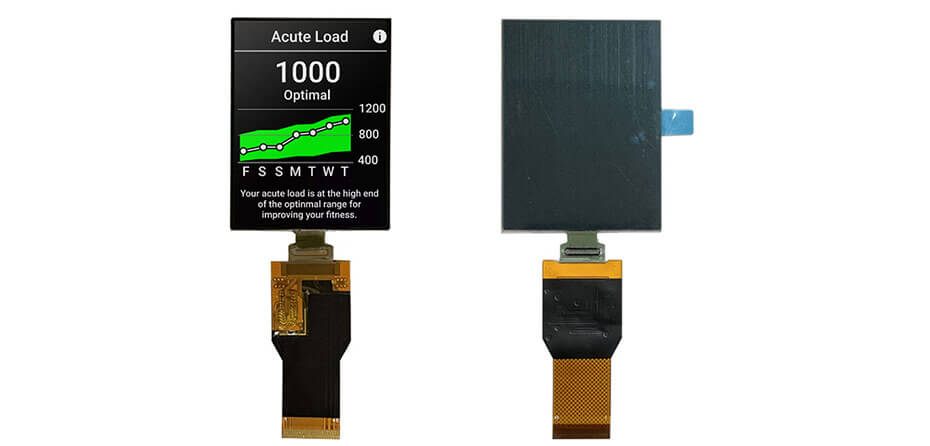

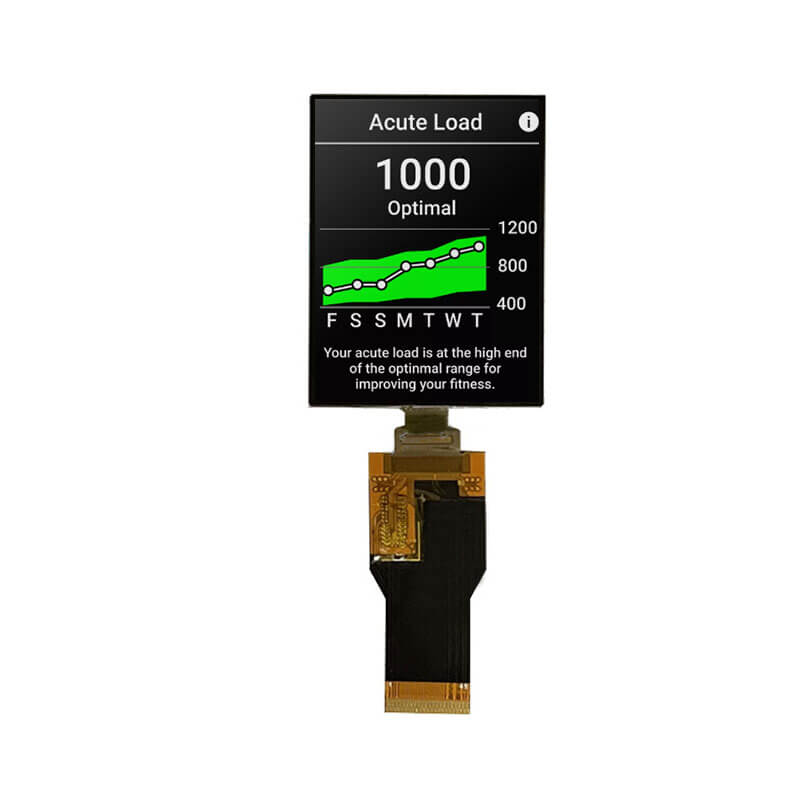

ET024AM02-H is a 2.4-inch diagonal AM-OLED display module featuring a self-emissive display mode. It supports a resolution of 450×600 with an aspect ratio of 3:4 (W:H) and adopts MIPI/CPU/SPI interfaces for flexible integration. The display offers an active area of 36.72 (W) × 48.96 (H) mm and an outline dimension of 38.72 (W) × 51.56 (H) mm. With a brightness of 800 cd/m², it delivers excellent visibility and high contrast performance, making it suitable for cycling computer and bike display applications. It provides wide viewing angles of 80/80/80/80 (L/R/U/D) and operates within a wide temperature range of -30°C to 80°C (storage: -40°C to 80°C). This module integrates on-cell touch functionality.

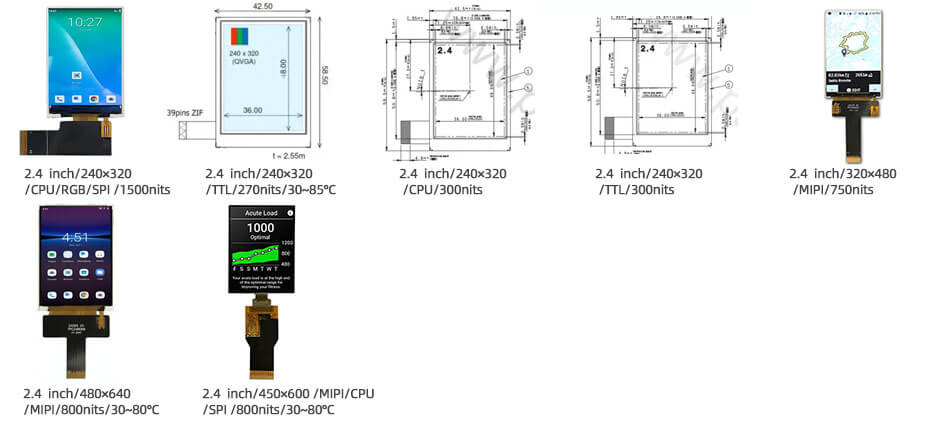

More 2.4 Inch Cycling Computer Bike Display For Reference
ET024VG10-T (240×320, CPU/RGB/SPI, LCM, 1500nits, -20~70°C, 42.92×60.26mm)
COM24H2P71ULC (240×320, TTL, LCM, 270nits, -30~85°C, 42.5×58.5mm)
COM24H2P96ULC (240×320, CPU, LCM, 300nits, -20~70°C, 42.5×58.5mm)
COM24H2P94ULC (240×320, TTL, LCM, 300nits, -20~70°C, 42.5×58.5mm)
ET024HVFID078 (320×480, MIPI, LCM, 750nits, -20~70°C, 39.52×60.68mm)
ET024VG30-K (480×640, MIPI, LCM, 800nits, -30~80°C, 42.92×60.26mm)
ET024AM02-H (450×600, MIPI/CPU/SPI , OLED, 800nits, -30~80°C, 38.72×51.56mm)
