0.48"-5" LCD Display (2.7")

2.7 Inch TFT LCD Display 128x64 CPU 500nits High Brightness Transflective LCD Display For Cycling Computer Bike Display

Part No.:ET027MN01-TW
Size:2.7″ inch
Resolution:128x64
Panel Interface:CPU
Display mode:Transflective
Outline Dimension:66.0x38.0mm
Active Area:60.775x32.935mm
Viewing Angle L/R/U/D:/
Brightness（cd/m2）:/
Operation / Storage Temp:-20~70°C / -30~80°C
Touch:no

2.7 Inch TFT LCD Display 128x64 CPU 500nits High Brightness Transflective LCD Display For Cycling Computer Bike Display Video

2.7 Inch TFT LCD Display 128x64 CPU 500nits High Brightness Transflective LCD Display For Cycling Computer Bike Display Overview

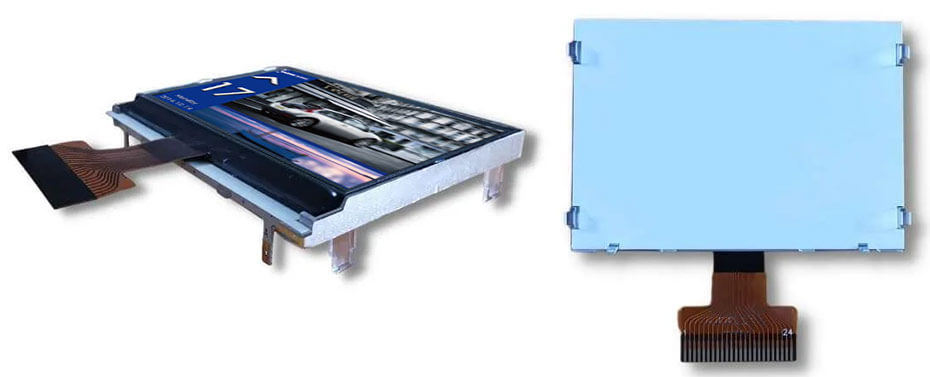

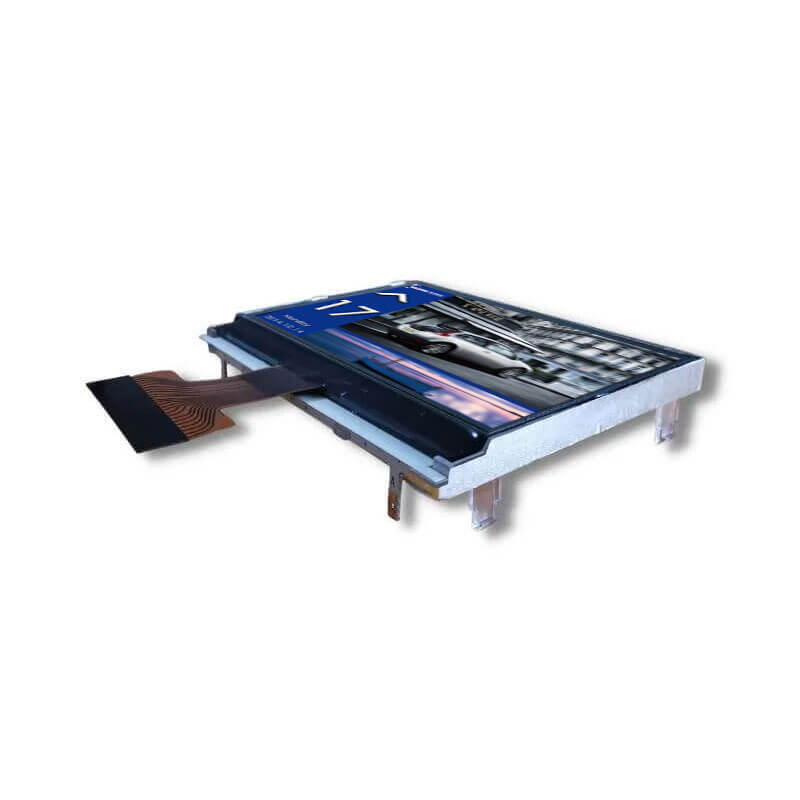

ET027MN01-TW is a 2.7-inch diagonal TFT-LCD display module featuring a transflective display mode. It supports a resolution of 128×64 and adopts a CPU interface for stable system integration. The display offers an active area of 60.775 (W) × 32.935 (H) mm and an outline dimension of 66.0 (W) × 38.0 (H) mm. With a brightness of 500 cd/m², it ensures good readability under both ambient and low-light conditions, making it suitable for cycling computer and bike display applications. It features a 6 o’clock viewing direction and operates within a temperature range of -20°C to 70°C (storage: -30°C to 80°C). This module does not include a touch panel.

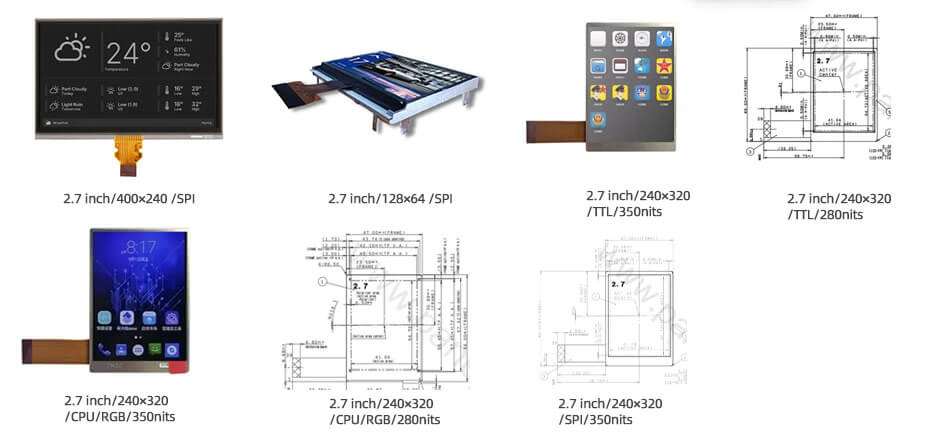

More 2.7 Inch Cycling Computer Bike Display For Reference
LS027B7DH01 (400×240, SPI, LCM, -20~70°C, 62.8×42.82mm)
ET027MN01-TW (128×64, CPU, LCM, -20~70°C, 72.4×49.7mm)
COM27H2P86ULC (240×320, TTL, LCM, 350nits, -20~70°C, 47×66mm)
COM27H2P88UTC (240×320, TTL, LCM, 280nits, -20~70°C, 47×66mm)
COM27H2P90ULC (240×320, CPU/RGB, LCM, 350nits, -20~70°C, 47×66mm)
COM27H2P92UTC (240×320, CPU/RGB, LCM, 280nits, -20~70°C, 47×66mm)
COM27H2R06ULC (240×320, SPI, LCM, 350nits, -20~70°C, 47×66mm)
