0.48"-5" LCD Display (2.4")

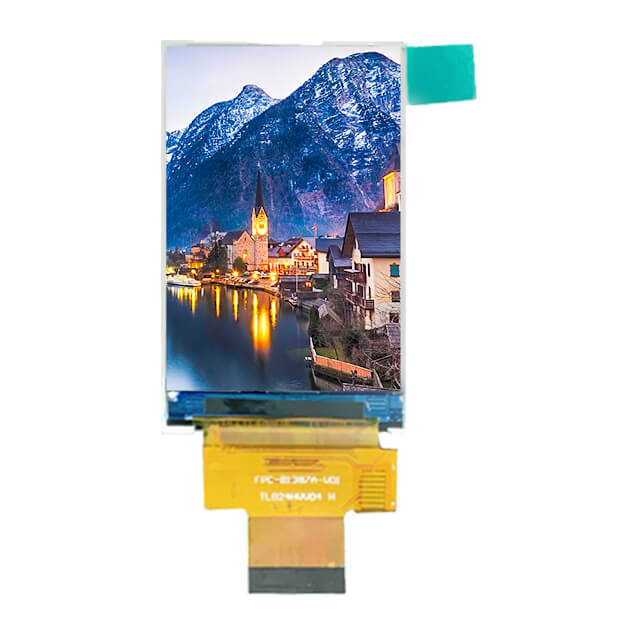

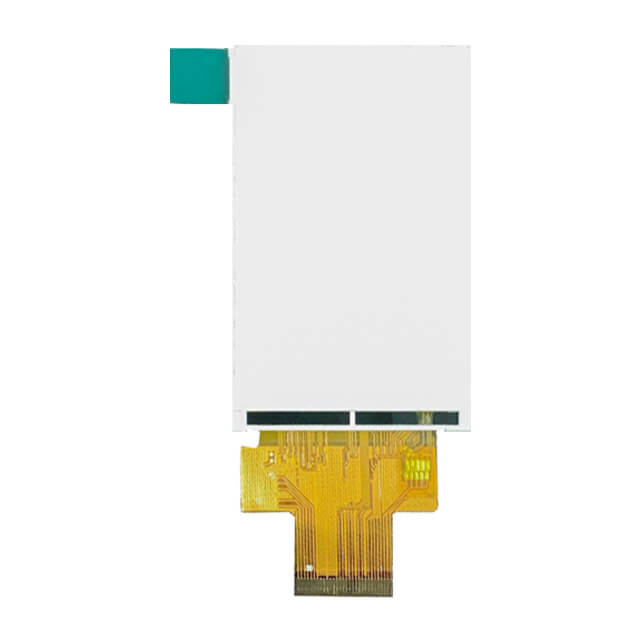

2.4 Inch 320x480 TFT LCD Module With IPS MIPI Interface ST7701S driver IC for handheld&PDA

  • Part No.:ET024HV06-G
  • Size:2.4″ inch
  • Resolution:320x480
  • Panel Interface:MIPI
  • Display mode:
  • Outline Dimension:38.9x61.3x201
  • Active Area:32.8x49.68
  • Viewing Angle L/R/U/D:ALL
  • Brightness（cd/m2）:
  • Operation / Storage Temp: /
  • Touch:no
Get a quote

ET024HV06-G

Parameter
Specification
Panel Model
ET024HV06-G
Panel Size
2.4 inch
Resolution (HV)
320(RGB)×480
Interface Type
MIPI
Active Area (mm)
32.8*49.68
Pixel Configuration
R.G.B.vertical Stripe
Technology Type
a-Si TFT
Display Colors
16.7M
Surface Treatment
Glare
Viewing Direction
ALL
OutlineDimensions (Wx Hx T)(mm)
38.9*61.3*2.1
With /Without Touch screen
Without CTP
Match Connector
0.5pitch, 30pin
Backlight Type
White LED
Weight (g)
TBD
Driver lC
ST7701s
