15.6 Inch 4K 3840x2160 UHD LCD Display 600nits High Brightness eDP IPS LCD Module

15.6 Inch 4k Display Overview

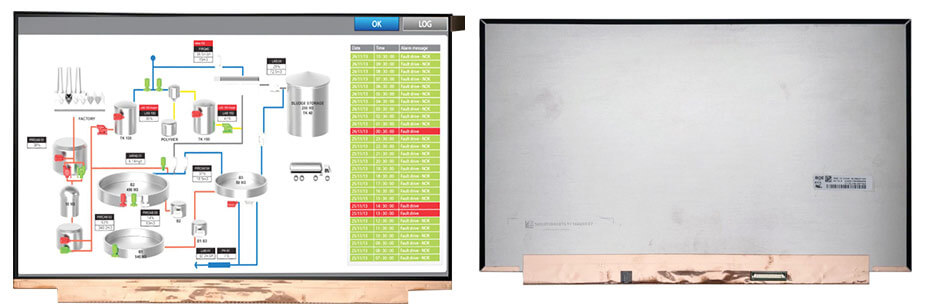

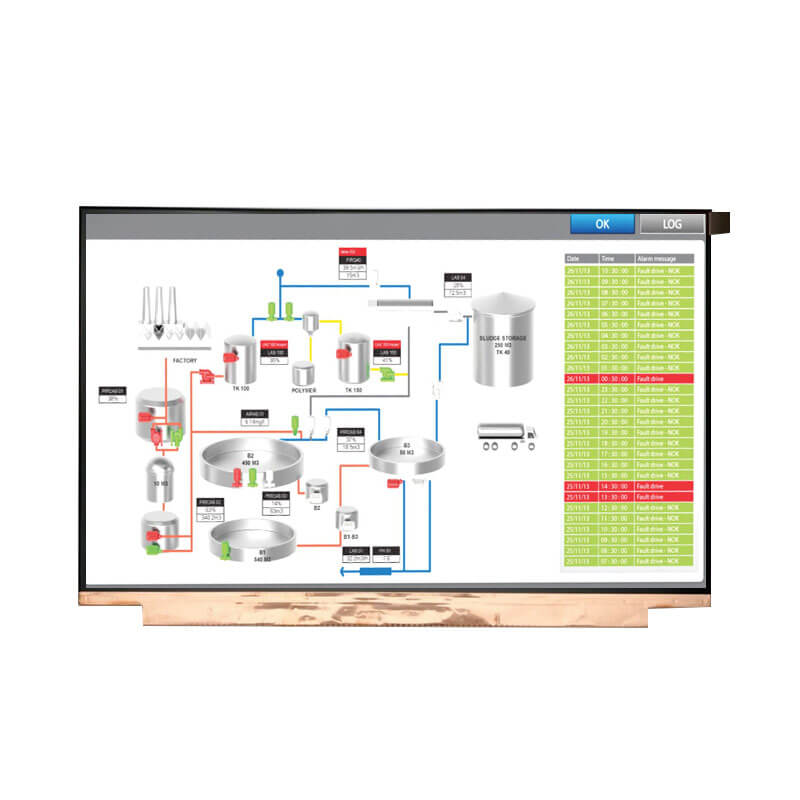

NE156QUM-NZ4 supports display 3840(RGB)×2160 (UHD) with aspect ratio of 16:9 (W:H), whose pixels are arranged in RGB Vertical Stripe, it's pixel density is 283 PPI. It features active area of 344.218(W)×193.622(H) mm, outline size of 349.92(W)×215.77(H)×2.6(D) mm, with surface treament of Antiglare, Hard coating (3H), net weight of 300g (Max.), shape stype of Slim (PCBA Flat, T≤3.2mm). As a ADS, Normally Black, Transmissive LCM product, NE156QUM-NZ4 can provides 600 cd/m² display brightness 1200:1 transimissive contrast ratio, 85/85/85/85 (Typ.)(CR≥10) (L/R/U/D) viewing angle, best view direction on Symmetry , and response time of 10 (Typ.)(Tr+Td) ms. Gray scale or the brightness of the sub-pixel is determined with a 8-bit gray scale signal for each dot, thus presenting a palette of 16.7M colors, also with performance of color gamut 100% (DCI-P3). This product adopted WLED as it's backlight systerm which was placed as Edge light type and have a working life time of 15K hours, With LED Driver. NE156QUM-NZ4 utilizes eDP (4 Lanes) as it's signal inputting systerm, which connected by 40 pins Connector with power supply voltage of 3.3V (Typ.). It's typical vertical frame rate (Fv) is 120Hz.

More 15.6 Inch 4k Display For Reference
NE156QUM-N64 (LCM, 3840x2160, eDP, 350nits, 0~50°C, 350.52x205.92mm)
NE156QUM-N66 (LCM, 3840x2160, eDP, 500nits, 0~50°C, 350.66x216.12mm)
NE156QUM-N6A (LCM, 3840x2160, eDP, 600nits, 0~50°C, 350.66x216.12mm)
NE156QUM-N6C (LCM, 3840x2160, eDP, 600nits, 0~50°C, 350.72x216.14mm)
NE156QUM-NZ4 (LCM, 3840x2160, eDP, 600nits, 0~50°C, 349.92x215.77mm)
NE156QUM-NM1 (LCM, 3840x2160, eDP, 1000nits, 0~50°C, 350.62x223.67mm)
ATNA56WR06-0 (OLED, 3840x2160, eDP, 440nits, -20~70°C, 348.218x215.572mm)
ATNA56WR14-0 (OLED, 3840x2160, eDP, 440nits, -20~70°C, 348.218x215.662mm)
ATNA56WR01-002 (OLED, 3840x2160, eDP, 400nits, -20~70°C, 348.218x215.572mm)
ATNA56WR18-0 (OLED, 3840x2160, eDP, 440nits, -20~70°C, 348.218x215.662mm)
EF60UBA68.A (OLED, 3840x2160, eDP, 400nits, -20~70°C, 348.48x201.62mm)
ATNA56WR04-0 (OLED, 3840x2160, eDP, 440nits, -20~70°C, 348.218x215.397mm)
