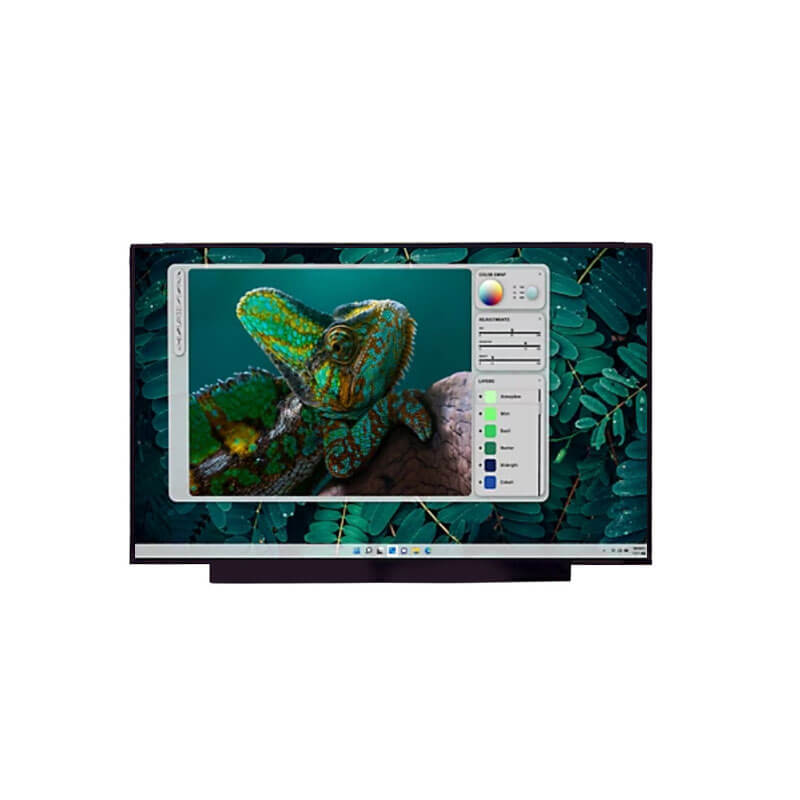

NE156QUM-N6A BOE 15.6 Inch TFT LCD Display 3840×2160 IPS High Brightness LCD Module

  • Part No.:NE156QUM-N6A
  • Size:15.6″ inch
  • Resolution:3840x2160
  • Panel Interface:eDP (4 Lanes)
  • Display mode:ADS,Transmissive

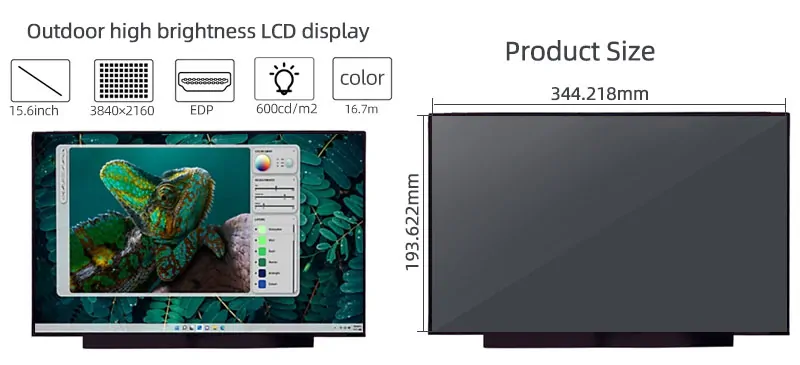

  • Outline Dimension:350.66x216.12mm
  • Active Area:344.218x193.622mm
  • Viewing Angle L/R/U/D:85/85/85/85 (Typ.)
  • Brightness(cd/m2):600cd/m²(Typ.)
  • Operation / Storage Temp:0~50°C / -20~70°C
  • Touch:no

NE156QUM-N6A Overview
NE156QUM-N6A is a 15.6 inch diagonal Oxide TFT-LCD display screen product from BOE, with a built-in WLED backlight, With LED Driver, without touch screen.NE156QUM-N6A supports display 3840(RGB)×2160 (UHD) with aspect ratio of 16:9 (W:H), whose pixels are arranged in RGB Vertical Stripe, according to calculation of Panelook it's pixel density is 283 PPI. As for mechanical detail, it features active area of 344.218(W)×193.622(H) mm, outline size of 350.66(W)×216.12(H)×2.6(D) mm, with surface treament of Antiglare, Hard coating (3H), net weight of 285g (Max.), shape stype of Slim (PCBA Flat, T≤3.2mm). As a ADS, Normally Black, Transmissive LCM product, NE156QUM-N6A can provides 600 cd/m² display brightness 1400:1 transimissive contrast ratio, 85/85/85/85 (Typ.)(CR≥10) (L/R/U/D) viewing angle, best view direction on Symmetry , and response time of 25 (Typ.)(Tr+Td) ms.

Feature
IPS
High Brightness 600 cd/m2
WLED Backlight
Matte

Application
For Outdoor high brightness.
