2.2 Inch Wide Temperature LCD Display 128×32 CPU RGB -40°C to 80°C Stretched Bar LCD Display

2.2 Inch Wide Temperature LCD Display Overview

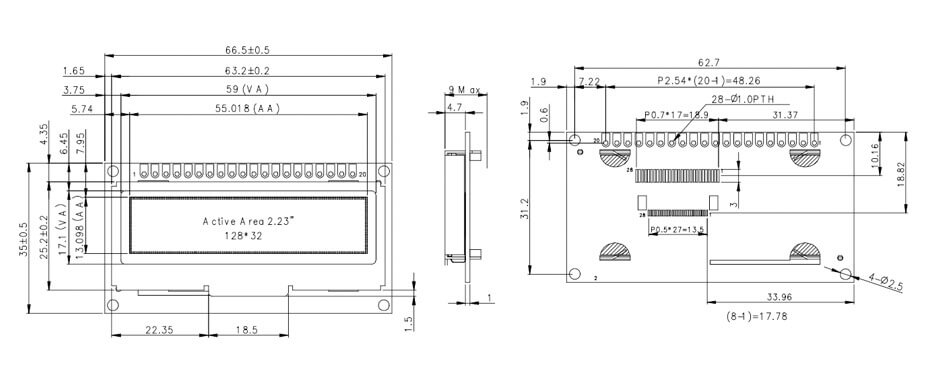

ET223-12832X001-P20 is a 2.2 inch diagonal stretched bar LCD display screen product. ET223-12832X001-P20 supports a display resolution of 128×32, whose pixels are arranged in a standard RGB stripe configuration. It features an active area of 55.018(W) × 13.098(H) mm and an outline dimension of 66.5(W) × 35(H) mm. The module adopts a transmissive display mode and supports a CPU/RGB interface for communication. ET223-12832X001-P20 provides a typical display brightness of 450 cd/m² and offers a wide viewing angle of 80/80/80/80 (L/R/U/D) for clear visibility from multiple directions. Designed for wide temperature applications, it supports an operating temperature range of -40°C to 80°C and a storage temperature range of -40°C to 85°C. This display module does not include a touch panel.

Wide Temperature Displays Technology

YOURITECH. Comprehensive Manufacturing of  Touchscreen, Driver Board Options

Youritech Driver Board
Youritech's R&D team provides experienced display panel motherboard solutions including industrial-grade and military-grade driver boards,manufacturing and designing industry-standard TTL/LVDS interface/CON driver boards, LCD driver boards/LCD inverters/EDP driver boards/4K driver boards,industrial displays solutions.

Youritech Production and Manufacturing
