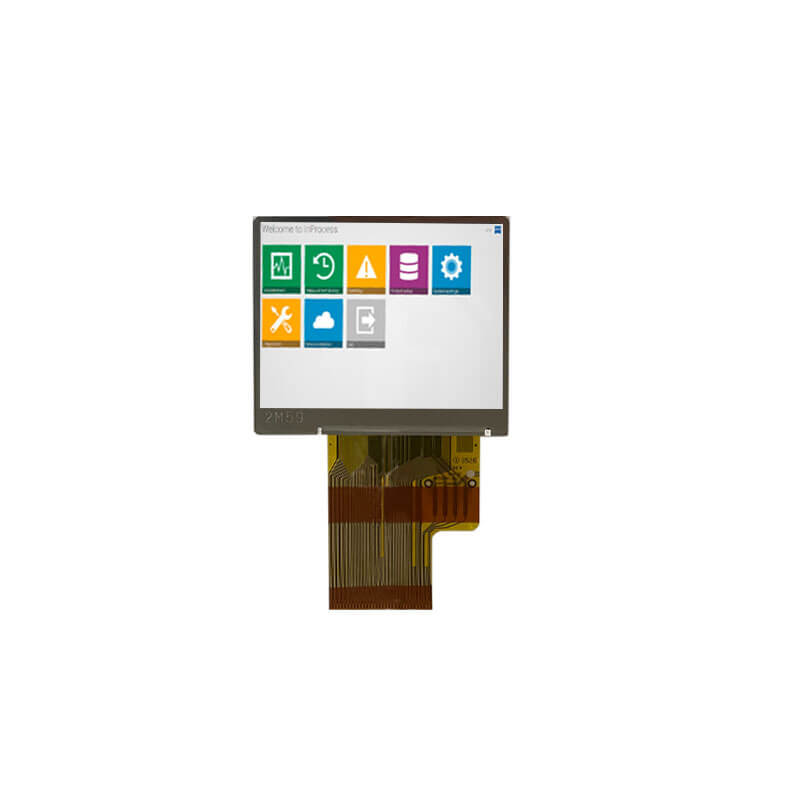

COM22T2P21XLC Ortustech 2.2 Inch TFT LCD Display Parallel RGB 320x240 LCD Panel For Handheld PDA

Part No.:COM22T2P21XLC
Size:2.2″ inch
Resolution:320x240
Panel Interface:Parallel RGB (1 ch,6/8-bit)
Display mode:Transmissive
Outline Dimension:49.96(H)x42.95(V)mm
Active Area:44.16(H)x33.12(V)mm
Viewing Angle L/R/U/D:80/80/80/80 (Min.)
Brightness（cd/m2）:500(Typ.)
Operation / Storage Temp:-20~70°C / -30~80°C
Touch:no

Overview
COM22T2P21XLC is a 2.2 inch diagonal a-Si TFT-LCD display screen product, with an incorporated WLED lighting system, without backlight driver, without touch screen.COM22T2P21XLC supports display 320(RGB)×240 (QVGA) with aspect ratio of 4:3 (W:H), whose pixels are arranged in RGB Vertical Stripe.It features active area of 44.16(W)×33.12(H) mm, outline size of 49.96(W)×42.95(H)×3.07(D) mm, viewing area size of 46.86(W)×35.82(H) mm, with surface treament of Hard coating (3H), net weight of 12.6g (Typ.). As a TN, Normally White, Transmissive LCM product, COM22T2P21XLC can provides 500 cd/m² display brightness 400:1 transimissive contrast ratio, 80/80/80/80 (Min.)(CR≥10) (L/R/U/D) viewing angle , and response time of 40/60 (Max.)(Tr/Td) ms.

Application
For andheld & PDA,Industrial.
