17"-31.5" Touch Screen (18.5")

18.5 Inch Capacitive Touch Screen G+G Multi-touch 16:9 Capacitive Touch Screen

Part No.:ET185CTP01
Size:18.5″ inch
Resolution:Optional
Panel Interface:I2C,USB,UART
Display mode:PCAP
Outline Dimension:446.05x271.18mm
Active Area:410.79x231.4mm
Viewing Angle L/R/U/D:Full view
Brightness（cd/m2）:Optional
Operation / Storage Temp:-20~70°C / -40~80°C
Touch:yes

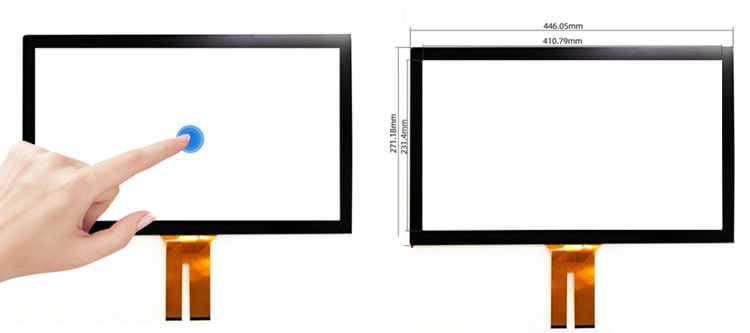

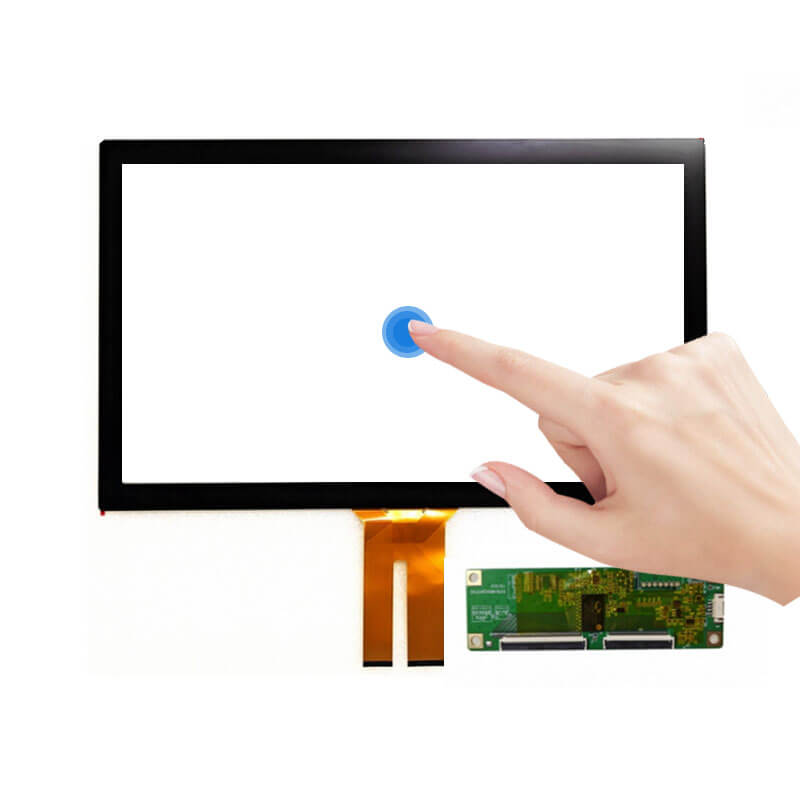

18.5 Inch Capacitive Touch Screen
Product structure: Glass/Glass
Surface hardness: Hard coating (6H)
Touch Points: Multi-touch
Interface Type: I2C, USB, UART
Display Area: 410.79x231.4 mm
Outline Dim.: 446.05x271.18 mm
Operation Temperature: -10 ~ 60°C
Storage Temperature: -20 ~ 70°C

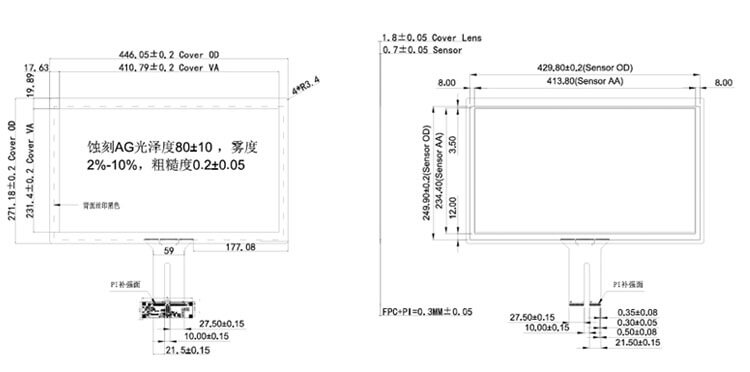

18.5 Inch Capacitive Touch Screen Drawing

The touch screens can be matched and integrated by all kinds of display panels

SPECIALTREATMENT
SUPPORT AG / AR / AF GLASS(ANTI-GLARE, ANT-REFLECTIVE, ANT-FINGERPRINT)

PRODUCTION AND MANUFACTURING

APPLICATIONS
