17"-31.5" Touch Screen (18.5")

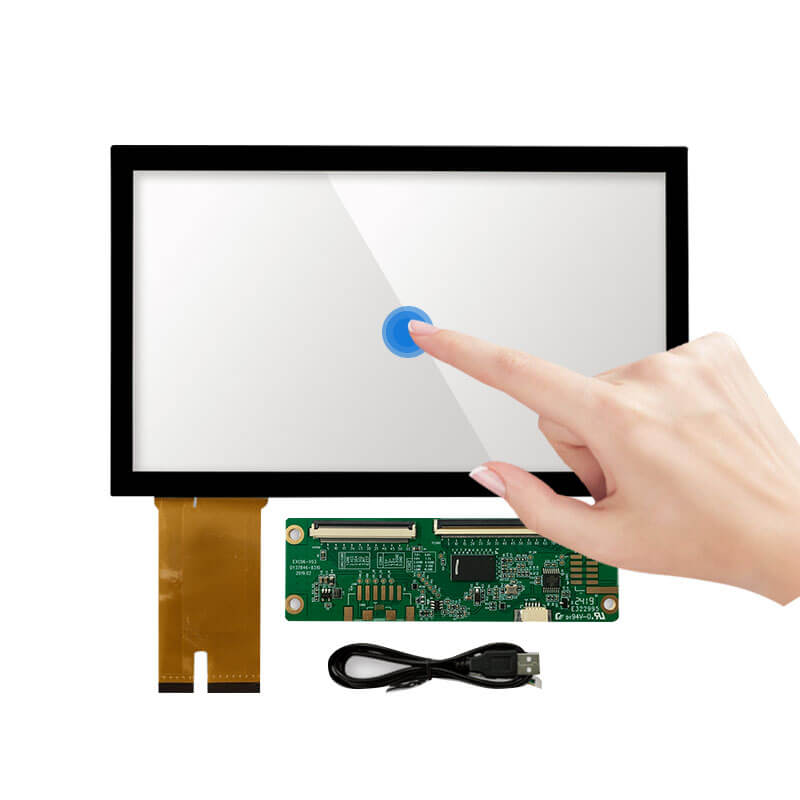

18.5 Inch PCAP Touch Screen G/G Mechanism EETI IC COB Type USB RS232 Capacitive Touch Screen

  • Part No.:ET185CTP02
  • Size:18.5″ inch
  • Resolution:Optional
  • Panel Interface:USB,RS232
  • Display mode:PCAP
  • Outline Dimension:446.05x271.18mm
  • Active Area:410.8x231.4mm
  • Viewing Angle L/R/U/D:Full view
  • Brightness（cd/m2）:Optional
  • Operation / Storage Temp:-10~60°C / -20~70°C
  • Touch:yes
Get a quote

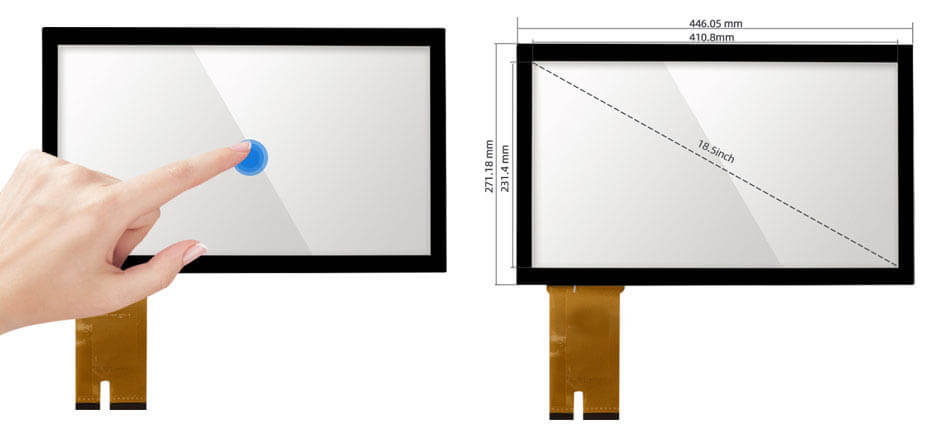

18.5 Inch Capacitive Touch Screen
Product structure: Glass/Glass
Surface hardness: Hard coating (7H)
Touch Points: Multi-touch
Interface Type: USB,RS232
Display Area: 410.8x231.4 mm
Outline Dim.: 446.05x271.18 mm
Operation Temperature: -10 ~ 60°C
Storage Temperature: -20 ~ 70°C

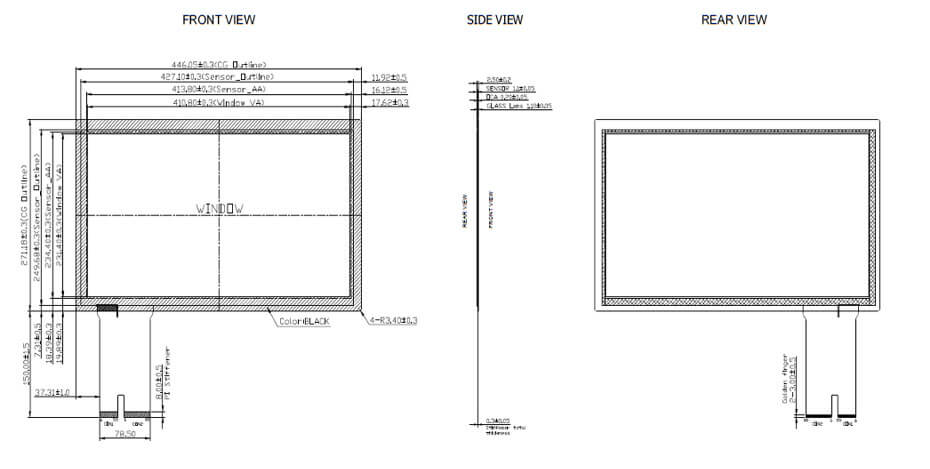

18.5 Inch Capacitive Touch Screen Drawing






The touch screens can be matched and integrated by all kinds of display panels



SPECIALTREATMENT
SUPPORT AG / AR / AF GLASS(ANTI-GLARE, ANT-REFLECTIVE, ANT-FINGERPRINT)

PRODUCTION AND MANUFACTURING

APPLICATIONS
