17 Inch Wide Temperature LCD Display Overview

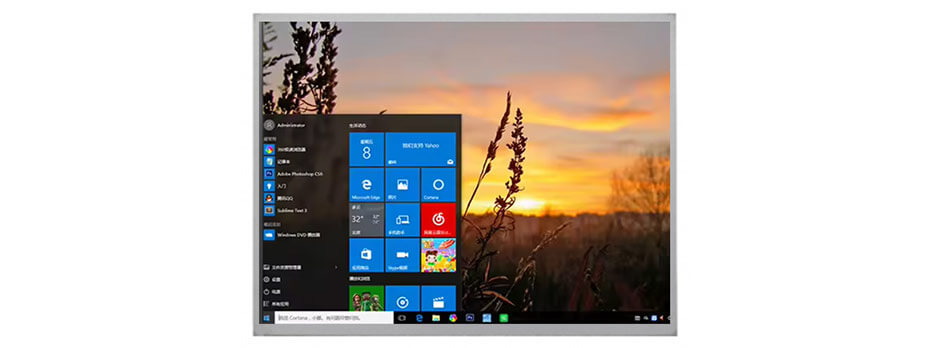

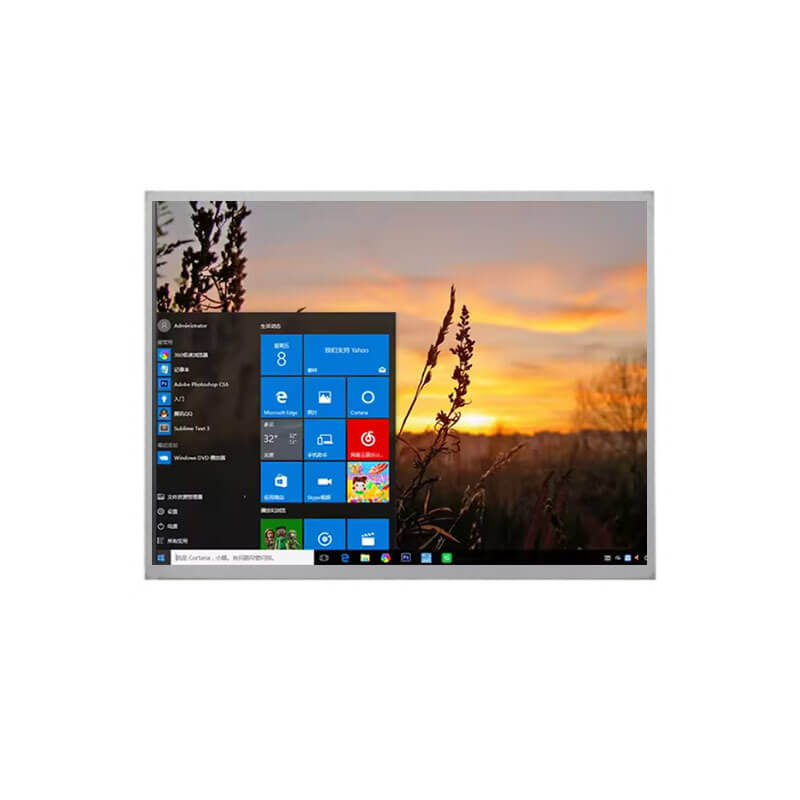

The ET170SX01-HT is a 17-inch wide-temperature, high-brightness TFT LCD display module. It features a resolution of 1280x1024, utilizes an LVDS interface, and delivers a high brightness of 1500 nits. The module supports a wide operating temperature range of -30°C to 85°C, with the same range for storage. Its active display area measures 338x270 mm, housed within an outline dimension of 358.5x296.5 mm. The display provides wide viewing angles of 85/85/80/80 (L/R/U/D) and does not incorporate touch functionality.
More 17 Inch Wide Temperature Displays For Reference

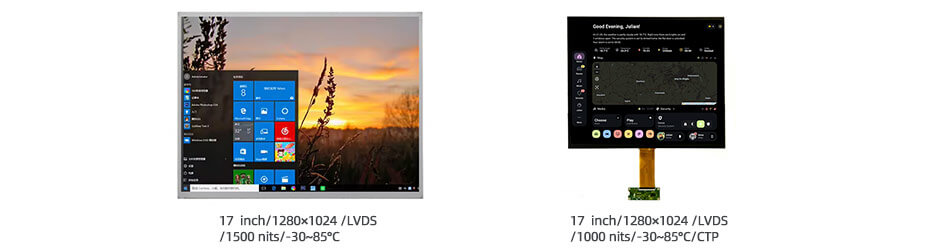

ET170SX01-HT (LCD, 1280×1024, LVDS, IPS, 1500nits, -30~85°C, 358.5×296.5mm)
ET170SX01-ZKT (LCD, 1280×1024, LVDS, IPS, 1000nits, -30~85°C, 358.5×296.5mm, CTP)
Wide Temperature Displays Technology
YOURITECH. Comprehensive Manufacturing of Touchscreen, Driver Board Options
Youritech Driver Board
Youritech's R&D team provides experienced display panel motherboard solutions including industrial-grade and military-grade driver boards,manufacturing and designing industry-standard TTL/LVDS interface/CON driver boards, LCD driver boards/LCD inverters/EDP driver boards/4K driver boards,industrial displays solutions.
Youritech Production and Manufacturing
At Youritech, we design and manufacture standard, semi-custom and full custom LCD/OLED display modules,touch screen,driver board,open frame. Contact us today,let our engineering team quickly and accurately feedback you with details.
