10.2"-17.3" LCD Display (16")

16 Inch Wide Temperature LCD Display 1200×1920 MIPI -30°C to 80°C TFT LCD Display

Part No.:ET160WU01-A
Size:16″ inch
Resolution:1200x1920
Panel Interface:MIPI
Display mode:Transmissive
Outline Dimension:232.82x363.98mm
Active Area:215.42x344.68mm
Viewing Angle L/R/U/D:80/80/80/80
Brightness（cd/m2）:300nits
Operation / Storage Temp:-30~80°C / -30~80°C
Touch:no

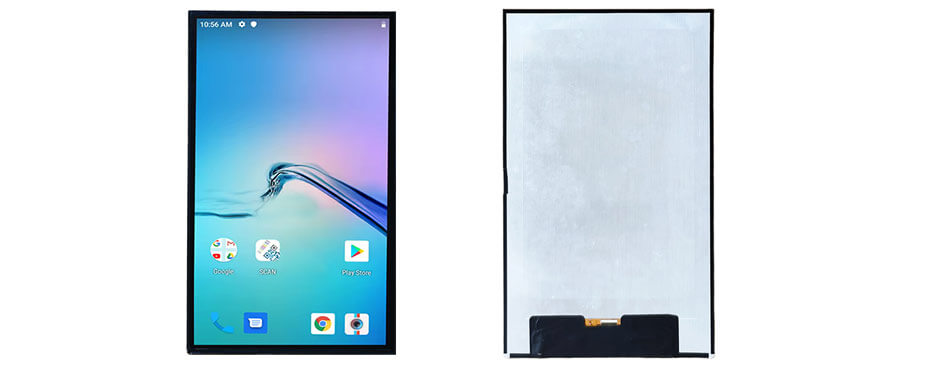

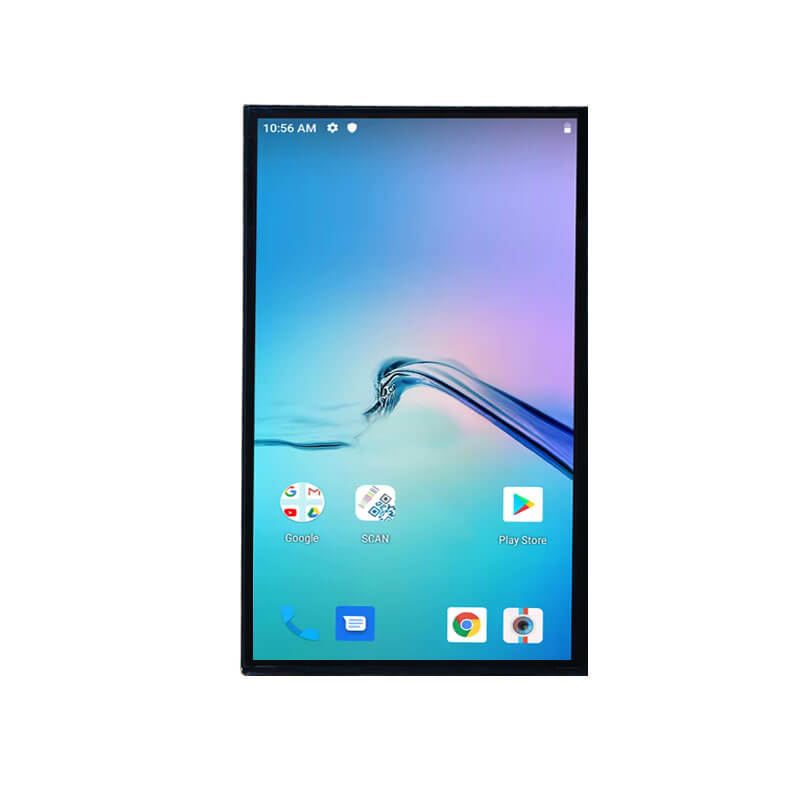

16 Inch Wide Temperature LCD Display Overview
The ET160WU01-A is a 16-inch wide-temperature TFT LCD display module. It features a resolution of 1200x1920, utilizes a MIPI interface, and provides a brightness of 300 nits. The module operates within a wide temperature range of -30°C to 80°C, with the same range for storage. Its active display area measures 215.42x344.68 mm, housed within an outline dimension of 232.82x363.98 mm. The display offers symmetrical viewing angles of 80/80/80/80 (L/R/U/D) and does not incorporate touch functionality.

Wide Temperature Displays Technology

YOURITECH. Comprehensive Manufacturing of Touchscreen, Driver Board Options

Youritech Driver Board
Youritech's R&D team provides experienced display panel motherboard solutions including industrial-grade and military-grade driver boards,manufacturing and designing industry-standard TTL/LVDS interface/CON driver boards, LCD driver boards/LCD inverters/EDP driver boards/4K driver boards,industrial displays solutions.
