LCD above 17.3" (18.5")

18.5 Inch Wide Temperature LCD Display 1920×1080 LVDS -30°C to 80°C High Brightness 1200nits TFT LCD Display

Part No.:ET185FH01-RX
Size:18.5″ inch
Resolution:1920x1080
Panel Interface:LVDS
Display mode:Transmissive
Outline Dimension:430.4x254.6mm
Active Area:408.96x230.04mm
Viewing Angle L/R/U/D:85/85/85/85
Brightness（cd/m2）:1200nits
Operation / Storage Temp:-30~80°C / -30~85°C
Touch:no

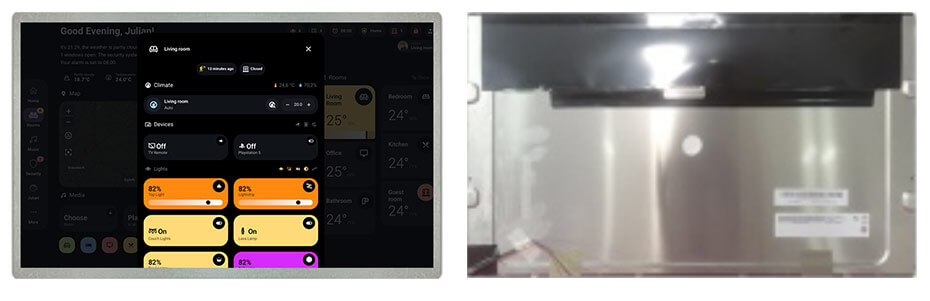

18.5 Inch Wide Temperature LCD Display Overview
18.5 Inch Wide Temperature LCD Display 1920×1080 LVDS -30°C to 80°C High Brightness 1200nits TFT LCD Display.

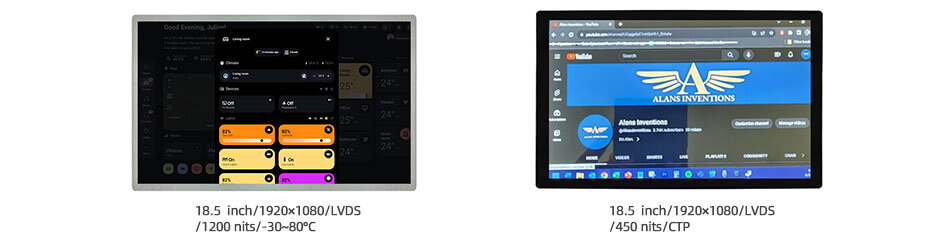

More 18.5 Inch Wide Temperature Displays For Reference
ET185FH01-RX (LCD, 1920×1080, LVDS, IPS, 1200nits, -30~80°C, 430.4×254.6mm)
ET185FH01-YXT (LCD, 1920×1080, LVDS, IPS, 450nits, -40~60°C, 440.37×265.9mm, CTP)

Wide Temperature Displays Technology

YOURITECH. Comprehensive Manufacturing of Touchscreen, Driver Board Options

Youritech Driver Board
Youritech's R&D team provides experienced display panel motherboard solutions including industrial-grade and military-grade driver boards,manufacturing and designing industry-standard TTL/LVDS interface/CON driver boards, LCD driver boards/LCD inverters/EDP driver boards/4K driver boards,industrial displays solutions.

Youritech Production and Manufacturing

No specification brief is filled in!
