17.3 Inch High Brightness Display 1500nits IPS 1920x1080 LVDS TFT LCD Display

17.3 Inch High Brightness LCD Display Overview

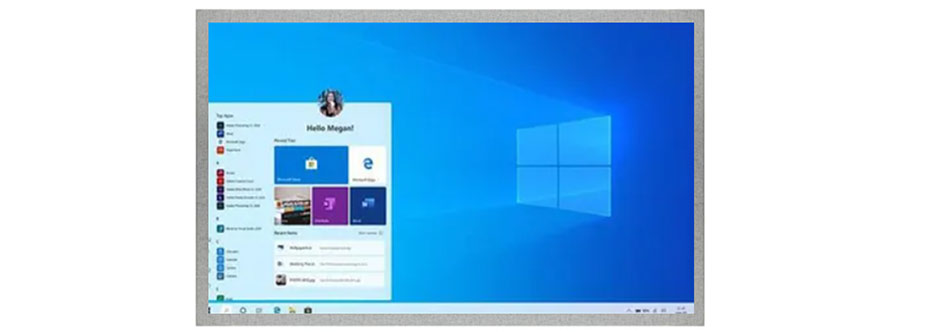

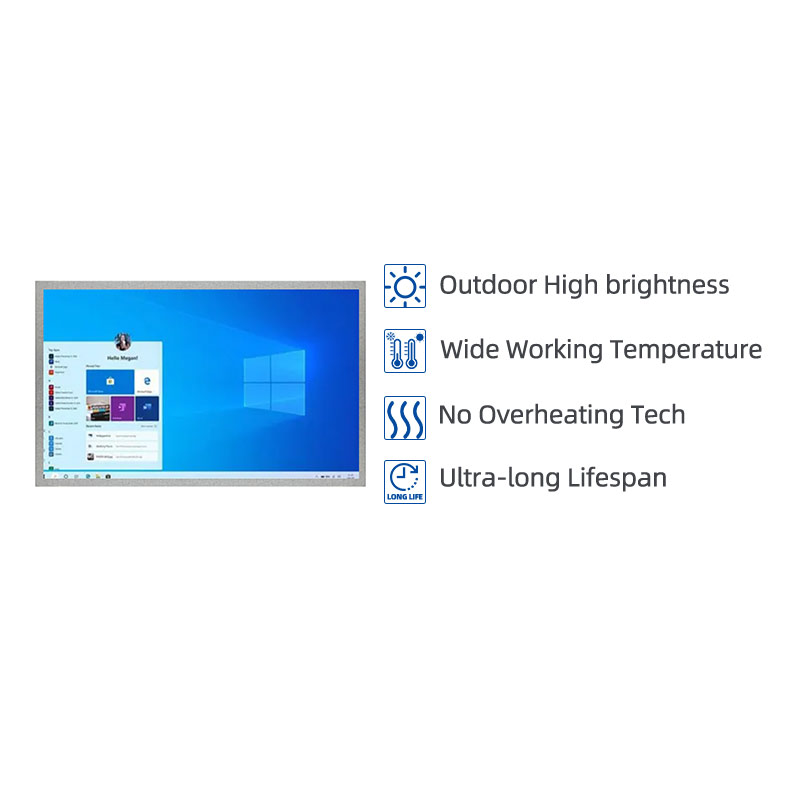

ET173FH01-HT is a 17.3-inch high-brightness IPS TFT LCD display with a transmissive display mode and an LVDS interface. It supports a 1920 × 1080 (FHD) resolution, offers a typical brightness of 1500 cd/m², and provides viewing angles of 80°/80°/60°/80° (L/R/U/D). The display has an active area of 381.888 × 214.812 mm and an outline dimension of 403 × 240 mm. It operates in temperatures from −20 °C to 60 °C and can be stored between −30 °C and 70 °C, without touch functionality.

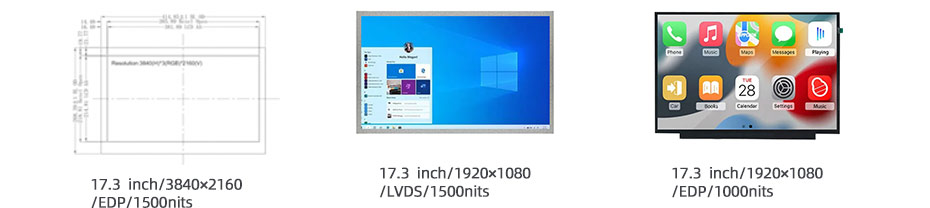

More 17.3 Inch High Brightness Display For Reference
ET173UH01-H (3840x2160, eDP, 1500nits, 0~50°C, 414.85x268mm)
ET173FH01-HT (1920x1080, LVDS, 1500nits, -20~60°C, 403x240mm)
ET173FH01-HG (1920x1080, eDP, 1000nits, -20~70°C, 389.95x227.07mm)

Outdoor High Brightness Displays Technology

YOURITECH. Comprehensive Manufacturing of  Touchscreen, Driver Board Options

Youritech Driver Board
Youritech's R&D team provides experienced display panel motherboard solutions including industrial-grade and military-grade driver boards,manufacturing and designing industry-standard TTL/LVDS interface/CON driver boards, LCD driver boards/LCD inverters/EDP driver boards/4K driver boards,industrial displays solutions.

Production and Manufacturing
