17.3 Inch High Brightness LCD Display Overview

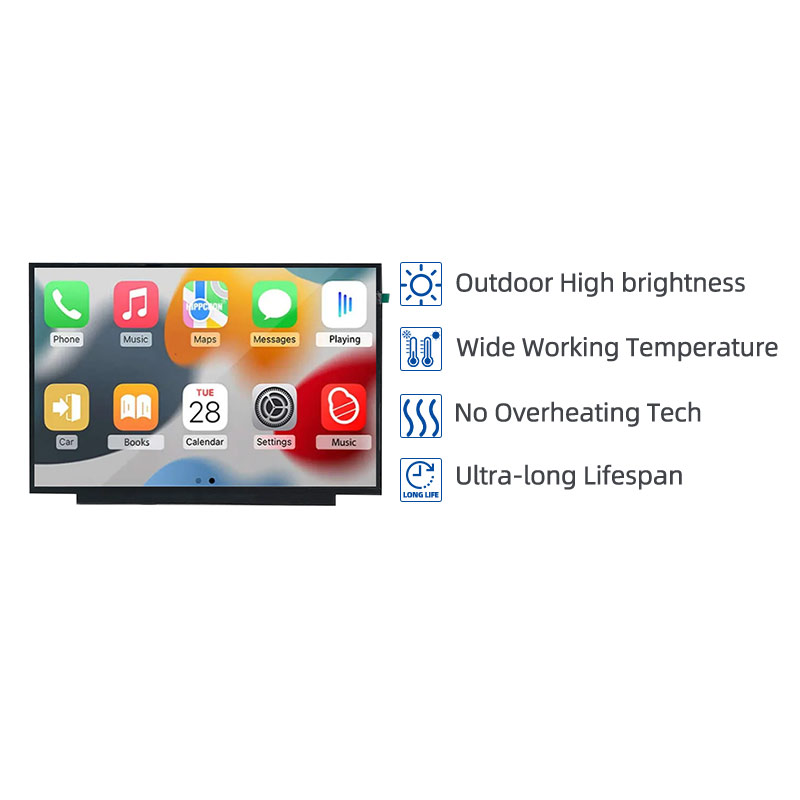

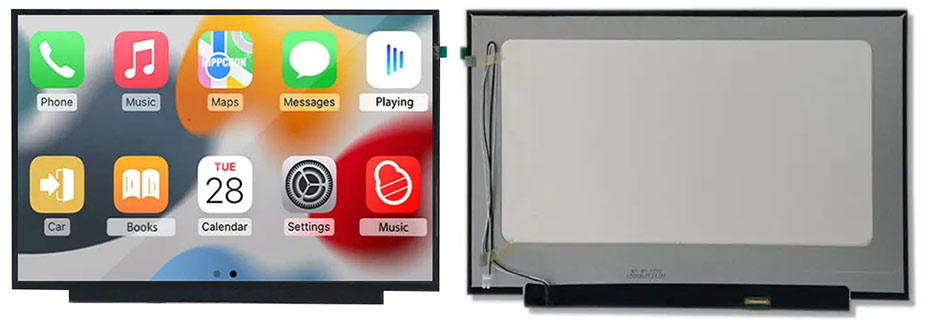

ET173FH01-HG is a 17.3-inch high-brightness IPS TFT LCD display with a transmissive display mode and an eDP interface. It supports a 1920 × 1080 (FHD) resolution, delivers a typical brightness of 1000 cd/m², and provides full viewing angles of 85°/85°/85°/85° (L/R/U/D). The display features an active area of 381.888 × 214.812 mm and an outline dimension of 389.95 × 227.07 mm. It operates within −20 °C to 70 °C and can be stored in the same temperature range, without touch functionality.

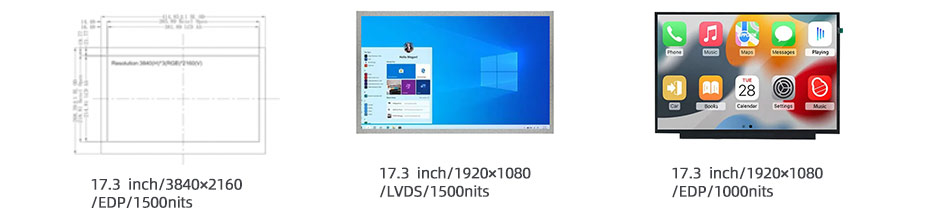

More 17.3 Inch High Brightness Display For Reference
ET173UH01-H (3840x2160, eDP, 1500nits, 0~50°C, 414.85x268mm)
ET173FH01-HT (1920x1080, LVDS, 1500nits, -20~60°C, 403x240mm)
ET173FH01-HG (1920x1080, eDP, 1000nits, -20~70°C, 389.95x227.07mm)
Outdoor High Brightness Displays Technology
YOURITECH. Comprehensive Manufacturing of Touchscreen, Driver Board Options
Youritech Driver Board
Youritech's R&D team provides experienced display panel motherboard solutions including industrial-grade and military-grade driver boards,manufacturing and designing industry-standard TTL/LVDS interface/CON driver boards, LCD driver boards/LCD inverters/EDP driver boards/4K driver boards,industrial displays solutions.
Production and Manufacturing
At Youritech, we design and manufacture standard, semi-custom and full custom LCD/OLED display modules,touch screen,driver board,open frame. Contact us today,let our engineering team quickly and accurately feedback you with details.
