10.2"-17.3" LCD Display (17.3")

17.3 Inch High Brightness Display 1500nits IPS 3840x2160 eDP TFT LCD Display

Part No.:ET173UH01-H
Size:17.3″ inch
Resolution:3840x2160
Panel Interface:eDP
Display mode:Transmissive

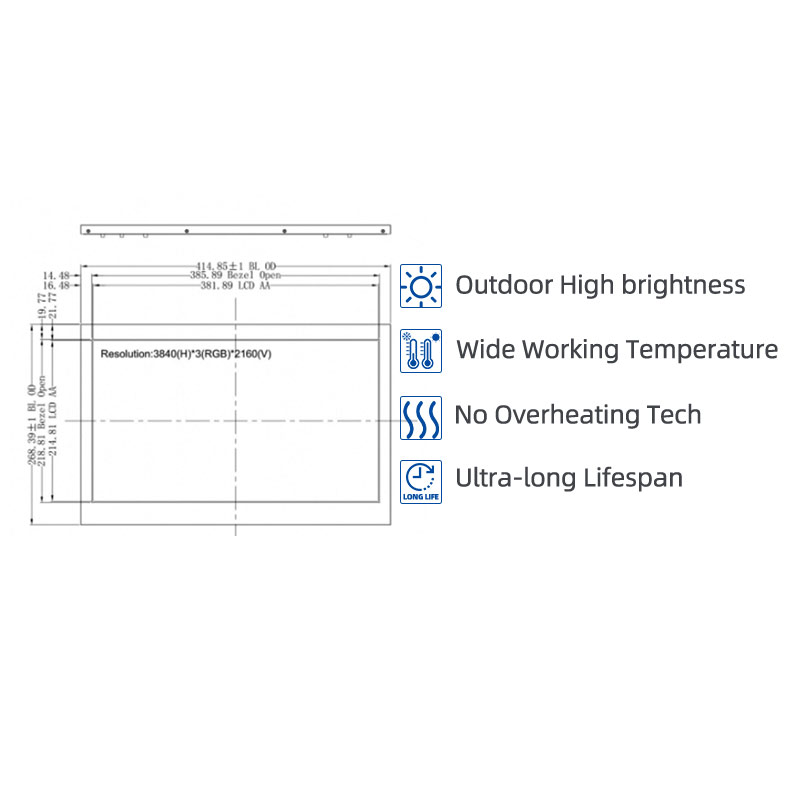

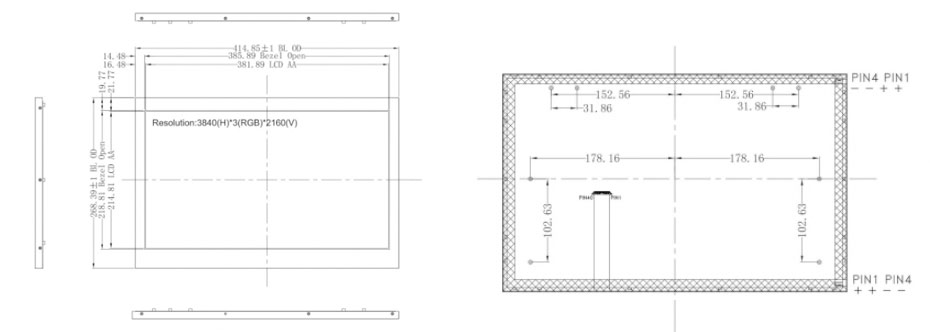

Outline Dimension:414.85x268mm
Active Area:381.89x214.81mm
Viewing Angle L/R/U/D:89/89/89/89
Brightness（cd/m2）:1500(Typ.)
Operation / Storage Temp:0~50°C / -20~60°C
Touch:no

17.3 Inch High Brightness LCD Display Overview
17.3 Inch High Brightness Display 1500nits IPS 3840x2160 eDP TFT LCD Display.

More 17.3 Inch High Brightness Display For Reference
ET173UH01-H (3840x2160, eDP, 1500nits, 0~50°C, 414.85x268mm)
ET173FH01-HT (1920x1080, LVDS, 1500nits, -20~60°C, 403x240mm)
ET173FH01-HG (1920x1080, eDP, 1000nits, -20~70°C, 389.95x227.07mm)

Outdoor High Brightness Displays Technology

YOURITECH. Comprehensive Manufacturing of Touchscreen, Driver Board Options

Youritech Driver Board
Youritech's R&D team provides experienced display panel motherboard solutions including industrial-grade and military-grade driver boards,manufacturing and designing industry-standard TTL/LVDS interface/CON driver boards, LCD driver boards/LCD inverters/EDP driver boards/4K driver boards,industrial displays solutions.
