15 Inch High Brightness LCD Display Overview

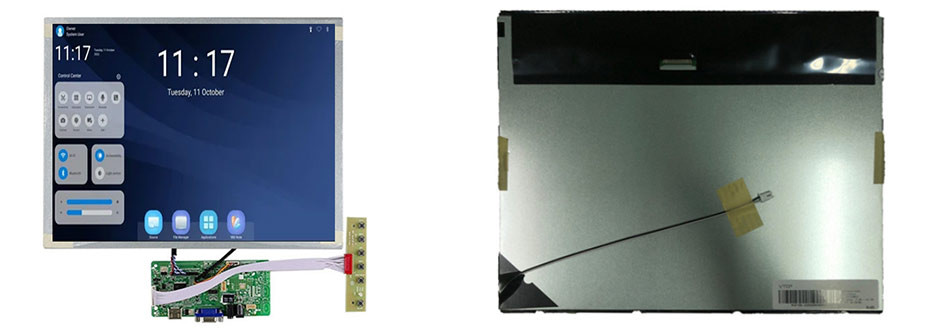

ET150WX01-ZKT is a 15-inch diagonal high-brightness TFT LCD display with a transmissive display mode and LVDS interface. It supports a resolution of 1024 × 768 with a typical brightness of 1000 cd/m², delivering clear visibility even in high-ambient-light environments. The panel features wide viewing angles of 80°/80°/60°/80° (L/R/U/D), an active area of 304.1 × 228.1 mm, and an outline dimension of 326.5 × 253.5 mm. Designed for demanding applications, it operates reliably over a wide temperature range of −30 to 85 °C for both operation and storage, and it integrates capacitive touch functionality.

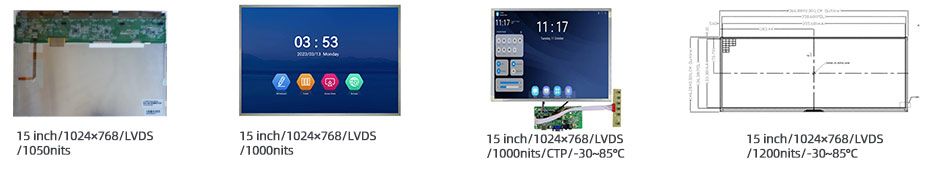

More 15 Inch High Brightness Display For Reference
ET150WU01-LP (1600x1200, LVDS, 1050nits, -30~70°C, 318.7x242.65mm)
ET150WX01-R (1024x768, LVDS, 1000nits, -20~70°C, 37.4x231.3mm)
ET150WX01-ZKT (1024x768, LVDS, 1000nits, -30~85°C, 326.5x253.5mm, CTP)
ET150BA01-GL (1920x720, LVDS, 1200nits, -30~85°C, 366.88x146.28mm)
Outdoor High Brightness Displays Technology
YOURITECH. Comprehensive Manufacturing of Touchscreen, Driver Board Options
Youritech Driver Board
Youritech's R&D team provides experienced display panel motherboard solutions including industrial-grade and military-grade driver boards,manufacturing and designing industry-standard TTL/LVDS interface/CON driver boards, LCD driver boards/LCD inverters/EDP driver boards/4K driver boards,industrial displays solutions.
Production and Manufacturing
At Youritech, we design and manufacture standard, semi-custom and full custom LCD/OLED display modules,touch screen,driver board,open frame. Contact us today,let our engineering team quickly and accurately feedback you with details.
