15.3 Inch High Brightness LCD Display Overview

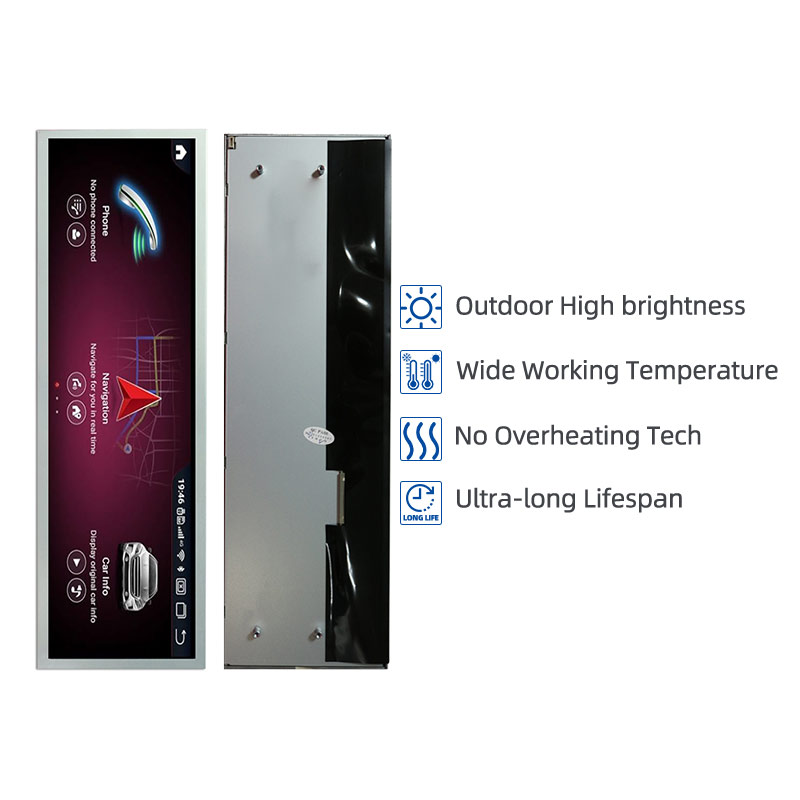

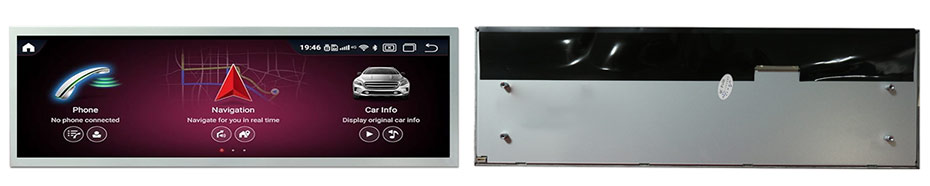

ET153BA01-R is a 15.3-inch diagonal high-brightness TFT LCD display featuring a transmissive display mode and an LVDS interface. It supports a resolution of 1280 × 370 and provides a typical brightness of 700 cd/m² with ultra-wide viewing angles of 89° in all directions. The display offers an active area of 374.78 × 100.14 mm and an outline dimension of 396 × 124 mm. Designed for reliable performance in standard industrial environments, it operates within a temperature range of 0 to 50 °C and supports storage temperatures from −20 to 65 °C. This model does not include touch functionality.
Outdoor High Brightness Displays Technology
YOURITECH. Comprehensive Manufacturing of Touchscreen, Driver Board Options
Youritech Driver Board
Youritech's R&D team provides experienced display panel motherboard solutions including industrial-grade and military-grade driver boards,manufacturing and designing industry-standard TTL/LVDS interface/CON driver boards, LCD driver boards/LCD inverters/EDP driver boards/4K driver boards,industrial displays solutions.
Production and Manufacturing
At Youritech, we design and manufacture standard, semi-custom and full custom LCD/OLED display modules,touch screen,driver board,open frame. Contact us today,let our engineering team quickly and accurately feedback you with details.
