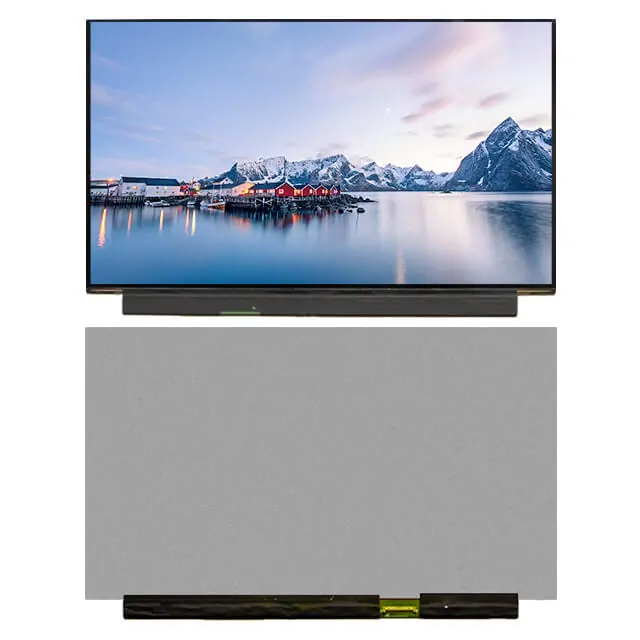

15.6" inches OLED laptop lcd/led screen panel 3840×2560 amoled notebook display monitors 4K 440nits super high contrast oled panel

Product size

15.6 inch

Type

Graphic OLED ;Si-OLED

Pixel Format

3840(RGB)×2160   (UHD)  283PPI

Configuration

RGB Vertical Stripe

Active Area

344.218 × 193.622 (H×V)

Outline Dim.

348.218 × 215.572 × 2.19 (H×V×D)

Bezel Area

40.32(W)×53.76(H) mm

Treatment

Antiglare

Luminance

440 cd/m² (Typ.)

Contrast Ratio

100000:1

Outline Shape

Slim (PCBA Flat, T≤3.2mm)

Response Time

1 (Typ.)(Tr+Tf) ms

Viewing Angle

85/85/85/85 (Typ.)(CR≥10)

Operating Mode

-

Support Color

1.06B   100% DCI-P3

Light Source

self

Weight

-

Designed For

military project/laptop

Frequency

60Hz

Touch Panel

-

Interface Type

eDP (4 Lanes) , eDP1.4b , HBR2 (5.4G / lane) , 40 pins Connector

Power Supply

3.3V (Typ.)

Environment

Operating Temperature: -20 ~ 70 °C ; Storage Temperature: -40 ~ 85 °C
