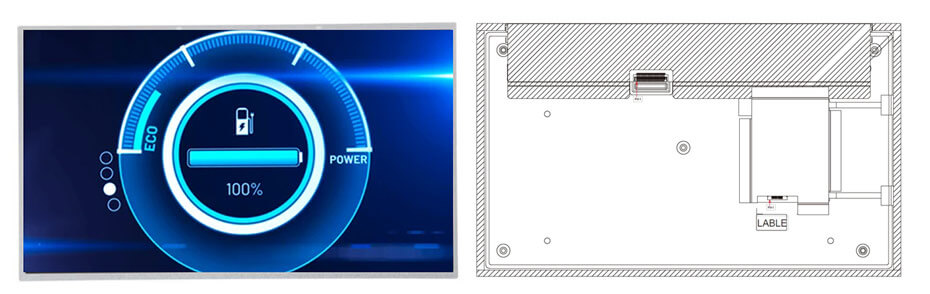

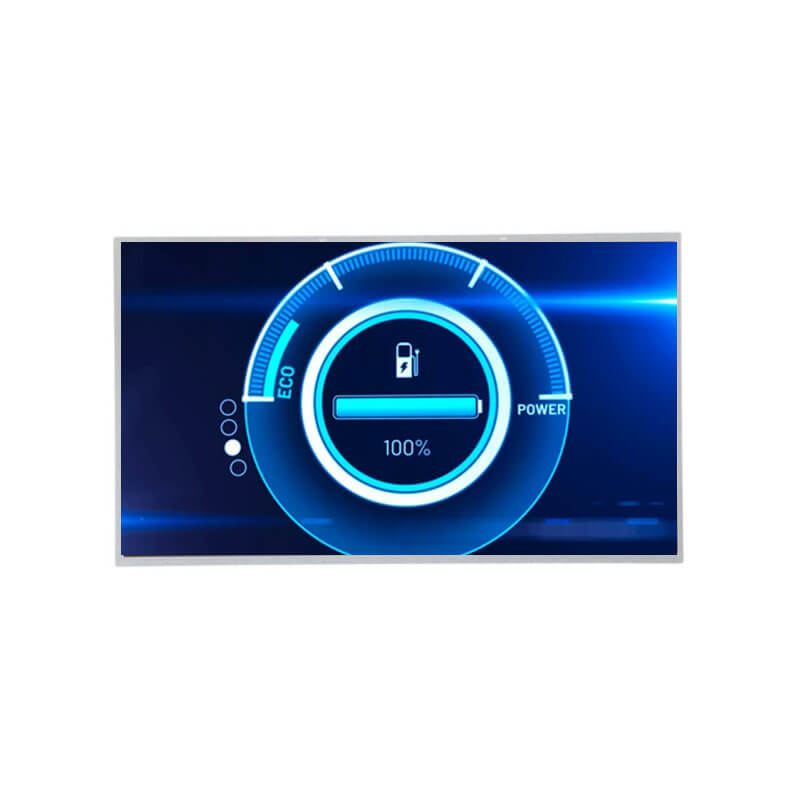

TX40D202VM0BAA supports display 1920(RGB)×1080 (FHD) with aspect ratio of 16:9 (W:H), whose pixels are arranged in RGB Vertical Stripe. It features active area of 344.16(W)×193.59(H) mm, outline size of 367.86(W)×219.51(H)×15.2(D) mm, net weight of 670g (Typ.). As a IPS, Normally Black, Transmissive LCM product, TX40D202VM0BAA can provides 1500 cd/m² display brightness 1200:1 transimissive contrast ratio, 85/85/85/85 (Typ.)(CR≥10) (L/R/U/D) viewing angle, best view direction on Symmetry , and response time of 30 (Typ.)(Tr+Td) ms. Gray scale or the brightness of the sub-pixel is determined with a 8-bit gray scale signal for each dot, thus presenting a palette of 16.7M colors. This product adopted WLED as it's backlight systerm which was placed as Edge light type and have a working life time of 70K hours, With LED Driver. TX40D202VM0BAA utilizes LVDS (2 ch, 8-bit) as it's signal inputting systerm, which connected by 50 pins Connector with power supply voltage of 5.0V (Typ.). It's typical vertical frame rate (Fv) is 60Hz.

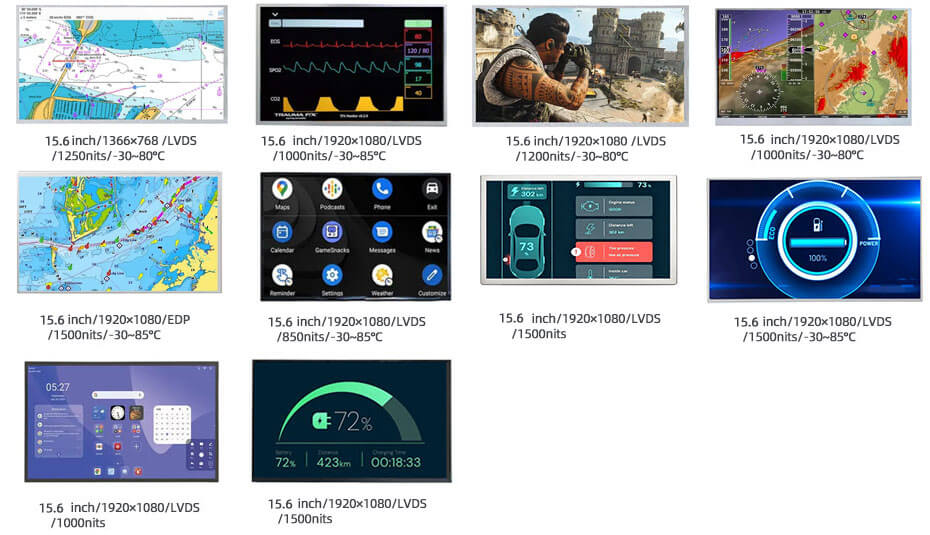

More 15.6 Inch EV Charger Display For Reference
NL13676BC25-07F (1366×768, LVDS, 1250nits, -30~80°C, 363.8×215.9mm)
G156HAN04.0 (1920×1080, LVDS, 1000nits, -30~85°C, 363.8×215.9mm)
G156HCE-LH1 (1920×1080, LVDS, 1200nits, -30~80°C, 363.8×215.9mm)
P1560FHF2MA00 (1920×1080, LVDS, 1000nits, -30~80°C, 363.8×215.9mm)
NL192108BC18-06F (1920×1080, eDP, 1500nits, -30~85°C, 363.8×215.9mm)
HSD156JUW2-A12 (1920×1080, LVDS, 850nits, -30~85°C, 363.7×215.7mm)
G156HAN04.1 (1920×1080, LVDS, 1500nits, -30~70°C, 363.8×215.9mm)
TX40D202VM0BAA (1920×1080, LVDS, 1500nits, -30~85°C, 367.86×219.51mm)
ET156FH06-T (1920×1080, LVDS, 1000nits, -20~70°C, 360×212.3mm)
ET156FH01-RT (1920×1080, LVDS, 1500nits, -20~80°C, 353.36×208.09mm, In-Cell Touch)
-Custom PCAP touch solutions (glove/wet touch, AG/AR/AF glass, optical bonding)
-Embedded mainboards (Android / Linux, ARM platforms, multi-interface support)
-Display + touch + board system integration
-Industrial design for EV chargers (IP65, wide temperature, high reliability)
-Communication & HMI support
High-Brightness LCD Displays
Sunlight-readable screens for outdoor charging stations.
PCAP Touchscreen Integration
Responsive multi-touch operation with glove and wet-touch support.
Rugged Cover Glass
Anti-glare, anti-scratch and impact-resistant protective glass.
Embedded Mainboards
Android, Linux and custom controller board solutions.
Industrial Connectivity
HDMI, USB, CAN Bus, RS232/RS485 and Ethernet interfaces.
Outdoor Protection
IP65 waterproof design, UV resistance and wide-temperature operation.
Optical Bonding Technology
Enhanced visibility, durability and reduced reflection.
Custom HMI Development
Complete display, touch and embedded system integration for EV chargers.
-AC Charging Stations
-DC Fast Charging Stations
-Ultra-Fast Charging Networks
-Smart Charging Kiosks
-Fleet Charging Infrastructure
-Renewable Energy Charging Systems
-Battery Swapping Stations
At Youritech, we design and manufacture standard, semi-custom and full custom LCD/OLED display modules,touch screen,driver board,open frame. Contact us today,let our engineering team quickly and accurately feedback you with details.
