10.2"-17.3" LCD Display (15.6")

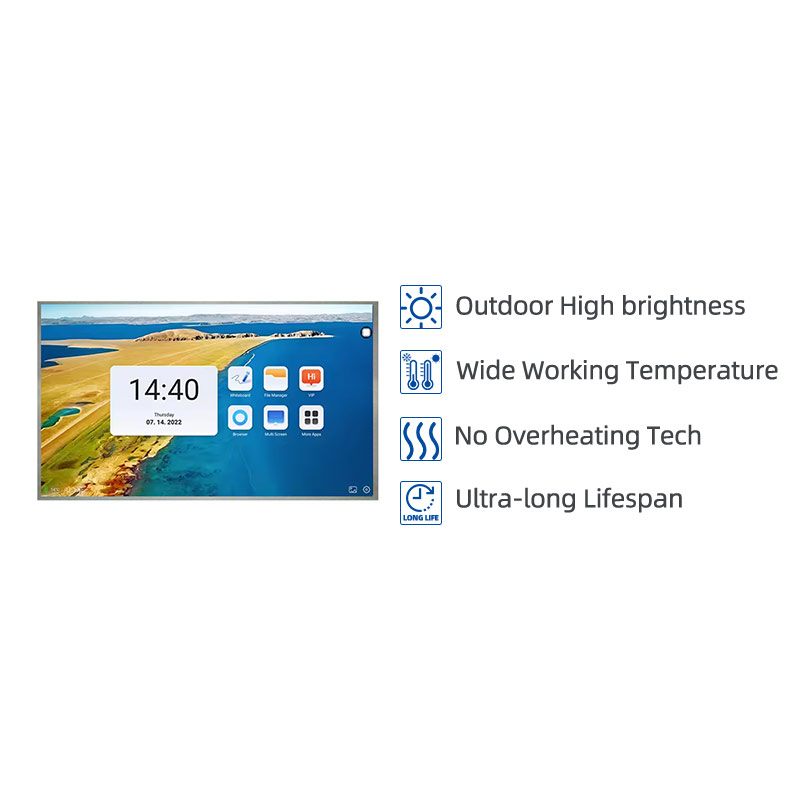

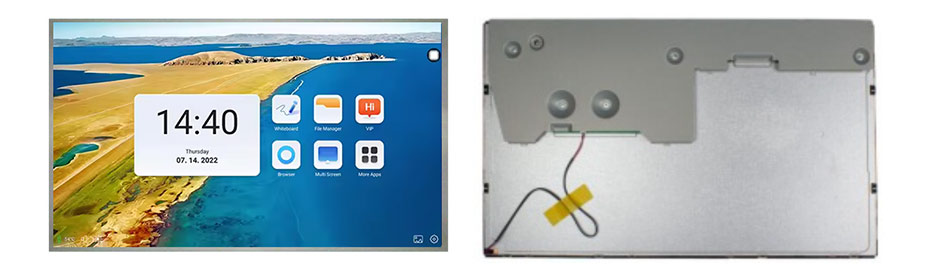

15.6 Inch High Brightness Display 2000nits IPS 1366x768 LVDS TFT LCD Display

  • Part No.:ET156XW01-V
  • Size:15.6″ inch
  • Resolution:1366x768
  • Panel Interface:LVDS
  • Display mode:Transmissive
  • Outline Dimension:363.8x215.9mm
  • Active Area:344.232x193.563mm
  • Viewing Angle L/R/U/D:85/85/80/80
  • Brightness(cd/m2):2000(Typ.)
  • Operation / Storage Temp:0~60°C / -20~60°C
  • Touch:no

15.6 Inch High Brightness LCD Display Overview
15.6 Inch High Brightness Display 2000nits IPS 1366x768 LVDS TFT LCD Display.

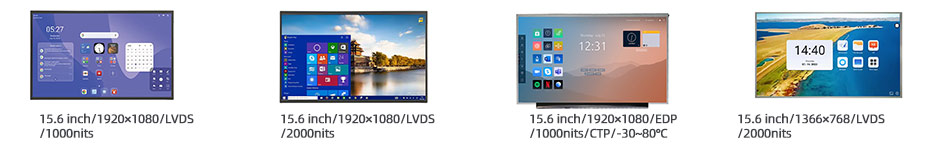

More 15.6 Inch High Brightness Display For Reference
ET156FH06-T (1920x1080, LVDS, 1000nits, -20~70°C, 360x212.3mm)
ET156FH01-R (1920x1080, LVDS, 2000nits, -20~80°C, 359.5x206.74mm)
ET156FH01-ZKT (1920x1080, eDP, 1000nits, -30~80°C, 360x222.45mm, CTP)
ET156XW01-V (1366x768, LVDS, 2000nits, 0~60°C, 363.8x215.9mm)
