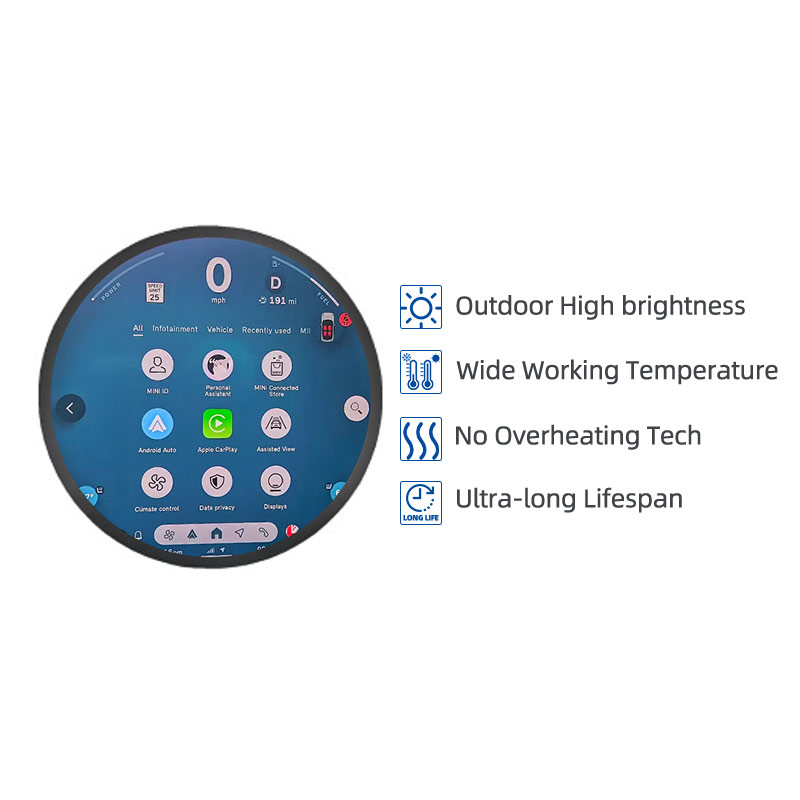

15.7 Inch High Brightness LCD Display Overview

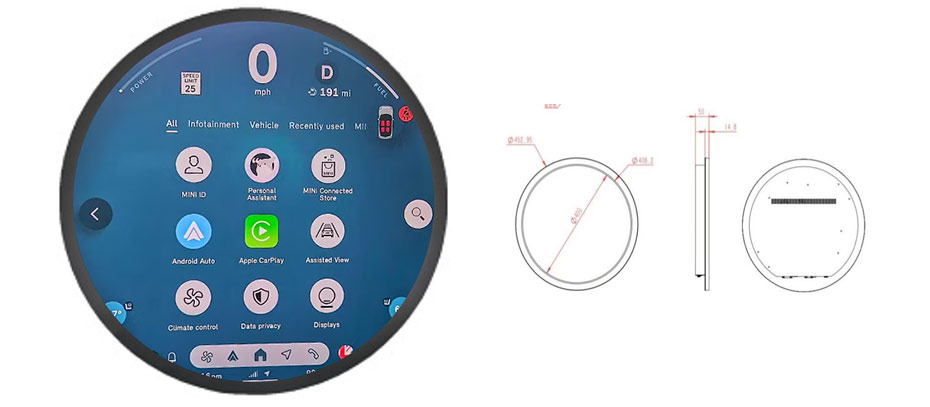

ET157CR01-V is a 15.7-inch high-brightness IPS TFT LCD display featuring a transmissive display mode and LVDS interface. It supports a 960 × 960 resolution, with a typical brightness of 700 cd/m² and wide viewing angles of 89°/89°/89°/89° (L/R/U/D). The display has a large square active area of 400.032 × 400.032 mm and an outline dimension of 452.95 × 452.95 mm. It is designed for operation in temperatures from −20 °C to 60 °C. This model does not include touch functionality.
Outdoor High Brightness Displays Technology
YOURITECH. Comprehensive Manufacturing of Touchscreen, Driver Board Options
Youritech Driver Board
Youritech's R&D team provides experienced display panel motherboard solutions including industrial-grade and military-grade driver boards,manufacturing and designing industry-standard TTL/LVDS interface/CON driver boards, LCD driver boards/LCD inverters/EDP driver boards/4K driver boards,industrial displays solutions.
Production and Manufacturing
At Youritech, we design and manufacture standard, semi-custom and full custom LCD/OLED display modules,touch screen,driver board,open frame. Contact us today,let our engineering team quickly and accurately feedback you with details.
