15.6 Inch High Brightness LCD Display Overview

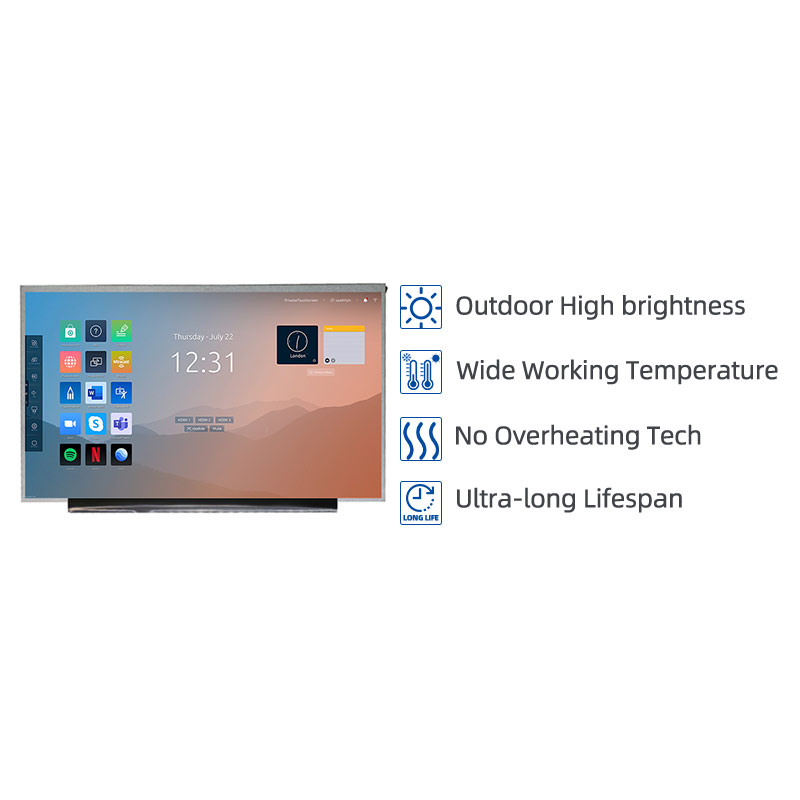

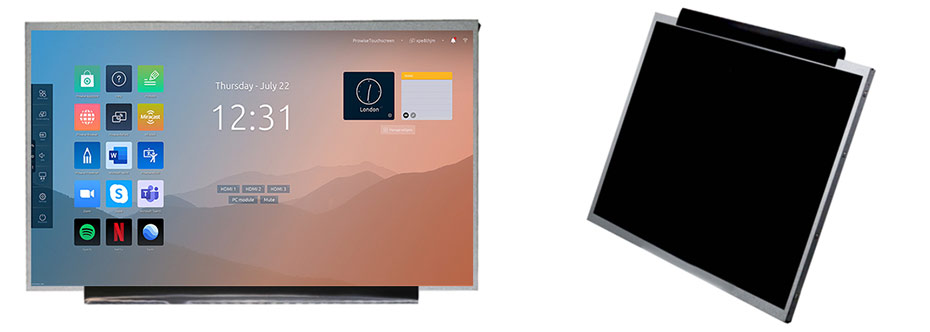

ET156FH01-ZKT is a 15.6-inch high-brightness IPS TFT LCD display with a transmissive display mode and eDP interface. It offers a Full HD resolution of 1920 × 1080, 1000 cd/m² typical brightness, and wide 80° viewing angles in all directions. The display features an active area of 344.06 × 193.49 mm and an outline dimension of 360 × 222.45 mm. Designed for wide-temperature operation, it supports −30 to 80 °C for both operating and storage conditions and includes capacitive touch functionality.

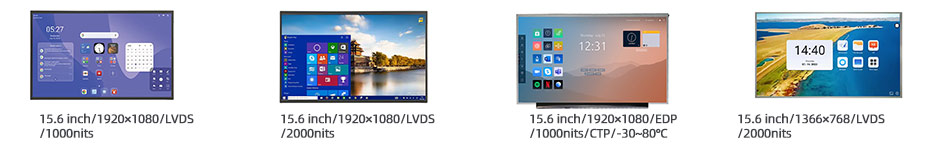

More 15.6 Inch High Brightness Display For Reference
ET156FH06-T (1920x1080, LVDS, 1000nits, -20~70°C, 360x212.3mm)
ET156FH01-R (1920x1080, LVDS, 2000nits, -20~80°C, 359.5x206.74mm)
ET156FH01-ZKT (1920x1080, eDP, 1000nits, -30~80°C, 360x222.45mm, CTP)
ET156XW01-V (1366x768, LVDS, 2000nits, 0~60°C, 363.8x215.9mm)
Outdoor High Brightness Displays Technology
YOURITECH. Comprehensive Manufacturing of Touchscreen, Driver Board Options
Youritech Driver Board
Youritech's R&D team provides experienced display panel motherboard solutions including industrial-grade and military-grade driver boards,manufacturing and designing industry-standard TTL/LVDS interface/CON driver boards, LCD driver boards/LCD inverters/EDP driver boards/4K driver boards,industrial displays solutions.
Production and Manufacturing
At Youritech, we design and manufacture standard, semi-custom and full custom LCD/OLED display modules,touch screen,driver board,open frame. Contact us today,let our engineering team quickly and accurately feedback you with details.
