10.2"-17.3" LCD Display (15.6")

15.6 Inch High Brightness Display 1000nits IPS 1920x1080 LVDS TFT LCD Display

Part No.:ET156FH06-T
Size:15.6″ inch
Resolution:1920x1080
Panel Interface:LVDS
Display mode:Transmissive
Outline Dimension:360x212.3mm
Active Area:344.16x193.59mm
Viewing Angle L/R/U/D:80/80/80/80
Brightness（cd/m2）:1000(Typ.)
Operation / Storage Temp:-20~70°C / -30~80°C
Touch:no

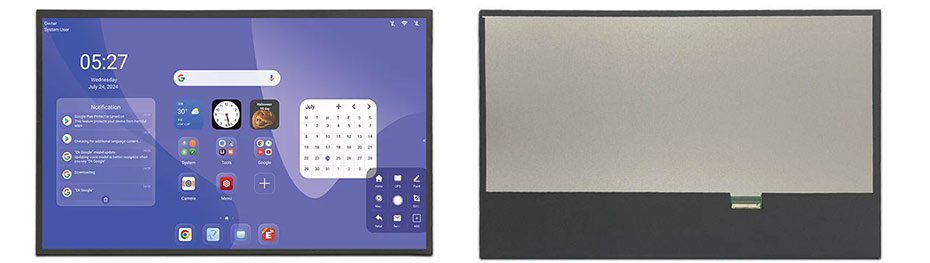

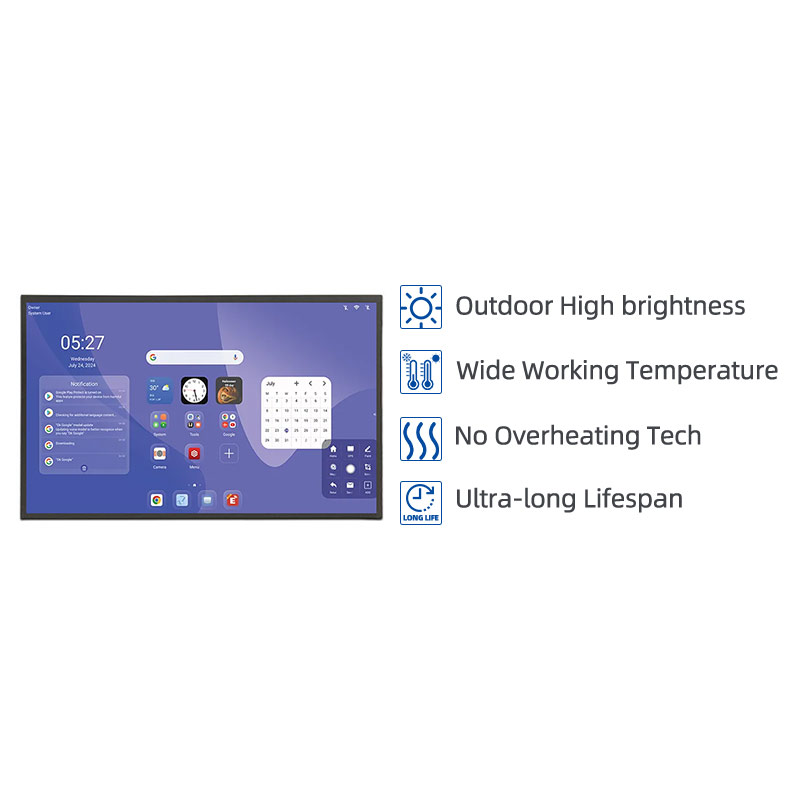

15.6 Inch High Brightness LCD Display Overview
15.6 Inch High Brightness Display 1000nits IPS 1920x1080 LVDS TFT LCD Display.

More 15.6 Inch High Brightness Display For Reference
ET156FH06-T (1920x1080, LVDS, 1000nits, -20~70°C, 360x212.3mm)
ET156FH01-R (1920x1080, LVDS, 2000nits, -20~80°C, 359.5x206.74mm)
ET156FH01-ZKT (1920x1080, eDP, 1000nits, -30~80°C, 360x222.45mm, CTP)
ET156XW01-V (1366x768, LVDS, 2000nits, 0~60°C, 363.8x215.9mm)

Outdoor High Brightness Displays Technology

YOURITECH. Comprehensive Manufacturing of Touchscreen, Driver Board Options

Youritech Driver Board
Youritech's R&D team provides experienced display panel motherboard solutions including industrial-grade and military-grade driver boards,manufacturing and designing industry-standard TTL/LVDS interface/CON driver boards, LCD driver boards/LCD inverters/EDP driver boards/4K driver boards,industrial displays solutions.
