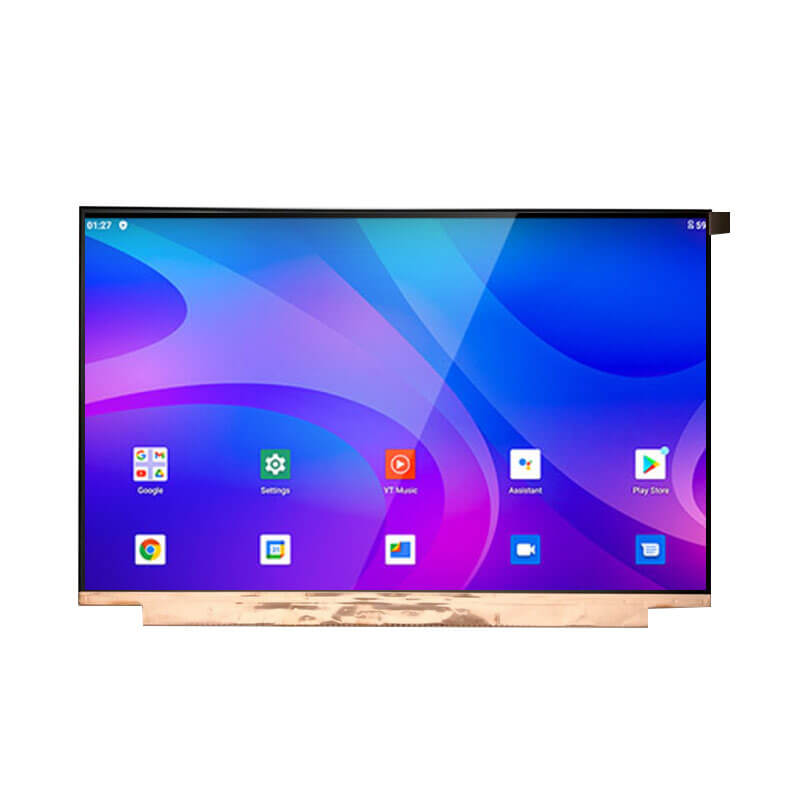

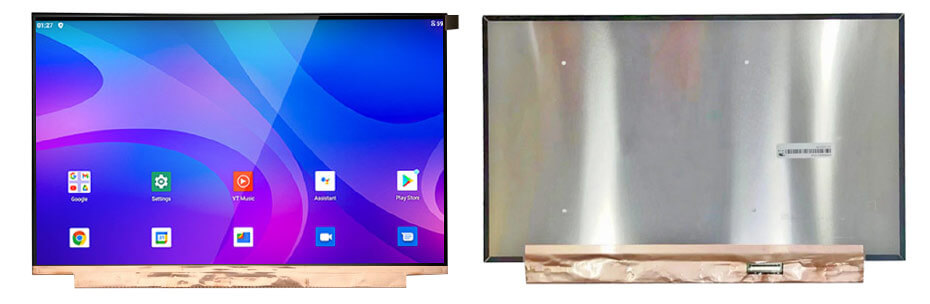

15.6 Inch 4K 3840x2160 LCD Display 1000nits Ultra High Brightness eDP IPS LCD Module

15.6 Inch 4k Display Overview
NE156QUM-NM1 supports display 3840(RGB)×2160 (UHD) with aspect ratio of 16:9 (W:H), whose pixels are arranged in RGB Vertical Stripe, it's pixel density is 283 PPI. It features active area of 344.218(W)×193.622(H) mm, outline size of 350.62(W)×223.67(H)×4.54(D) mm, with surface treament of Antiglare, Hard coating (3H), net weight of 465g (Max.), shape stype of Flat (PCBA Flat, T3.4~4.0mm). As a ADS, Normally Black, Transmissive LCM product, NE156QUM-NM1 can provides 1000 cd/m² display brightness 100000:1 transimissive contrast ratio, 89/89/89/89 (Typ.)(CR≥10) (L/R/U/D) viewing angle, best view direction on Symmetry , and response time of 10 (Typ.)(Tr+Td) ms. Gray scale or the brightness of the sub-pixel is determined with a 8-bit + FRC gray scale signal for each dot, thus presenting a palette of 1.06B colors, also with performance of color gamut 99% (Adobe). This product adopted Mini LED as it's backlight systerm which was placed as Direct light type and have a working life time of 15K hours, With LED Driver. NE156QUM-NM1 utilizes eDP (4 Lanes) as it's signal inputting systerm, which connected by 40 pins Connector with power supply voltage of 3.3V (Typ.). It's typical vertical frame rate (Fv) is 60Hz.

15.6 Inch 4k Display Drawing

More 15.6 Inch 4k Display For Reference
NE156QUM-N64 (LCM, 3840x2160, eDP, 350nits, 0~50°C, 350.52x205.92mm)
NE156QUM-N66 (LCM, 3840x2160, eDP, 500nits, 0~50°C, 350.66x216.12mm)
NE156QUM-N6A (LCM, 3840x2160, eDP, 600nits, 0~50°C, 350.66x216.12mm)
NE156QUM-N6C (LCM, 3840x2160, eDP, 600nits, 0~50°C, 350.72x216.14mm)
NE156QUM-NZ4 (LCM, 3840x2160, eDP, 600nits, 0~50°C, 349.92x215.77mm)
NE156QUM-NM1 (LCM, 3840x2160, eDP, 1000nits, 0~50°C, 350.62x223.67mm)
ATNA56WR06-0 (OLED, 3840x2160, eDP, 440nits, -20~70°C, 348.218x215.572mm)
ATNA56WR14-0 (OLED, 3840x2160, eDP, 440nits, -20~70°C, 348.218x215.662mm)
ATNA56WR01-002 (OLED, 3840x2160, eDP, 400nits, -20~70°C, 348.218x215.572mm)
ATNA56WR18-0 (OLED, 3840x2160, eDP, 440nits, -20~70°C, 348.218x215.662mm)
EF60UBA68.A (OLED, 3840x2160, eDP, 400nits, -20~70°C, 348.48x201.62mm)
ATNA56WR04-0 (OLED, 3840x2160, eDP, 440nits, -20~70°C, 348.218x215.397mm)
