15.3 Inch Stretched Bar Display Overview

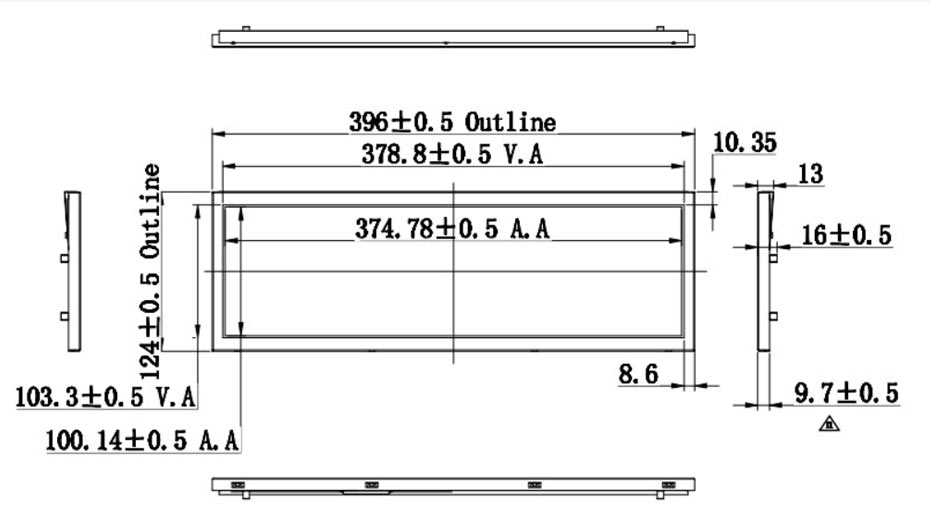

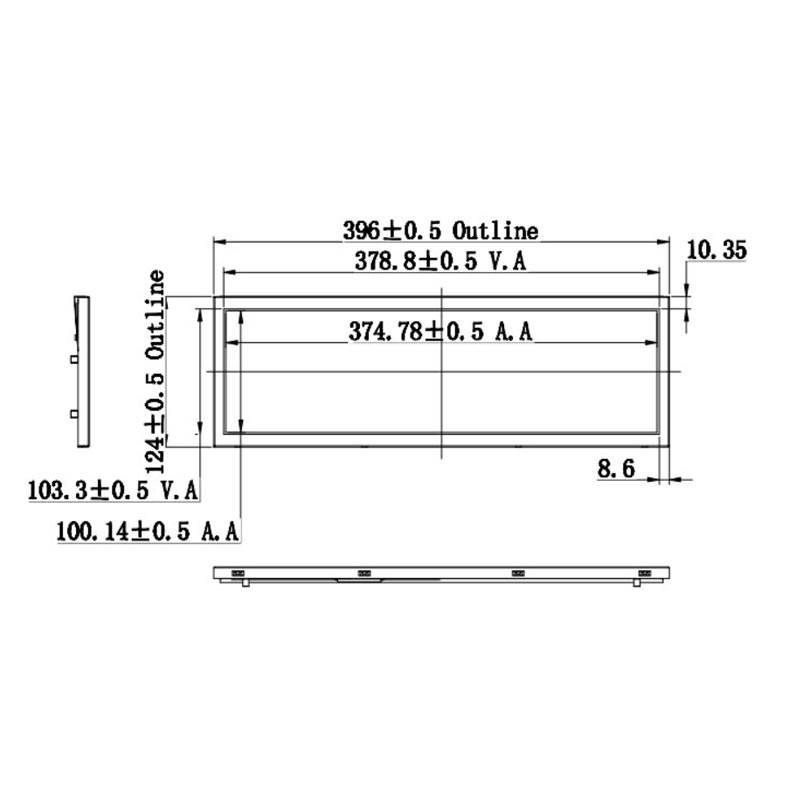

ET153BA01-LY is a 15.3-inch diagonal stretched bar TFT-LCD display product featuring a transmissive IPS panel. It supports a 1280 × 342 resolution, delivering a high-brightness wide-format display ideal for horizontal information presentation and graphical applications, with pixels arranged in a standard RGB sub-pixel structure. The display features an active area of 374.784 (W) × 100.14 (H) mm and an outline dimension of 396 (W) × 124 (H) mm, enabling integration into elongated and space-efficient system designs. ET153BA01-LY adopts an LVDS interface and provides a typical brightness of 1000 cd/m², ensuring excellent visibility in well-lit environments. With ultra-wide viewing angles of 89° in all directions (L/R/U/D), it maintains consistent color and contrast from virtually any viewing position. The module is designed for reliable operation within a 0 to 50°C operating temperature range and a –20 to 60°C storage temperature range. This model does not support touch functionality and is suitable for applications such as industrial control panels, transportation displays, digital signage, and other wide-format embedded display solutions.
YOURITECH. Comprehensive Manufacturing of Touchscreen, Driver Board Options
Youritech Driver Board
Youritech's R&D team provides experienced display panel motherboard solutions including industrial-grade and military-grade driver boards,manufacturing and designing industry-standard TTL/LVDS interface/CON driver boards, LCD driver boards/LCD inverters/EDP driver boards/4K driver boards,industrial displays solutions.
Production and Manufacturing
At Youritech, we design and manufacture standard, semi-custom and full custom LCD/OLED display modules,touch screen,driver board,open frame. Contact us today,let our engineering team quickly and accurately feedback you with details.
