16.3 Inch Stretched Bar Display Overview

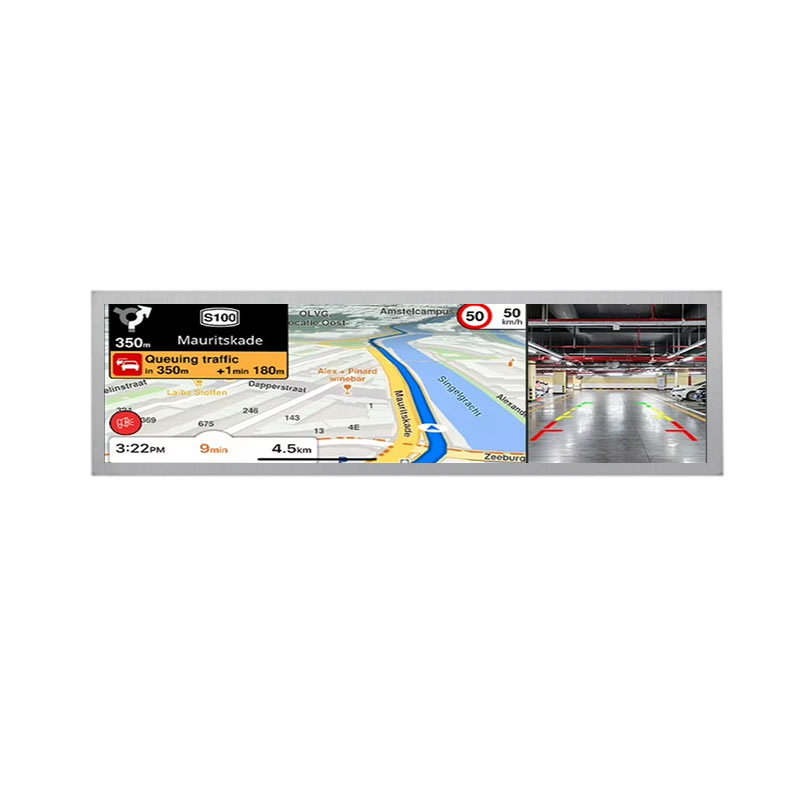

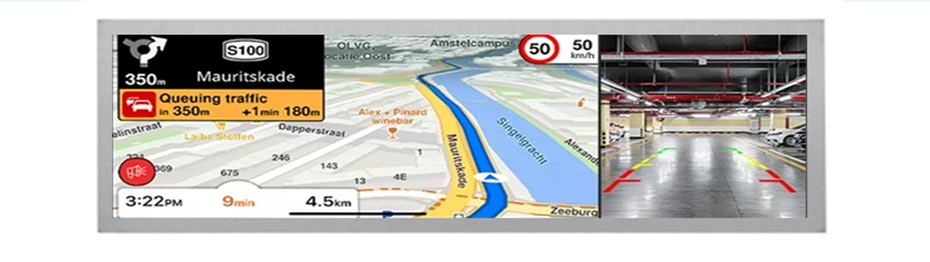

ET163BA01-HT is a 16.3-inch diagonal stretched bar TFT-LCD display product featuring a transmissive IPS panel. It supports a 1366 × 192 resolution, delivering a wide-format, ultra-slim display ideal for horizontal information presentation, with pixels arranged in a standard RGB sub-pixel structure. The display features an active area of 409.8 (W) × 57.6 (H) mm and an outline dimension of 439.8 (W) × 87.6 (H) mm, allowing integration into elongated and space-efficient system designs. ET163BA01-HT adopts an LVDS interface and provides a typical brightness of 500 cd/m², ensuring good visibility in indoor and moderately bright environments. With ultra-wide viewing angles of 89° in all directions (L/R/U/D), it maintains consistent color and contrast across multiple viewing positions. The module is designed for reliable operation within a 0 to 50°C operating temperature range and a –20 to 70°C storage temperature range. This model does not support touch functionality and is well suited for applications such as industrial control panels, transportation displays, digital signage, and other wide-format embedded display solutions.
