14.9 Inch Stretched Bar Display Overview

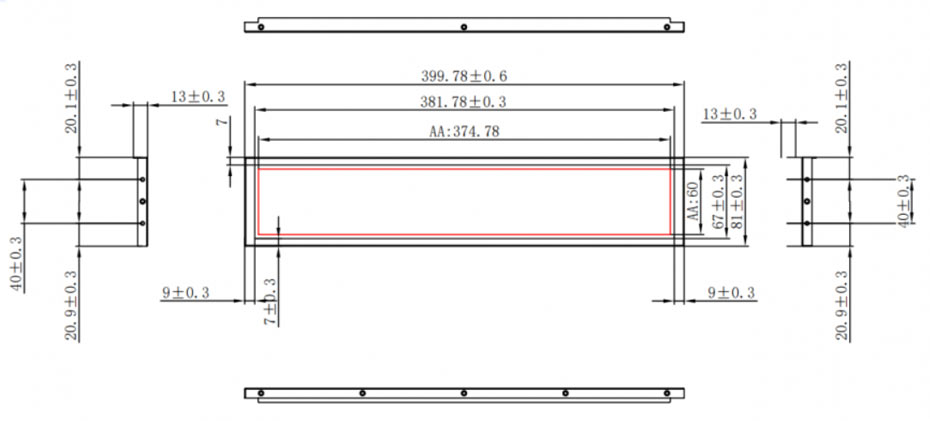

ET149BA01-HY is a 14.9-inch diagonal stretched bar TFT-LCD display product featuring a transmissive IPS panel. It supports a 1280 × 235 resolution, providing an ultra-wide, slim-format display ideal for horizontal information presentation, with pixels arranged in a standard RGB sub-pixel structure. The display features an active area of 374.784 (W) × 60 (H) mm and an outline dimension of 402 (W) × 97.5 (H) mm, allowing integration into elongated and space-efficient system designs. ET149BA01-HY adopts an LVDS interface and delivers a typical brightness of 500 cd/m², ensuring excellent readability in bright ambient conditions. With ultra-wide viewing angles of 89° in all directions (L/R/U/D), it maintains consistent color and contrast performance from multiple viewing positions. The module is designed for reliable operation within a –20 to 70°C operating temperature range and a –30 to 80°C storage temperature range. This model does not support touch functionality and is well suited for applications such as industrial control panels, transportation displays, digital signage, and other embedded wide-format display solutions.
