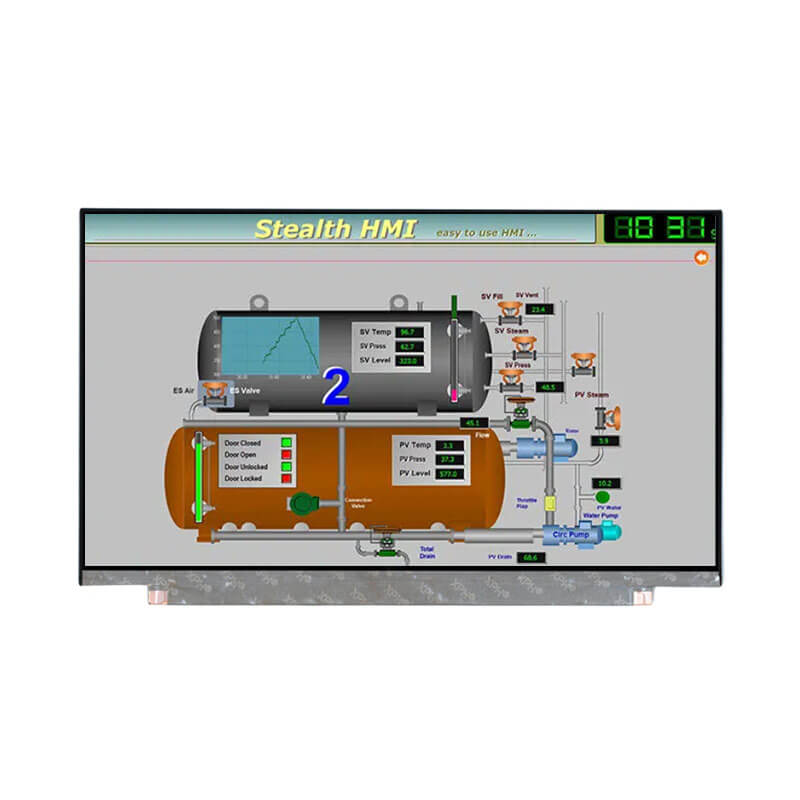

14 Inch 4K 3840x2160 LCD Display eDP 500nits High Brightness IPS LCD Module For 3D Printer

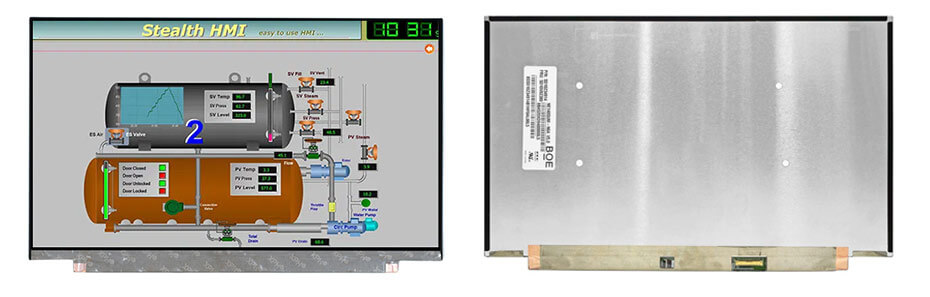

14 Inch 4k Display Overview
NE140QUM-N61 supports display 3840(RGB)×2160 (UHD) with aspect ratio of 16:9 (W:H), whose pixels are arranged in RGB Vertical Stripe, it's pixel density is 315 PPI. As for mechanical detail, it features active area of 309.312(W)×173.988(H) mm, outline size of 315.01(W)×195.67(H)×2.3(D) mm, with surface treament of Antiglare, Hard coating (3H), net weight of 220g (Max.), shape stype of Slim (PCBA Flat, T≤3.2mm). As a ADS, Normally Black, Transmissive LCM product, NE140QUM-N61 can provides 500 cd/m² display brightness 1500:1 transimissive contrast ratio, 89/89/89/89 (Typ.)(CR≥10) (L/R/U/D) viewing angle, best view direction on Symmetry , and response time of 25 (Typ.)(Tr+Td) ms. Gray scale or the brightness of the sub-pixel is determined with a 8-bit + FRC gray scale signal for each dot, thus presenting a palette of 1.06B colors, also with performance of color gamut 100% (DCI-P3). This product adopted 10S8P WLED as it's backlight systerm which was placed as Edge light type (Bottom side) and have a working life time of 15K hours, With LED Driver. NE140QUM-N61 utilizes eDP (4 Lanes) as it's signal inputting systerm, which connected by 40 pins Connector with power supply voltage of 3.3V (Typ.). It's typical vertical frame rate (Fv) is 60Hz.

14 Inch 4k Display Drawing

More 14 Inch 4k Display For Reference
NV140QUM-N61 (LCM, 3840x2160, eDP, 400nits, -20~60°C, 315.01x199.04mm)
NV140QUM-N53 (LCM, 3840x2160, eDP, 500nits, 0~50°C, 315.01x196.14mm)
NV140QUM-N54 (LCM, 3840x2160, eDP, 500nits, 0~50°C, 315.01x186.14mm)
NE140QUM-N61 (LCM, 3840x2160, eDP, 500nits, 0~50°C, 315.01x195.67mm)
B140ZAN02.1 (LCM, 3840x2160, eDP, 500nits, 0~50°C, 305.894x197.746mm)
ATNA40YN04-0 (OLED, 3840x2400, eDP, 400nits, -20~70°C, 305.02x196.24mm)
