13.8 Inch Stretched Bar Display Overview

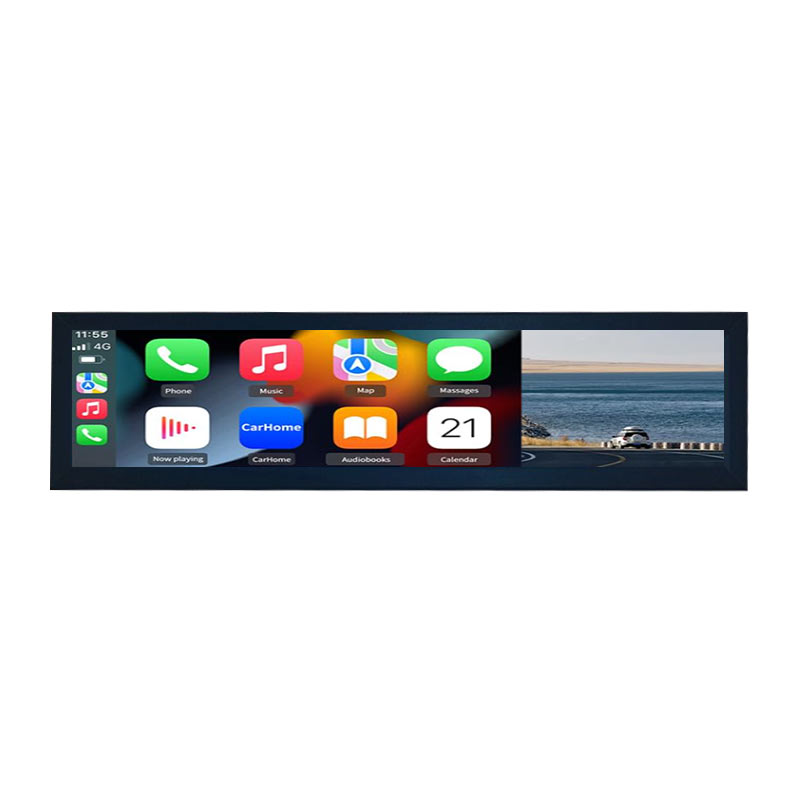

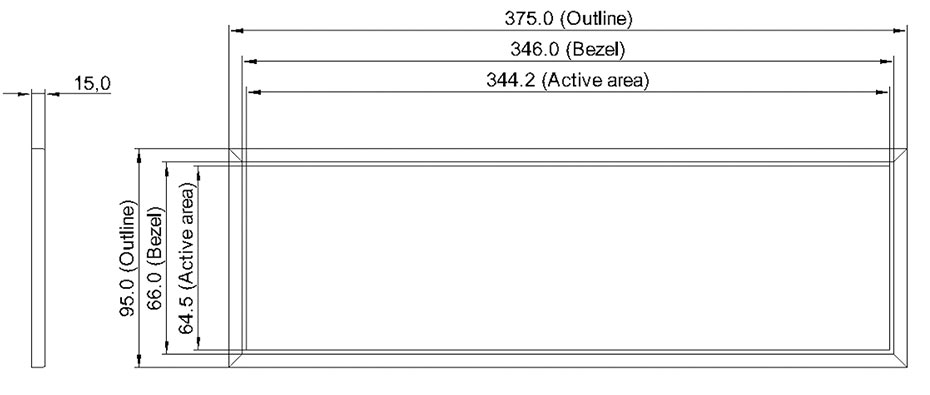

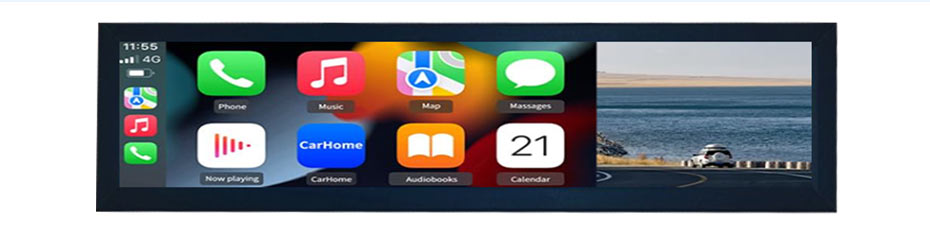

ET138BA01-IL is a 13.8-inch diagonal stretched bar TFT-LCD display product featuring a transmissive IPS panel. It supports a 1366 × 256 resolution, delivering a wide-format display optimized for horizontal information presentation and elongated user interfaces, with pixels arranged in a standard RGB sub-pixel structure. The display features an active area of 344.2 (W) × 64.5 (H) mm and an outline dimension of 375 (W) × 95 (H) mm, enabling straightforward integration into slim and space-efficient system designs. ET138BA01-IL adopts an LVDS interface and provides a typical brightness of 500 cd/m², ensuring good readability in well-lit environments. With wide viewing angles of 85° left/right and 80° up/down (L/R/U/D), it maintains consistent image quality across multiple viewing positions. The module is designed for reliable operation within a –20 to 70°C operating temperature range and a –30 to 80°C storage temperature range. This model does not support touch functionality and is ideal for applications such as industrial control panels, transportation displays, digital signage, and other embedded wide-format display solutions.

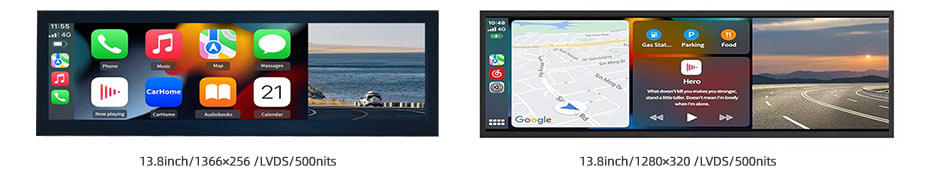

More 13.8 Inch Bar Displays For Reference
ET138BA01-IL (1366x256, LVDS, IPS, 500nits, 0~50°C, 375x95mm)
ET138BA01-YX (1280x320, LVDS, IPS, 500nits, 0~50°C, 357x110mm)
