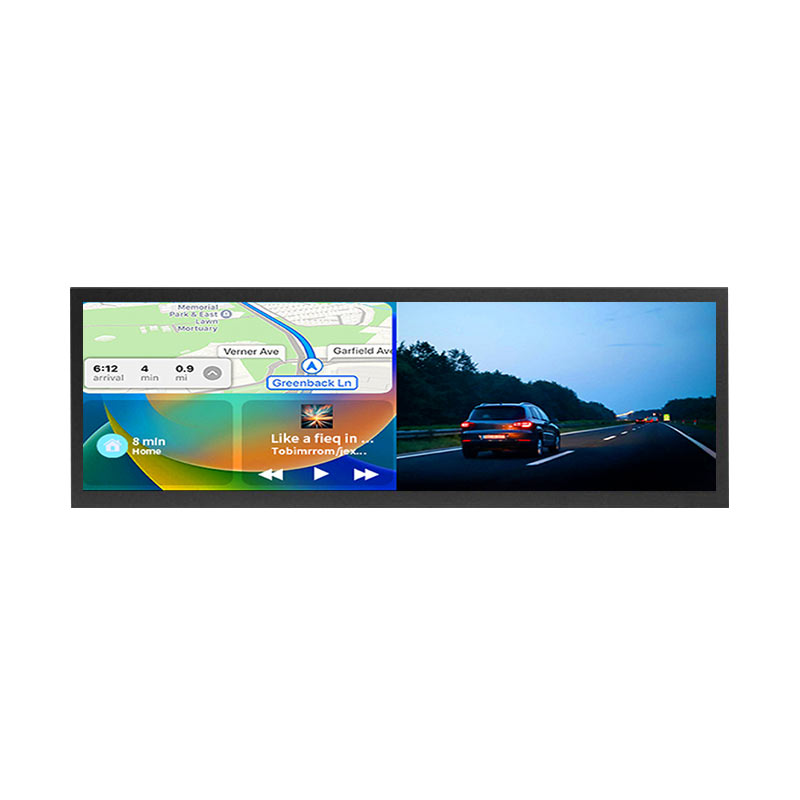

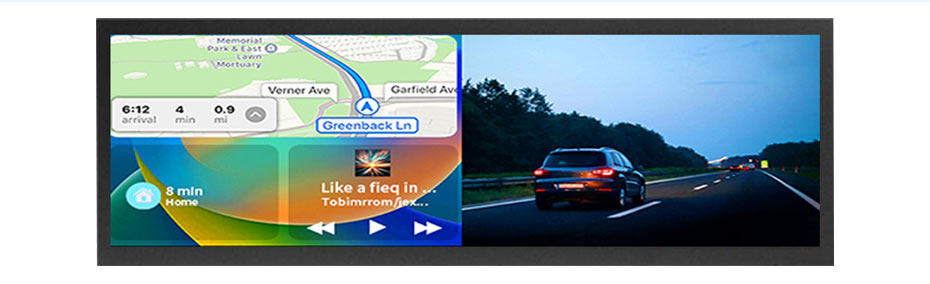

13.6 Inch Stretched Bar Display Overview
ET136BA01-YF is a 13.6-inch diagonal stretched bar TFT-LCD display product featuring a transmissive IPS panel. It supports a 1920 × 540 resolution, providing a high-definition wide-format display ideal for detailed graphics and information-rich applications, with pixels arranged in a standard RGB sub-pixel structure. The display features an active area of 332.48 (W) × 93.4 (H) mm and an outline dimension of 352 (W) × 113 (H) mm, allowing for easy integration into elongated and space-efficient system designs. ET136BA01-YF adopts an LVDS interface and delivers a typical brightness of 500 cd/m², ensuring clear visibility in indoor and moderately bright environments. With wide viewing angles of 85° in all directions (L/R/U/D), it maintains consistent color and contrast from multiple viewing positions. The module is designed for reliable operation within a 0 to 50°C operating temperature range and a –20 to 60°C storage temperature range. This model does not support touch functionality and is suitable for applications such as industrial equipment displays, control panels, transportation systems, and digital information signage.
YOURITECH. Comprehensive Manufacturing of Touchscreen, Driver Board Options
Youritech Driver Board
Youritech's R&D team provides experienced display panel motherboard solutions including industrial-grade and military-grade driver boards,manufacturing and designing industry-standard TTL/LVDS interface/CON driver boards, LCD driver boards/LCD inverters/EDP driver boards/4K driver boards,industrial displays solutions.
Production and Manufacturing
At Youritech, we design and manufacture standard, semi-custom and full custom LCD/OLED display modules,touch screen,driver board,open frame. Contact us today,let our engineering team quickly and accurately feedback you with details.
