10.2"-17.3" LCD Display (12.9")

12.95 Inch High Brightness Display 700nits 1200x1920 MIPI TFT LCD Display With In-Cell Touch

Part No.:ET129BA01-GLT
Size:12.95″ inch
Resolution:1200x1920
Panel Interface:MIPI
Display mode:Transmissive

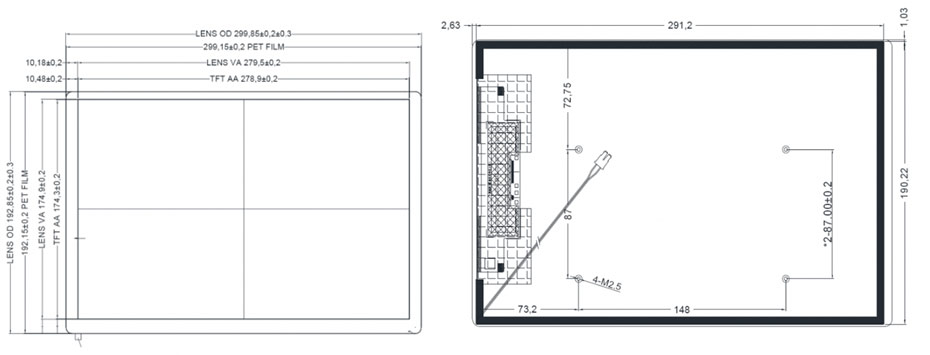

Outline Dimension:190.3x291.2mm
Active Area:174.31x278.9mm
Viewing Angle L/R/U/D:85/85/85/85
Brightness（cd/m2）:700(Typ.)
Operation / Storage Temp:-20~70°C / -30~80°C
Touch:yes

12.95 Inch High Brightness LCD Display Overview
ET129BA01-GLT is a 12.95-inch high-brightness TFT LCD display with a 1200 × 1920 resolution in transmissive mode. It features a MIPI interface and typical brightness of 700 cd/m², offering wide viewing angles of 85° left, right, up, and down. The display has an active area of 174.31 × 278.9 mm and an outline dimension of 190.3 × 291.2 mm. It supports operation from −20 to 70 °C and storage from −30 to 80 °C, and includes in-cell capacitive touch functionality.

Outdoor High Brightness Displays Technology

YOURITECH. Comprehensive Manufacturing of Touchscreen, Driver Board Options

Youritech Driver Board
Youritech's R&D team provides experienced display panel motherboard solutions including industrial-grade and military-grade driver boards,manufacturing and designing industry-standard TTL/LVDS interface/CON driver boards, LCD driver boards/LCD inverters/EDP driver boards/4K driver boards,industrial displays solutions.
