10.2"-17.3" LCD Display (13.3")

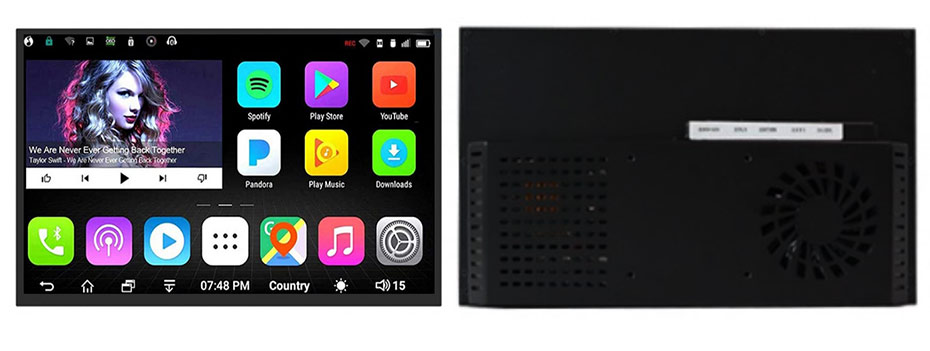

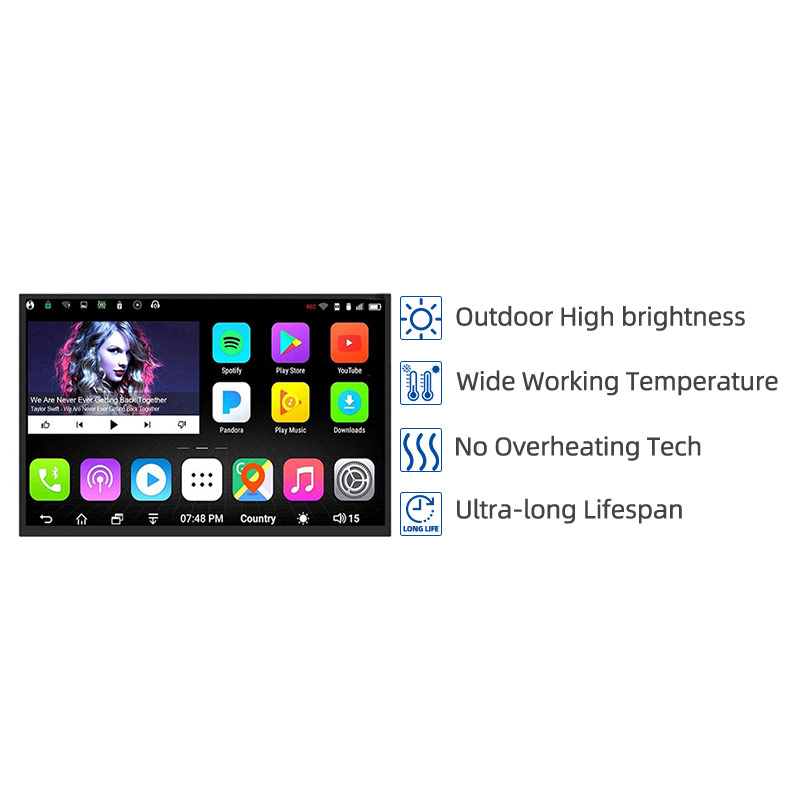

13.3 Inch High Brightness Display 2000nits 3840x2160 eDP TFT LCD Display

  • Part No.:ET133UH01-R
  • Size:13.3″ inch
  • Resolution:3840x2160
  • Panel Interface:eDP
  • Display mode:Transmissive
  • Outline Dimension:313x189.5mm
  • Active Area:293.76x165.024mm
  • Viewing Angle L/R/U/D:89/89/89/89 (Typ.)
  • Brightness（cd/m2）:2000(Typ.)
  • Operation / Storage Temp:0~50°C / -10~60°C
  • Touch:no
Get a quote

13.3 Inch High Brightness LCD Display Overview
13.3 Inch High Brightness Display 2000nits 3840x2160 eDP TFT LCD Display.

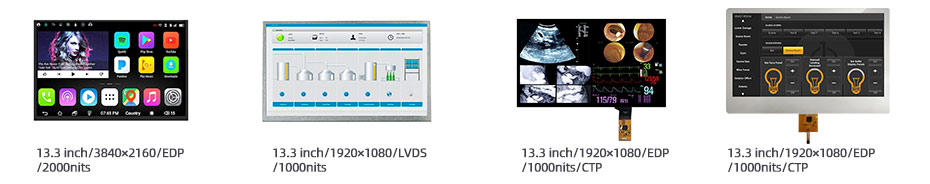

More 13.3 Inch High Brightness Display For Reference
ET133UH01-R (3840x2160, eDP, 2000nits, 0~50°C, 313x189.5mm)
ET133FH01-R (1920x1080, LVDS, 1000nits, -20~70°C, 309.7x184.1mm)
ET133FH03-TT (1920x1080, eDP, 1000nits, -20~70°C, 308x183.45mm, CTP)
ET133FH01-TST (1920x1080, TTL, 1000nits, -20~70°C, 306.2x190.62mm, CTP)

Outdoor High Brightness Displays Technology

YOURITECH. Comprehensive Manufacturing of  Touchscreen, Driver Board Options

Youritech Driver Board
Youritech's R&D team provides experienced display panel motherboard solutions including industrial-grade and military-grade driver boards,manufacturing and designing industry-standard TTL/LVDS interface/CON driver boards, LCD driver boards/LCD inverters/EDP driver boards/4K driver boards,industrial displays solutions.

Production and Manufacturing
