12.8 Inch High Brightness Display 1100nits 1920x1080 LVDS Wide Temperature TFT LCD Display

Part No.:ET128FH01-KD
Size:12.8″ inch
Resolution:1920x1080
Panel Interface:LVDS
Display mode:Transmissive

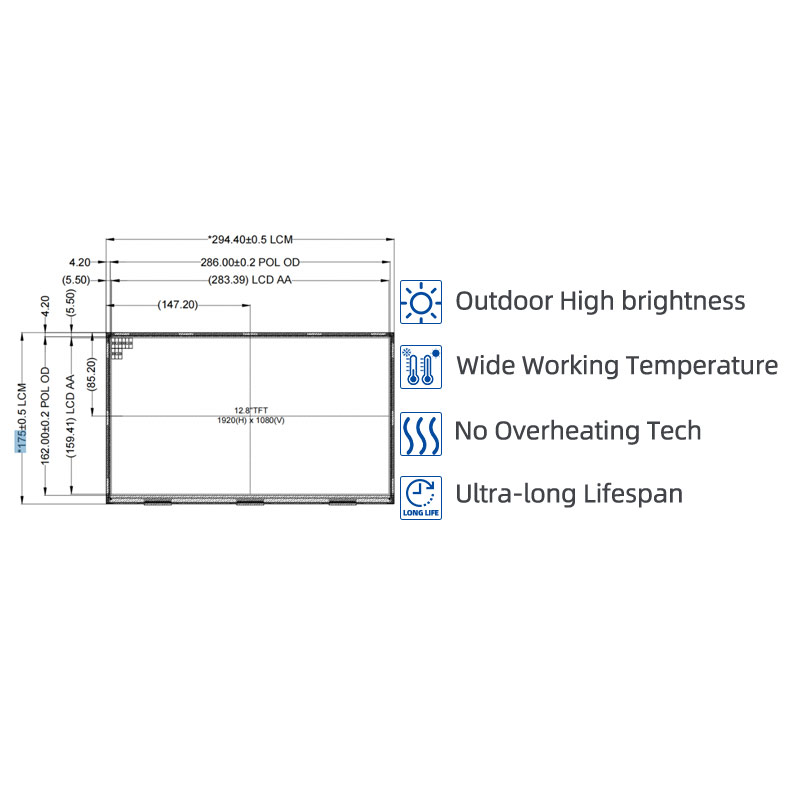

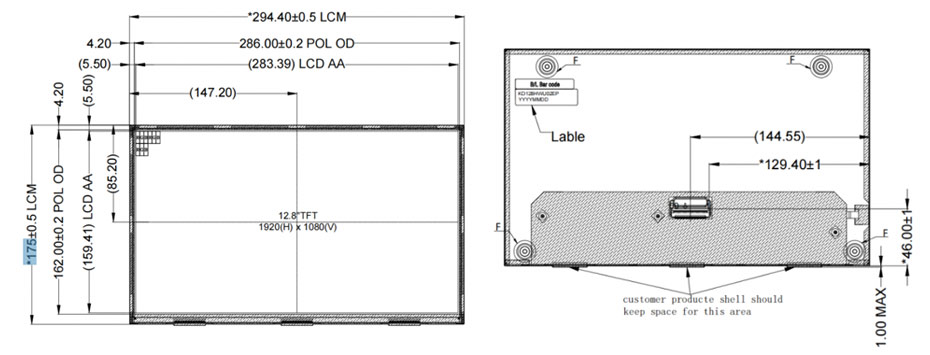

Outline Dimension:294.4x175mm
Active Area:283.39x159.41mm
Viewing Angle L/R/U/D:85/85/85/85
Brightness（cd/m2）:1100(Typ.)
Operation / Storage Temp:-30~85°C / -40~90°C
Touch:no

12.8 Inch High Brightness LCD Display Overview
ET128FH01-KD is a 12.8-inch high-brightness TFT LCD display featuring a 1920 × 1080 resolution in transmissive mode. It uses an LVDS interface and delivers a typical brightness of 1100 cd/m² with wide viewing angles of 85° left, right, up, and down. The display has an active area of 283.39 × 159.41 mm and an outline dimension of 294.4 × 175 mm. It supports operation from −30 to 85 °C and storage from −40 to 90 °C, and it does not include touch functionality.

Outdoor High Brightness Displays Technology

YOURITECH. Comprehensive Manufacturing of Touchscreen, Driver Board Options

Youritech Driver Board
Youritech's R&D team provides experienced display panel motherboard solutions including industrial-grade and military-grade driver boards,manufacturing and designing industry-standard TTL/LVDS interface/CON driver boards, LCD driver boards/LCD inverters/EDP driver boards/4K driver boards,industrial displays solutions.
