10.4 Inch Stretched Bar Display 440x1920 IPS 500nits High Brightness MIPI TFT LCD Display

10.4 Inch Stretched Bar Display Overview

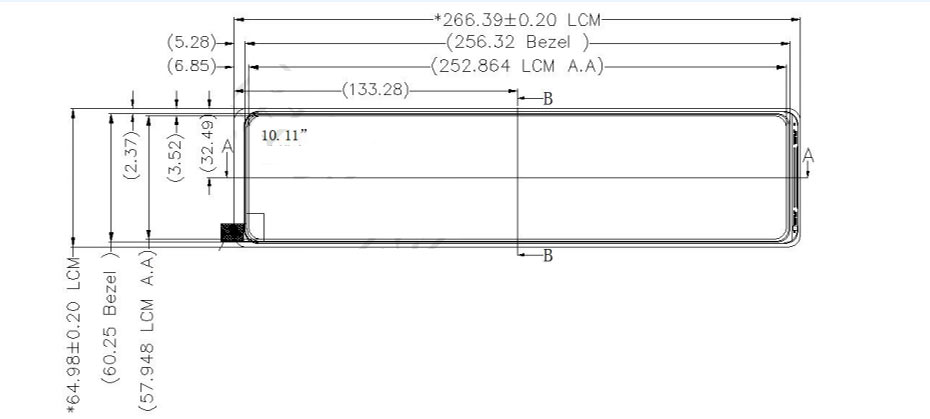

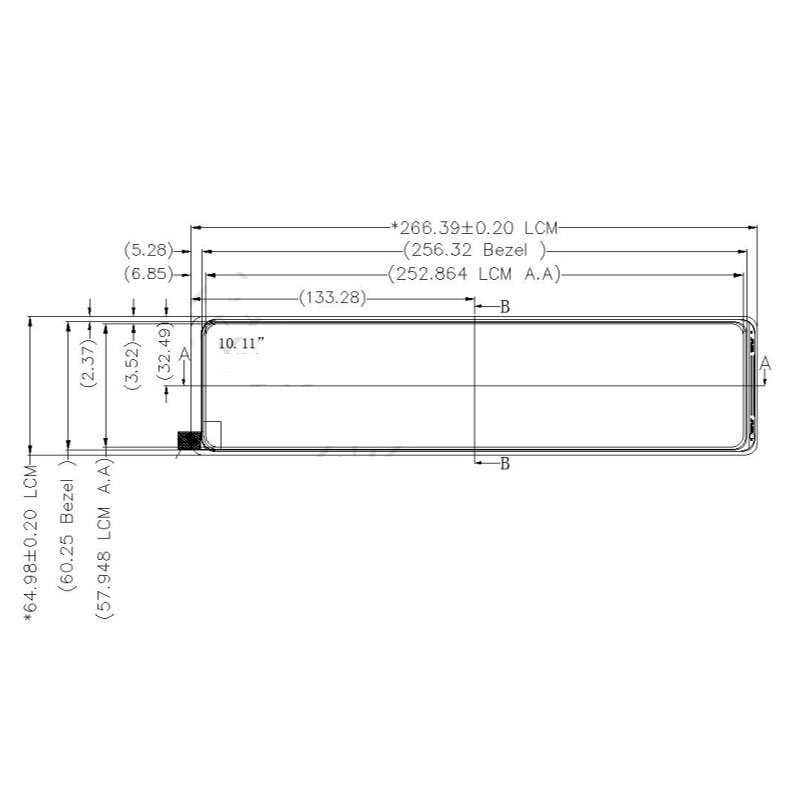

ET104BA01-QV is a 10.4-inch diagonal stretched bar TFT-LCD display product featuring a transmissive IPS panel. It supports a 440 × 1920 resolution, delivering a vertical ultra-wide display format ideal for portrait-oriented information presentation, with pixels arranged in a standard RGB sub-pixel structure. The display features an active area of 57.948 (W) × 252.864 (H) mm and a compact outline dimension of 64.98 (W) × 266.39 (H) mm, enabling slim and space-saving vertical system designs. ET104BA01-QV adopts a MIPI interface and provides a typical brightness of 500 cd/m², ensuring clear visibility under high ambient lighting conditions. With wide viewing angles of 80° in all directions (L/R/U/D), it maintains consistent image quality from multiple viewing positions. The module is designed for reliable operation within a –20 to 70°C operating temperature range and a –30 to 80°C storage temperature range. This model does not support touch functionality and is well suited for applications such as smart appliances, industrial control systems, transportation displays, and vertically oriented information signage.

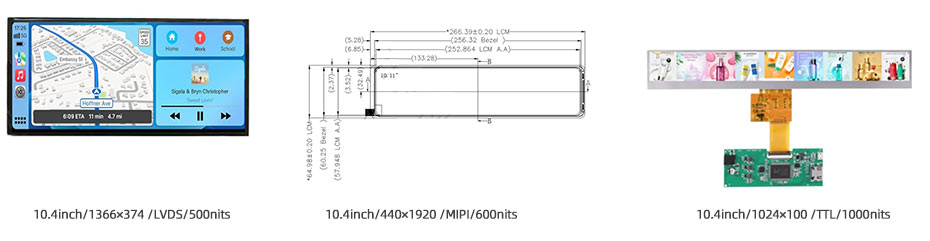

More 10.4 Inch Bar Displays For Reference
ET104BA01-YH (1366x374 , LVDS, IPS, 500nits, 0~50°C, 276x85mm)
ET104BA01-QV (440x1920, MIPI, IPS, 500nits, -20~70°C, 64.98x266.39mm)
ET104BA01-PV (1024x100, TTL, IPS, 1000nits, -20~70°C, 274.92x41.5mm)

YOURITECH. Comprehensive Manufacturing of  Touchscreen, Driver Board Options

Youritech Driver Board
Youritech's R&D team provides experienced display panel motherboard solutions including industrial-grade and military-grade driver boards,manufacturing and designing industry-standard TTL/LVDS interface/CON driver boards, LCD driver boards/LCD inverters/EDP driver boards/4K driver boards,industrial displays solutions.
