6"-15.6" Touch Screen (12.3“)

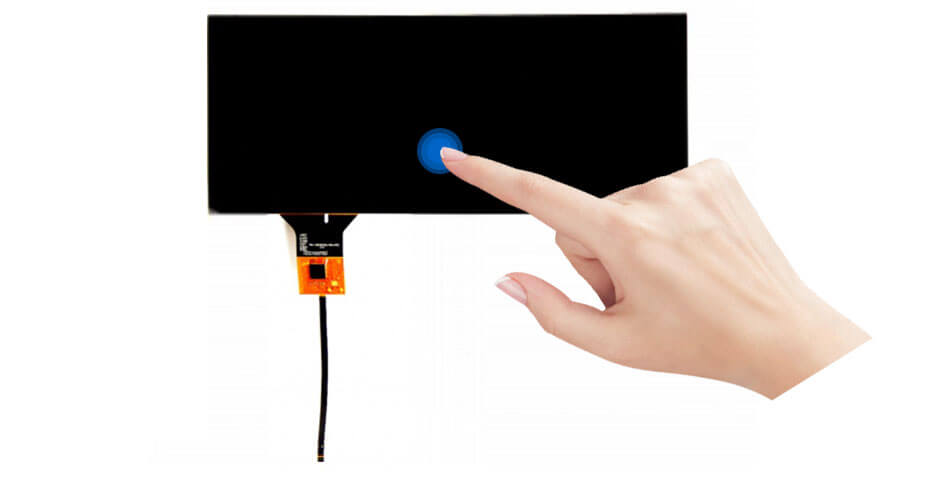

12.3 Inch Capacitive Touch Screen G+G I2C Bar Capacitive Touch Display

Part No.:ET123CTP02
Size:12.3″ inch
Resolution:Optional
Panel Interface:I2C
Display mode:PCAP
Outline Dimension:315.49x133.49mm
Active Area:292.03x109.51mm
Viewing Angle L/R/U/D:Full view
Brightness（cd/m2）:Optional
Operation / Storage Temp:-20~60°C / -30~70°C
Touch:yes

12.3 Inch Capacitive Touch Screen
Product structure: Glass/Glass
Surface hardness: Hard coating (6H)
Touch Points: Multi-touch
Interface Type: I2C
Display Area: 292.03x109.51 mm
Outline Dim.: 315.49x133.49 mm
Operation Temperature: -20 ~ 60°C
Storage Temperature: -30 ~ 70°C

The touch screens can be matched and integrated by all kinds of display panels

SPECIALTREATMENT
SUPPORT AG / AR / AF GLASS(ANTI-GLARE, ANT-REFLECTIVE, ANT-FINGERPRINT)
